Patek Philippe: 23-300 Disassembly final…

My apologies for the quality and erratic order of the photographs.
13Y
By: dynhm6
1

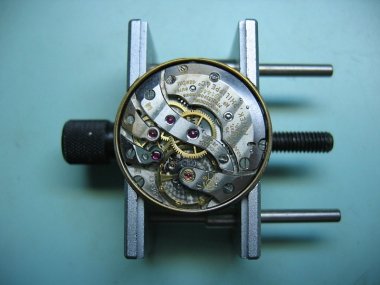

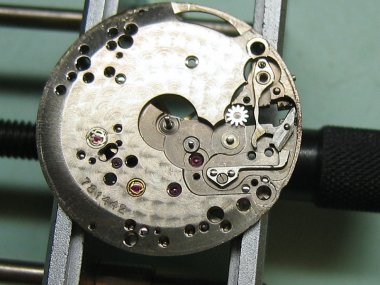

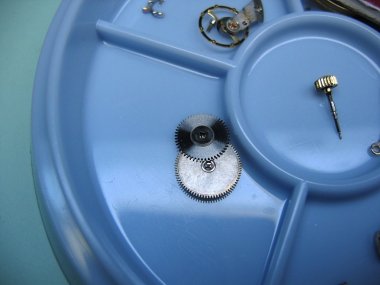

Patek Philippe: 23-300 Disassembly continued…

23-300 Disassembly continued… Continued next message…
13Y
By: dynhm6
1

Patek Philippe: I always do (take pics)…

…I'm awaiting a new detent and to find out whether I can use Rolex oils on the 23-300 (the Patek service manual specs some oils I'm not familiar with, but, generally, I've found that if it's good enough for Rolex....), so I don't have any after (clean/assembled) photographs, but here're a bunch from
13Y
By: dynhm6
1

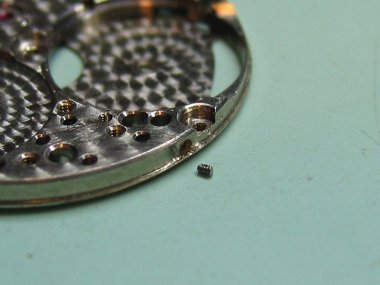

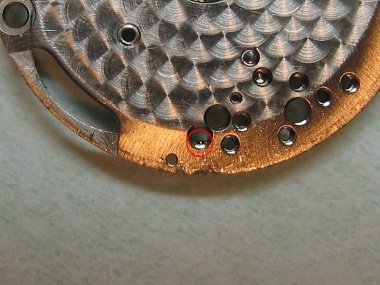

Patek Philippe: I was able to remove the remainder of the screw by…

…modifying an extra screwdriver similar to the way you suggested and, then, I was able to back the screw piece out: So, case solved. Thank you!
13Y
By: dynhm6
0

Patek Philippe: Many thanks, Anthony, but…

…I ended up removing a coupla bridges and pressing the dial foot out from the front of the plate: I'll have to sort out the remaining bit o' screw that's still lodged in the plate, but, at least, now I can repair the watch's original problem and complete the overhaul. Thanks again for your input!
13Y
By: dynhm6
2

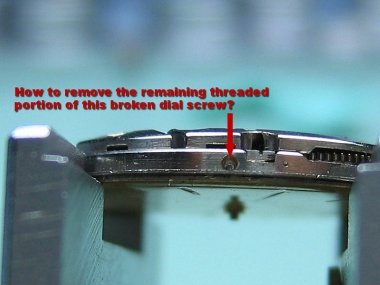

Patek Philippe: Best way to remove the threaded portion of a broken dial screw?

I have experience working on Rolex, but this is only my 2nd Patek. It's a 23-300 and, wouldn't you know it, right off the bat, I'm foiled by this broken dial screw (the head is missing and only the threaded portion of the screw remains in the plate): Since the dial's stuck onto the plate due to the
13Y
By: dynhm6
1
