sonseik
70
Crown locking concept.!!
Hello ~
Let me try to share new concept about crown locking system.!!
Have you ever seen this system or similar ?????????/
and do you think..........Good or Bad ????????
I am not good at English so... I try to explain by drawing..

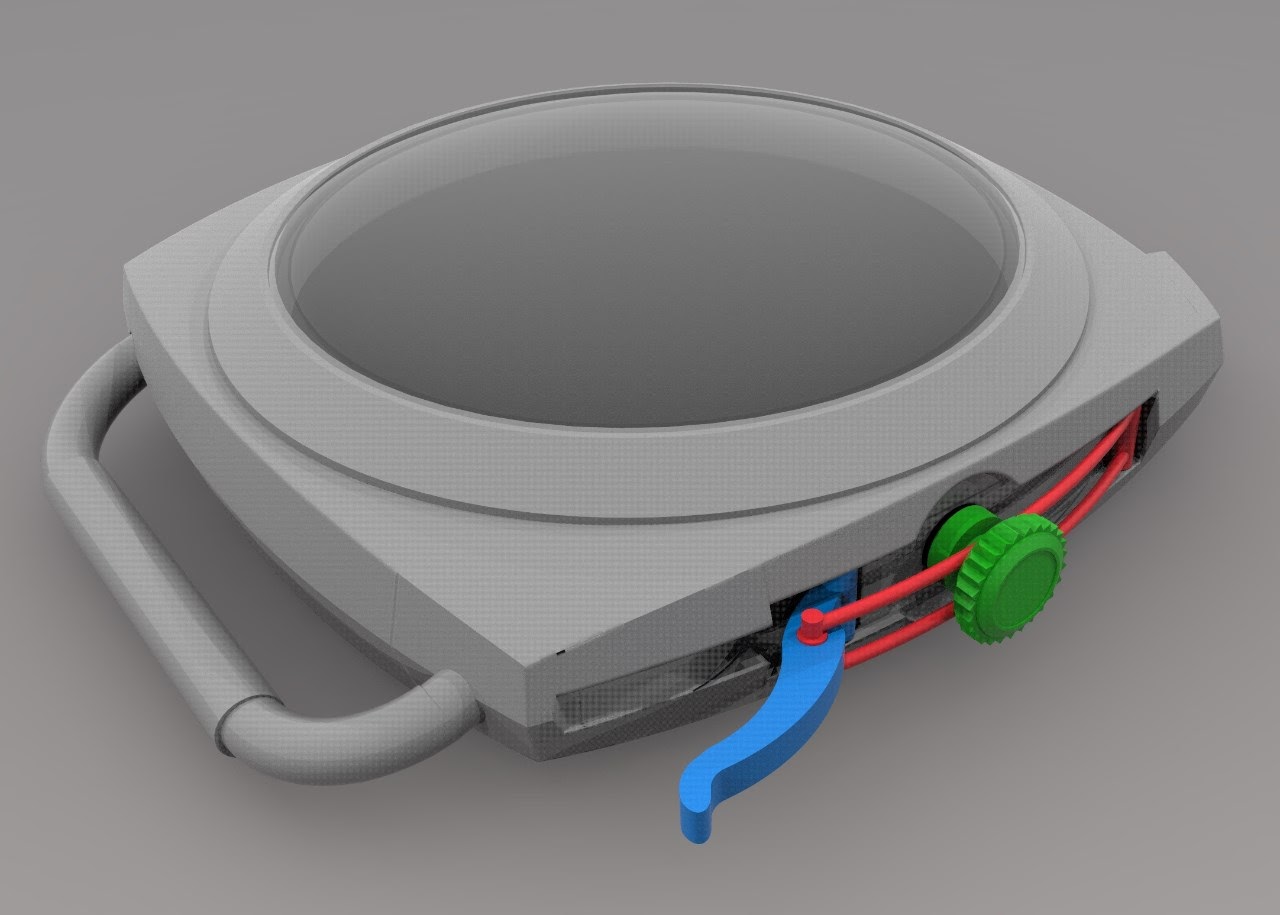

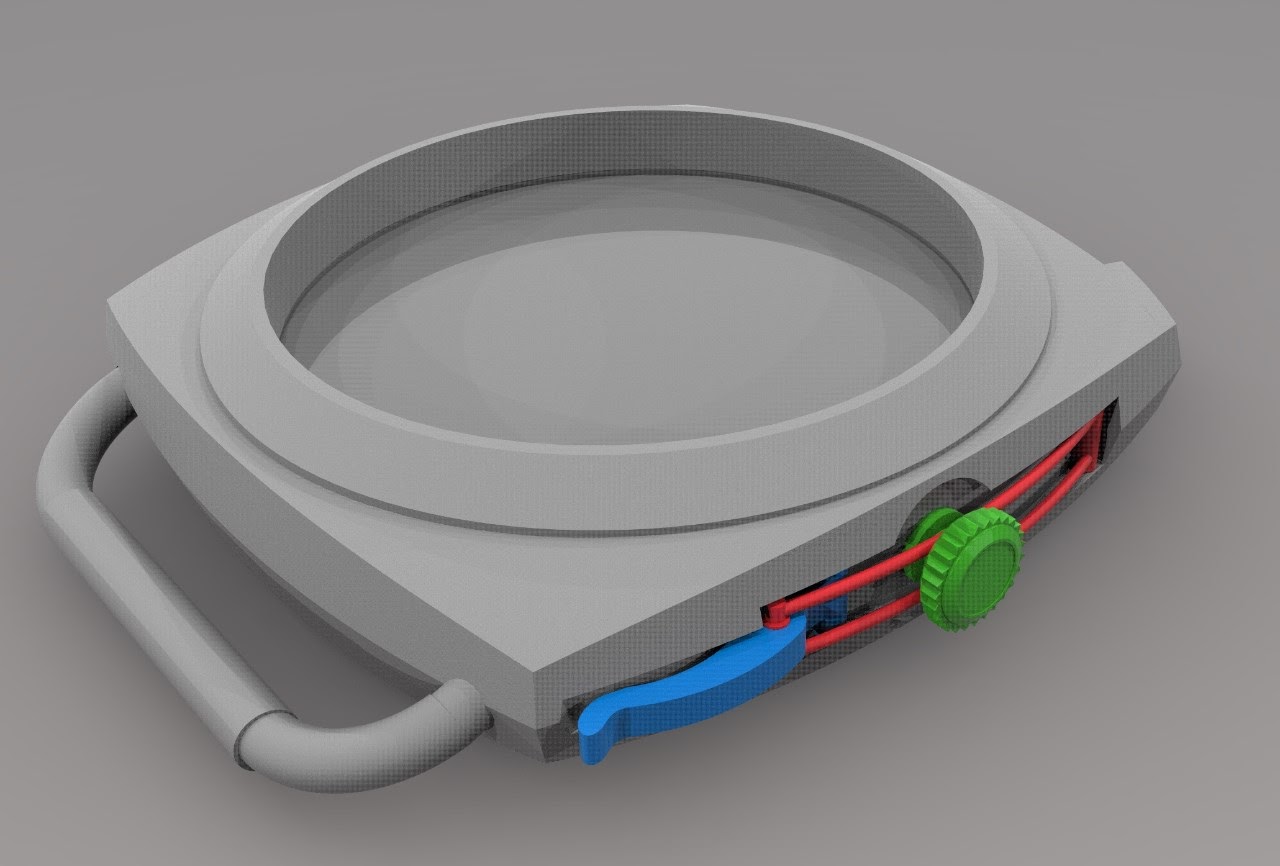

Crown Locking Position

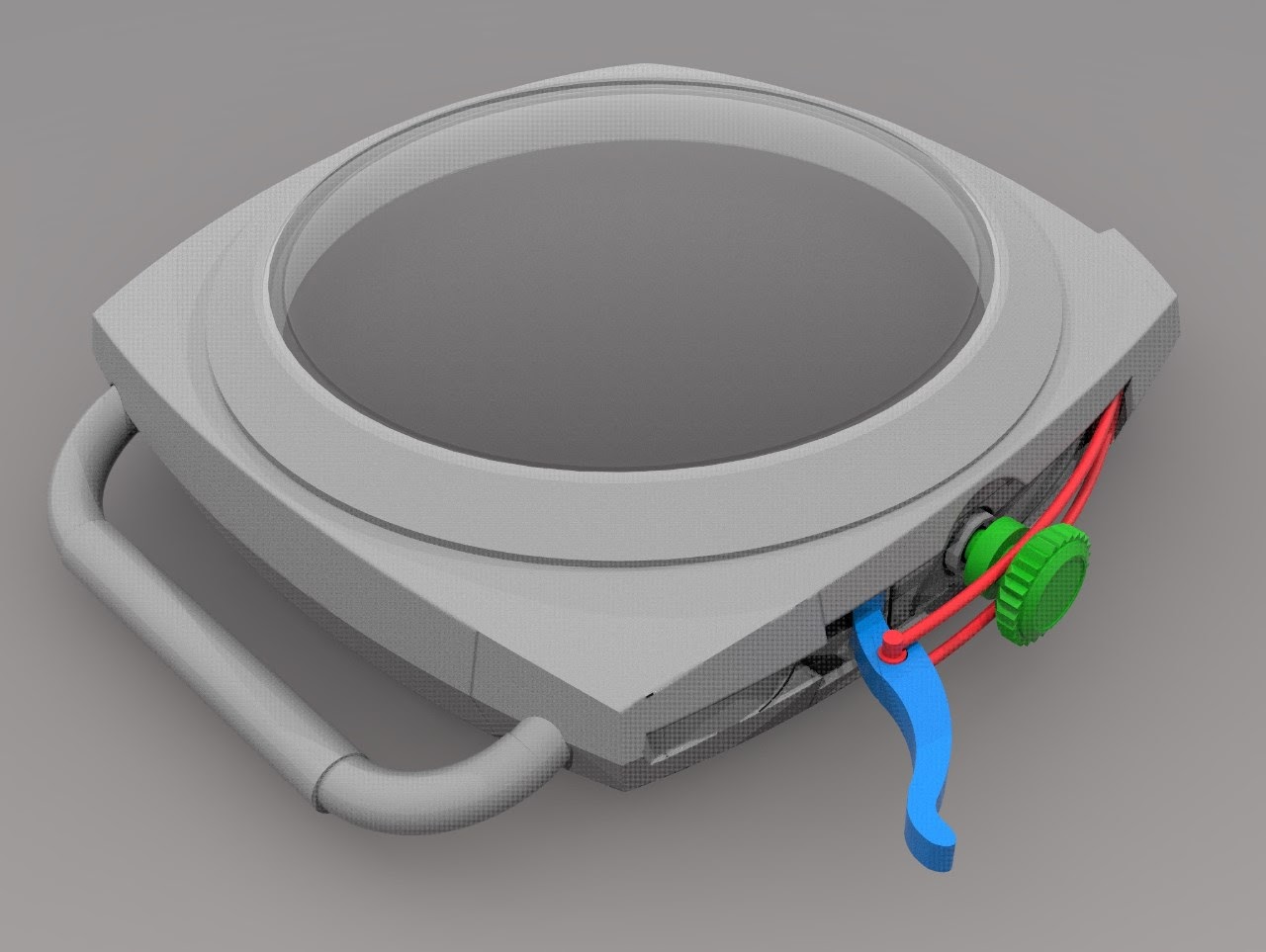

Just open the lever= Winding Position

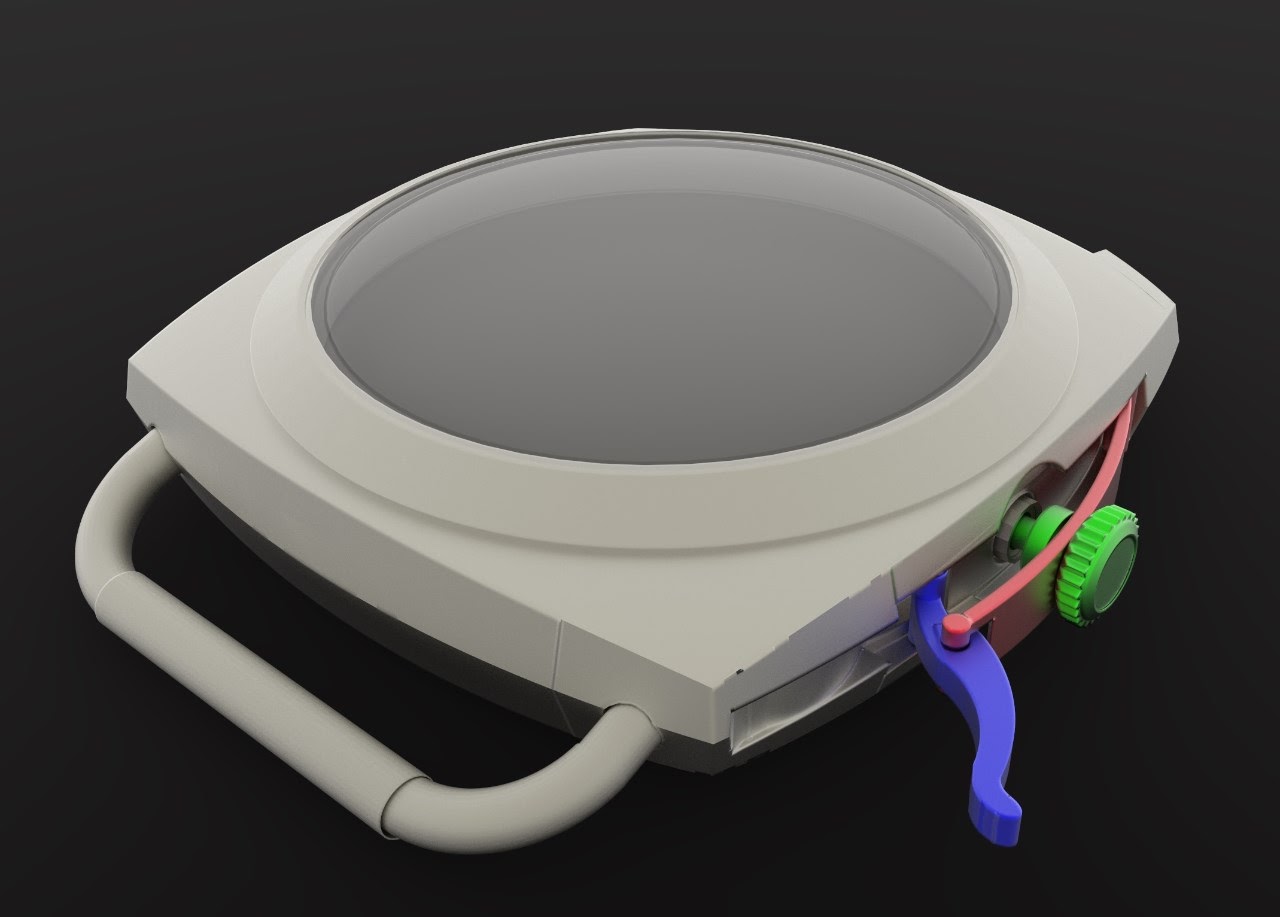

Open the lever more= Time setting Position (I can make crown pull out without touch the crown)
here is a GIF animation for understand.
Thank you for read.~ have a good day.
Crown locking concept.!!
Hello ~ Let me try to share new concept about crown locking system.!! Have you ever seen this system or similar ?????????/ and do you think..........Good or Bad ???????? I am not good at English so... I try to explain by drawing.. Crown Locking Position J...
I like the concept. Two areas that would need consideration : 1. Could the lever catch on anything when in a locked position opening the crown inadvertently ? 2. The lever would need to
have a maximum reach that does not allow the user to extend beyond the 2nd crown setting damaging the crown stem. Hope this helps. Best rgds Will.
very thank you~~ attach image.~
1. there is the way to hold the crown by lever. 2. I will try to find good way~~ thank you very much ...
Must make sure the recess for the lever head is flushed
Against the side case. Otherwise, may get caught in all sorts of clothing or hooked accidentally onto other surfaces. Great idea!! Best, Horo
fragile for me and too close to the panerai lever crown system
The problem with a lever crown and with your system in case of extreme shock against a rock for example, the lever breaks and the winding stem and what retains it can fall. No real warranty of absolute watertightness and water resistance. The best crown s...
thank you your advice~~
I agree with you, screw crown is very nice.~ but also has disadvantage.! 1. I have many experience screw line damaged. 2. screw crown is not good with manual winding movement.! when crown open, stem is pull out(time setting position) sometimes..... and yo...
I will disagree with you regarding the screw down crown
The older Rolex 6238/6239/62363/6265daytonas still have their crowns intact on most of them, same comment goes with Britscar/Jenny Sealab/Haste Carribean Deluxe/Ollech & Wajs Astrochron ref 2003 diving chronos. All were made with enough solid screw line t...
Thank you for advice~
If you are uncomfortable, i am sorry... i just want to say....i think all kind of system has advantage and disadvantage at same time.!!!
I like it.
It would require some practical tweaking and extensive testing, but i see potential. Personally, i don't take any watches even near water, so this system has no use for me, but objectively, this might be useful. And i hate the screw down crowns - the unce...
Latch idea is nice!
I agree it's similar to Panerai Luminor system, but in that case the guard is obtrousive and winding is difficult, You should manage to keep it flush with the case. It would be nice to feel the positional clicks: locked, winding, setting. I think it's als...
I like the concept!
And imo it's not like the Panerai system because that's only a protective system and not an active system like your concept.
