Technical Draws of the Duo Metre.
" One Watch, 2 Brains " says the ad...
I found these draws in my H.D, and wanted to share them with you, as we spoke a lot about the Duo Metre, these last months, and to beeter understand how it works.
Here are the pics of the movement:
The Balance Wheel ( the Heart ):
The 2 Barrels ( The 2 Brains ):
The Chrono elements:

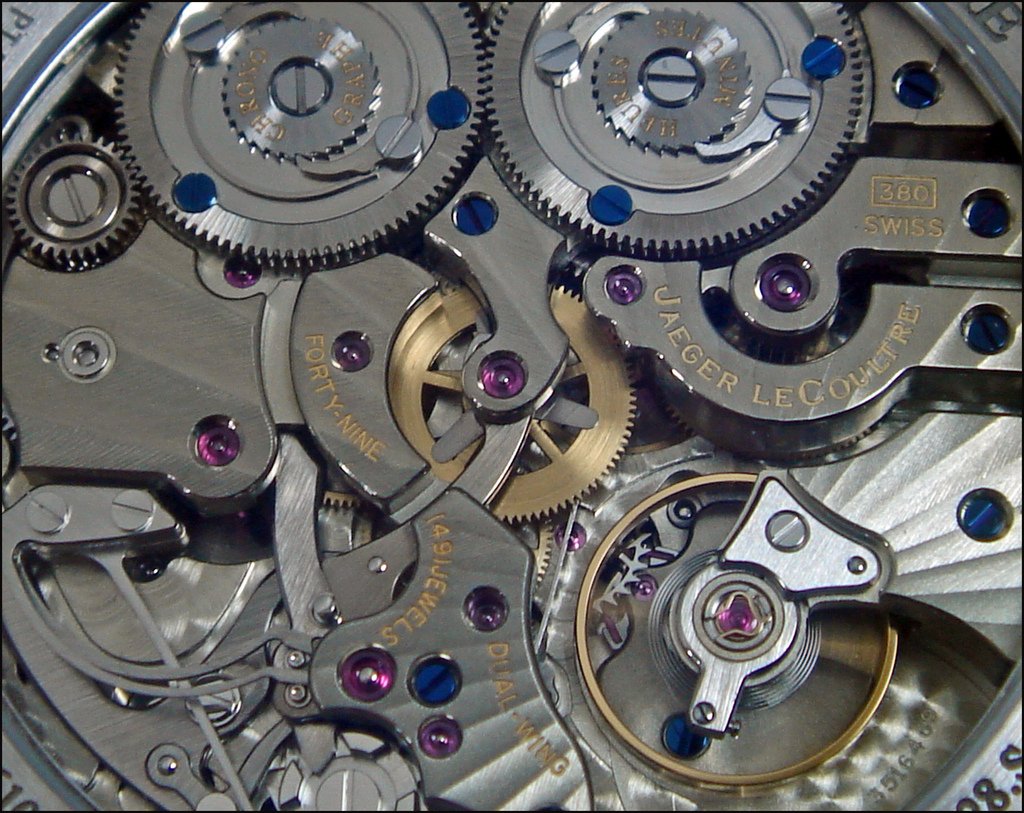

A pic of the whole movement:
Now, let's see how it works, with these technical draws:

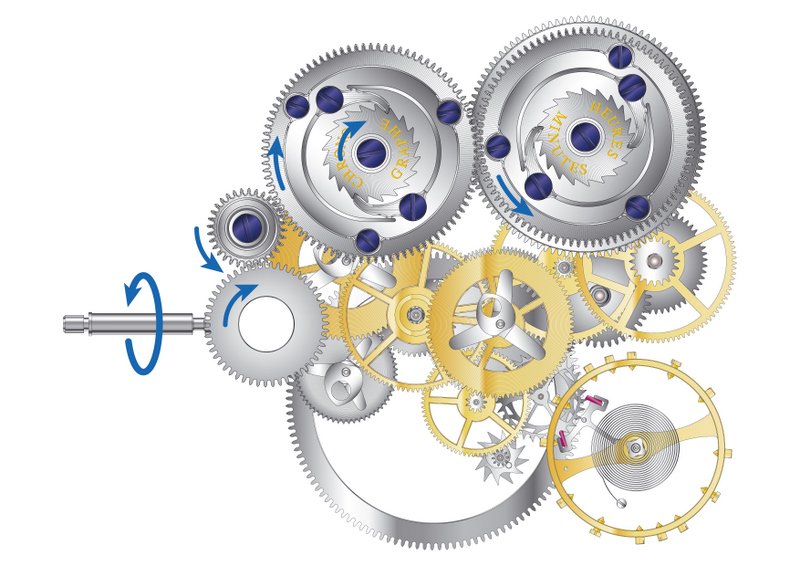

1/ Winding the Hour and Minute barrel:

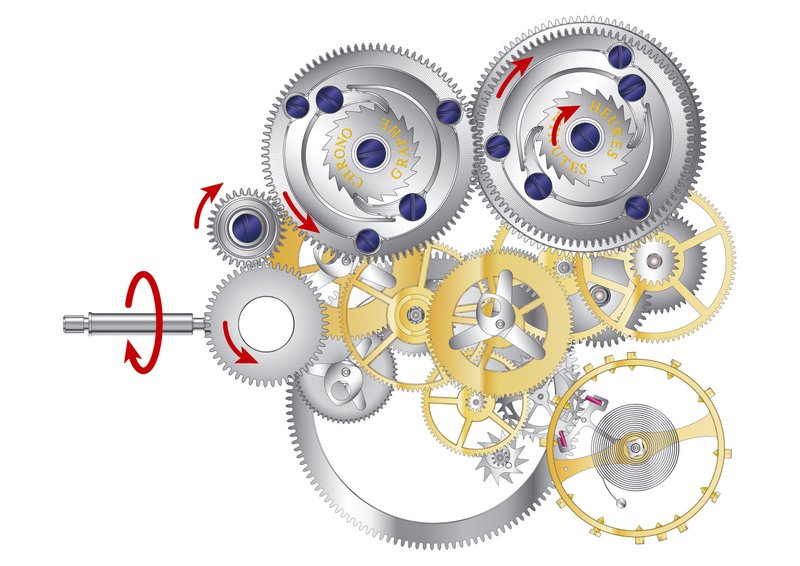

2/ Winding the Chronograph Barrel:

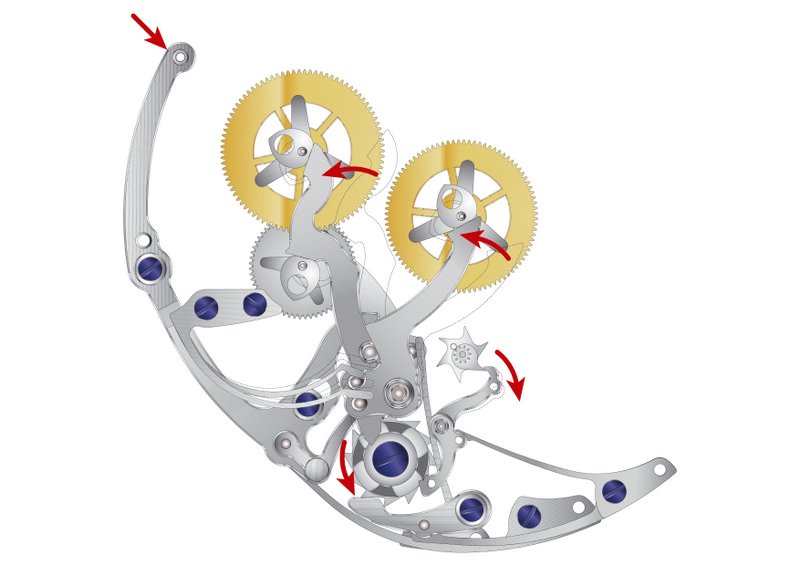

3/ Chronograph Stop:

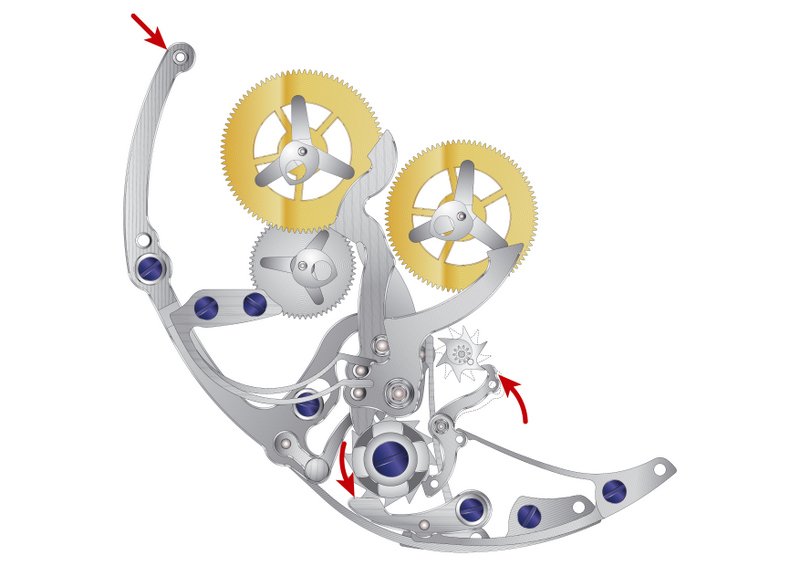

4/ Chronograph Zero Reset:

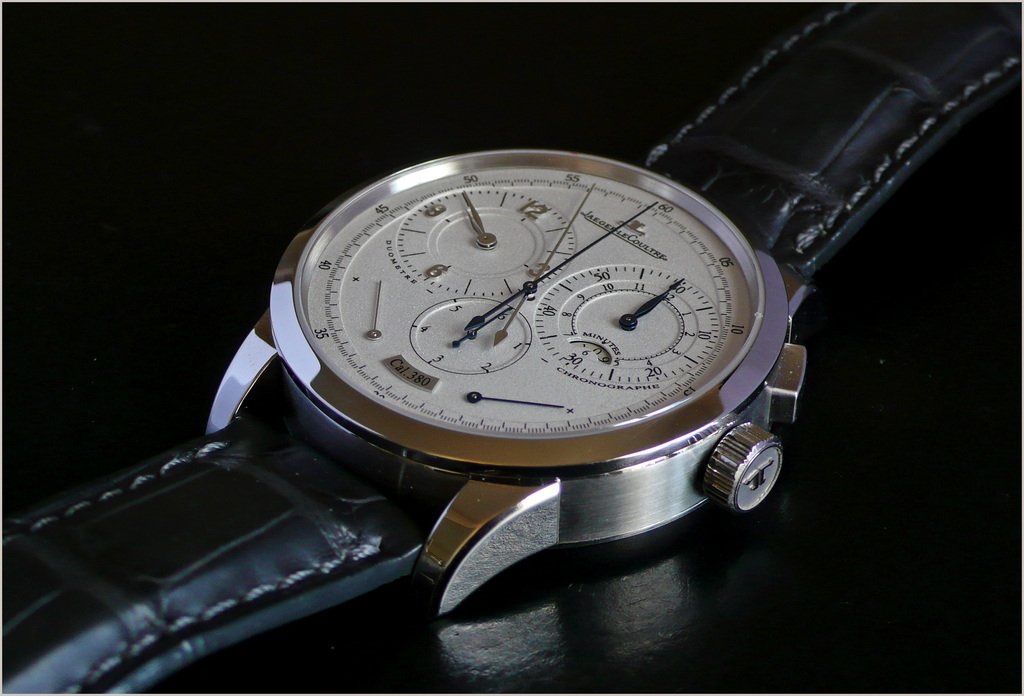

And to end, a pic of the dial, where you also can see the neat separation between the Hour, and the Chronograph...Brilliant!
Enjoy!
