David Walter
250
Leitz Jig borer
The model I have is refered to on the user manual as "Precision Jig Borer" I see no model number.

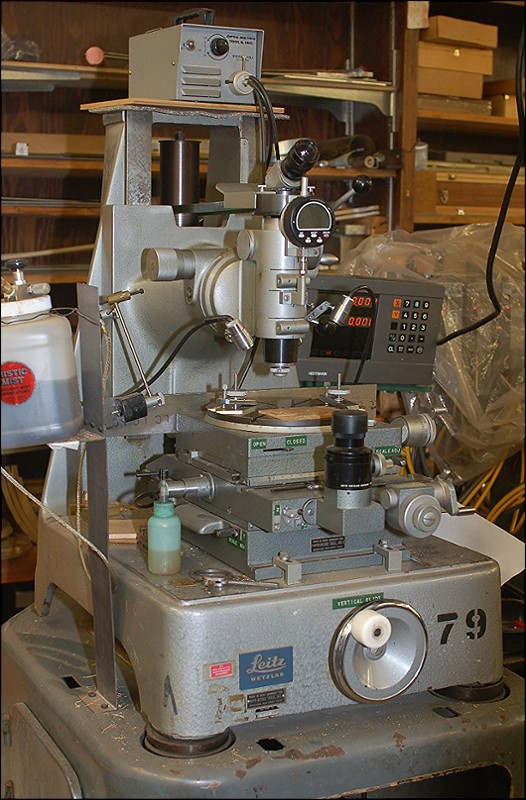

I have added a photo of the Leitz, I have added Heidenhain digital readout scales to the X & Y slides.
A very nice feature is that it takes 8mm collets.
I find high quality endmills or slot drillls are very accurate, D reamers can be used of course but that means changing a tool when the process is under way and risking an unexpected alteration to the settings.
The Knew saw is the best frame I have ever used, beign made of titanium it is very light, the wood handle is the heaviest part and I would like to see a lighter grip handle.
Leitz Jig borer
A David Walter Double Pendulum Clock – Part 7, The Escape Wheels
A David Walter Double Pendulum Clock – Part 7, The Escape Wheels David Walter's new double pendulum perpetual calendar clock is advancing every day. For those of you who didn't see the earlier installments of this series, you can catch up by looking here:...
Piece by piece this clock emerge!
Thank you for sharing this piece by piece journey! You wrote: " A 5mm slot mill is used to drill the center hole. This provides a very precise hole at the expense of drilling time." What kind of time frame are we talking about here? Best Blomman
Drilling
A drill is designed to cut on the front edge when plunging into material. A mill is designed to cut on the side when pushed sideways into material. Many mills can't be used to plunge into material because their geometry is such that they do not cut in the...
Very nice use of a Leitz jig borer
I would love to know what model David uses. Those are hard to find. I wonder- if using a jig borer, why use endmills and drills- every hole cut with multiple tooth cutters theoretically has some runout- or at least, wouldn't be as geometrically round as a...
Leitz Jig borer
The model I have is refered to on the user manual as "Precision Jig Borer" I see no model number. I have added a photo of the Leitz, I have added Heidenhain digital readout scales to the X & Y slides. A very nice feature is that it takes 8mm collets. ...
David, beautiful jig borer
I am very envious- that is a really incredible setup you have. That's basically as good as it gets. While items of that caliber are rare, and thus very expensive- in general, I have seen many jig borers of small size sell for fractions of what they would ...
Leitz Jig Bore
Just purchased a nice Jig Bore like is they cannot find the manual.I have figured much of it's operation but not sure how you attach the bits in the spindle and how machine actually operates. Do you know where I may obtain any info or if you have could p...
