I always do (take pics)…

Best way to remove the threaded portion of a broken dial screw?

By: dynhm6 : September 18th, 2012-12:48

I have experience working on Rolex, but this is only my 2nd Patek. It's a 23-300 and, wouldn't you know it, right off the bat, I'm foiled by this broken dial screw (the head is missing and only the threaded portion of the screw remains in the plate): Sinc...

login to reply

Here is something you might want to try.

By: tick tock doctor : September 19th, 2012-07:20

Take a piece of steel wire that is the same diameter as the hole for the screw. Turn the end down in the lathe till it is about 3/4 the size of threaded part remaining. And dress the tip with even cuts so it is jagged. (gives the wire a little bite, to gr...

login to reply

Many thanks, Anthony, but…

By: dynhm6 : September 19th, 2012-10:00

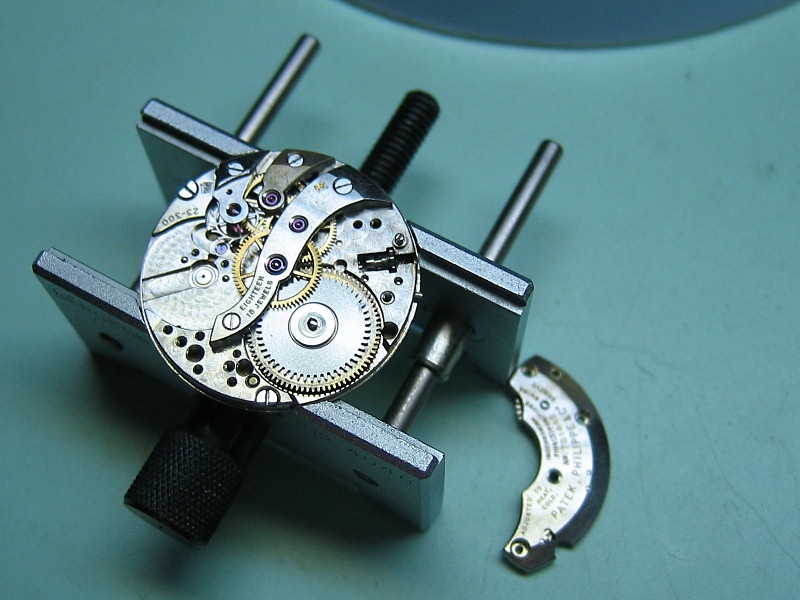

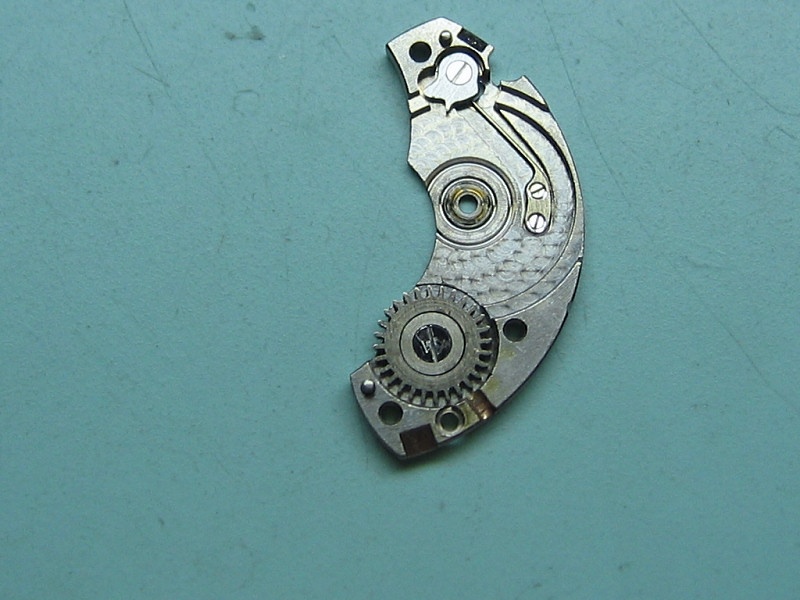

…I ended up removing a coupla bridges and pressing the dial foot out from the front of the plate: I'll have to sort out the remaining bit o' screw that's still lodged in the plate, but, at least, now I can repair the watch's original problem and complete ...

login to reply

I was able to remove the remainder of the screw by…

By: dynhm6 : September 19th, 2012-13:10

…modifying an extra screwdriver similar to the way you suggested and, then, I was able to back the screw piece out: So, case solved. Thank you! ...

login to reply

Nice job!!!

By: tick tock doctor : September 19th, 2012-17:35

You should take A LOT OF PICTURES, I know I would like to see them, Good luck with the rest of the job. Anthony

login to reply

By: dynhm6 : September 19th, 2012-19:13

…I'm awaiting a new detent and to find out whether I can use Rolex oils on the 23-300 (the Patek service manual specs some oils I'm not familiar with, but, generally, I've found that if it's good enough for Rolex....), so I don't have any after (clean/ass...

login to reply
