How do you think ? About hair spring
Hi
Me again
At this time. I would like to ask your opinion about new hair spring ?? and. Have you ever seen this type hair spring ???
Ok. Let me try to explain

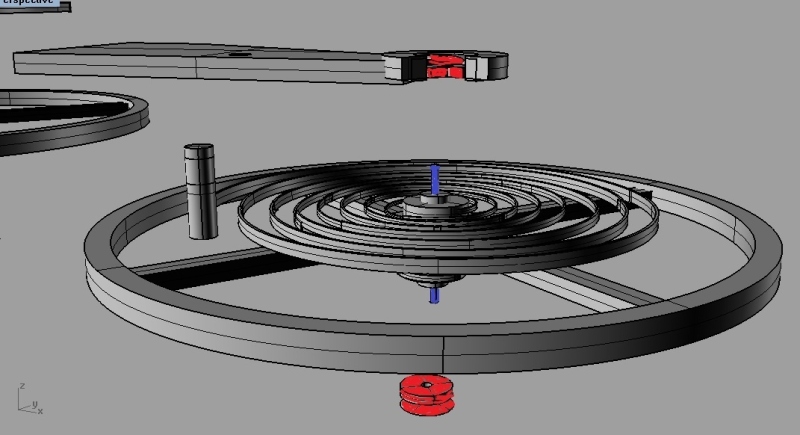

There is picture. That show you normal hair spring
Almost movement use This kind hair spring.
I think. You know ...

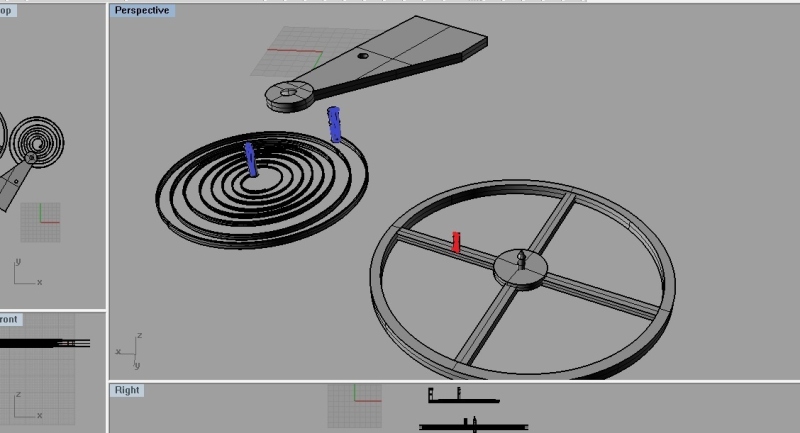

Ok i show you new type hair spring
Can you see the different ...

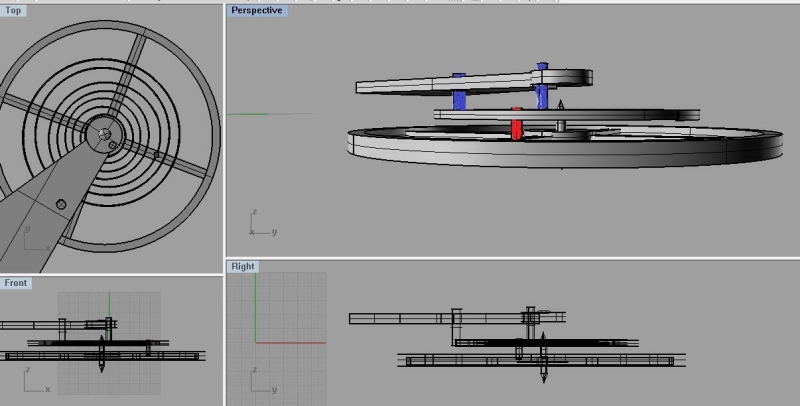

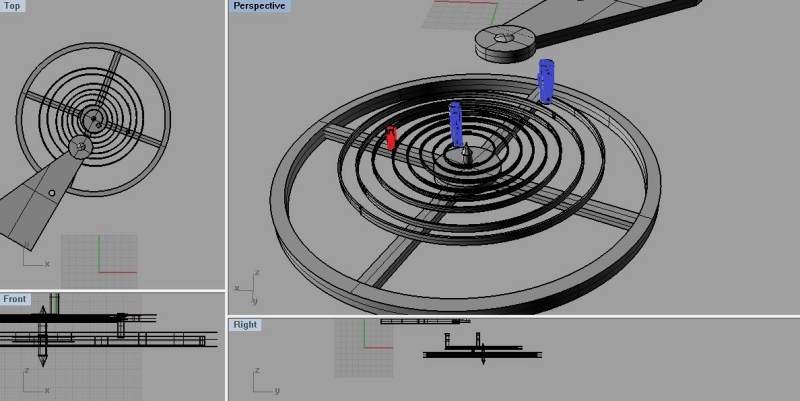

Start &end of hair spring (blue) is fix at balance bridge
And middle of hair spring is connected with balance.
I mean. Blue part (start &end of hair spring ) fix at bridge
Red part (balance arm ) connected with middle of hair spring
Do you think. That is working
It is not easy to explain
Please excuse I am bad at English
At normal hair spring , When balance turn right , hair spring is going to be close
And when balance turn left ' hair spring is going to be open
It mean Turn right , turn left. It is not same
If balance fix middle of hair spring ..
When turn right , Half is going to be close &half is going to be open
When turn left half is going to be open &half is going to be close
I am not sure. This. Idea is right. Or not
Just i have idea. I am not professinal with. Material
That why i ask you.
How do you think ? About hair spring
Hi Me again At this time. I would like to ask your opinion about new hair spring ?? and. Have you ever seen this type hair spring ??? Ok. Let me try to explain There is picture. That show you normal hair spring Almost movement use This kind hair spring. I...
Sorry, but I am not sure I follow you here...
Hi, I am far from an expert or a watchmaker, but I tried to follow your thoughts, but did not understand... Two parameters that will set the frequenze of your movement are the length of the hair spring and weight of the balance wheel. (Of course there are...
Like a double hair spring
While one is expanding the other is contracting. But I think it would be very difficult to set the timing of the two springs identical in this configuration as they have very different geometries and I don't see how they could be treated separately. But m...
Assimetric vibration as advance?
Why do we really need simmetrical vibration at balance wheel? Because classic swiss lever is designed for this. But what about new escapement with separated locking-impulse (etc.) stages (like Daniels)? If we do not except simmetrical, but only periodical...
symetrical vibration at balance wheel
But why is the Swiss lever desiged this way?.... 2 reasons: 1) To allow the balance wheel to turn as much as possible without disturbance. This is to improve the timing qualities. If we don't use as much of the possible free arc as possible in both direct...
