Kong
[Moderator]
7855

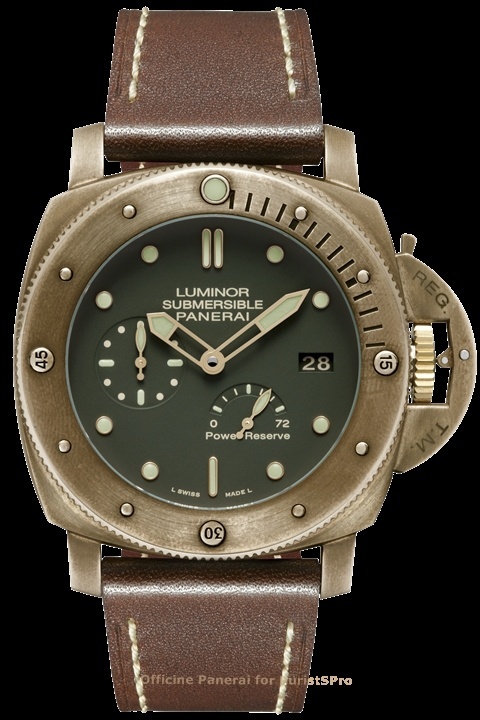

SIHH 2013: Panerai PAM507 Luminor Submersible 1950 3 Days Power Reserve Automatic Bronzo
In the mind of every sailor, bronze immediately evokes images associated with the sea. Vintage yachts and ships are rich in objects made of this material, which reacts to the passage of time and effects of the atmospheric by acquiring a patina which makes every single item unique. Two years after the extraordinary international recognition given to its first watch with a bronze case, Officine Panerai presents the Luminor Submersible 1950 3 Days Power Reserve Automatic Bronzo, a new Special Edition produced in the same material with its eternal fascination and its decisively nautical associations.
The bronze of the Luminor 1950 case is CuSn8, an alloy of copper and tin in the pure state, highly resistant to the corrosive action of sea water and the atmosphere. As well as its high degree of structural robustness, this material preserves its original warm tone while acquiring, with the passage of time, a seasoned appearance as a result of the patina which covers it. This patina is the result of the bronze’s reaction to external agents (air, humidity, heat and wear); it does not alter the properties of the material but simply marks the ageing process, making each example unique and personalised. The size of the case is the same as that of the classic of Panerai watches, 47 mm in diameter, and classic too is the bridge device with the locking device which seal the winding crown.

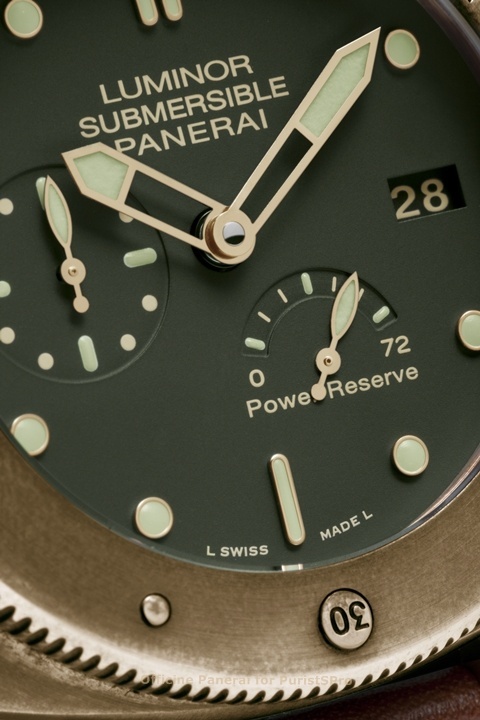

Immediately evident on the dial of the Luminor Submersible 1950 3 Days Power Reserve Automatic Bronzo is the important new feature which distinguishes this model: the display of the power reserve of three days on an arc-shaped indicator positioned at four o’clock. This very useful function joins the date display, the device for zeroing the seconds hand that is invaluable when synchronising the watch with a reference time signal, and the system for rapidly adjusting the time, the hand of which can be moved forward or backwards in jumps of one hour without affecting the running of the watch. The dark green dial, with applied hour markers, is surrounded by a studded bezel in bronze with the scale for measuring the length of the dive. The bezel is connected to the case by a special system designed and patented by Officine Panerai to ensure that the ratchet moves precisely from one click to the next.
The sapphire crystal back is fixed by a titanium ring, a metal chosen for its non-allergenic characteristics. Visible through the back is the Panerai P.9002 calibre, developed and produced entirely in the Officine Panerai manufacture in Neuchâtel. Consisting of 237 component parts, the P.9002 automatic calibre has an oscillating weight which rotates in both directions winding two spring barrels connected in series which accumulate a power reserve of three days. The balance wheel oscillates at a frequency of 28,800 alternations/hour and it is the variable inertia type, fitted with four regulating screws arranged radially.
The Luminor Submersible 1950 3 Days Power Reserve Automatic Bronzo (PAM00507) is water-resistant to 30 bar (300 metres) and is completed by a brown leather strap with stitching of a subtly nautical character and a titanium buckle. It is a Special Edition produced in only 1,000 units.
LUMINOR SUBMERSIBLE 1950 3 DAYS POWER RESERVE AUTOMATIC BRONZO - 47mm
Unique edition of 1000 units
Movement: Automatic mechanical, Panerai P.9002 calibre, executed entirely by Panerai, 13¾ lignes, 7.9 mm thick, 29 jewels, Glucydur® balance, 28,800 alternations/hour. Incabloc® anti-shock device. Power reserve 3 days, two barrels. 237 components.
Functions: Hours, minutes, small seconds, date, seconds reset, power reserve indicator, calculation of immersion time.
Case: Diameter 47 mm, brushed bronze.

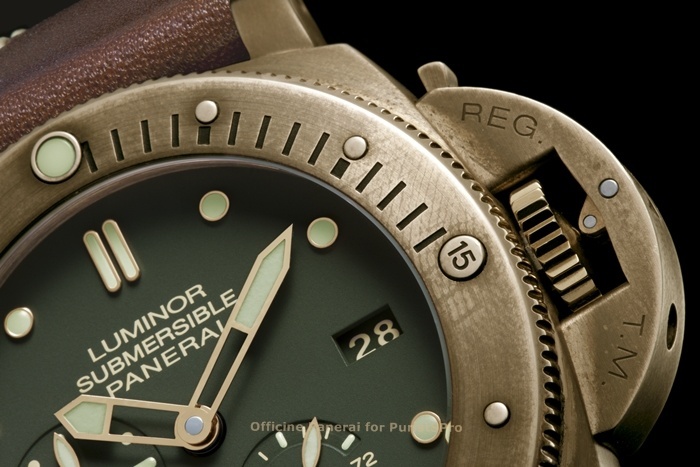

Bezel: Brushed bronze with polished edges, anti-clockwise unidirectional rotating bezel with graduated scale for calculating the time of immersion and ratchet click at minute intervals.
Back: Brushed titanium with see-through sapphire crystal.
Device protecting the crown: (protected as a trademark) Brushed bronze.
Dial: Green with applied luminous hour markers. Date at 3 o’clock, seconds at 9 o’clock, power reserve indicator at 5 o’ clock.
Crystal: Sapphire, made of corundum, 2.9 mm thick. Anti-reflective coating.
Water-resistance: 30 bar (~ 300 metres).
Strap: PANERAI personalised leather strap and trapezoidal brushed titanium buckle.
Supplied with a second interchangeable strap and a steel screwdriver.
Reference: PAM00507
The bronze of the Luminor 1950 case is CuSn8, an alloy of copper and tin in the pure state, highly resistant to the corrosive action of sea water and the atmosphere. As well as its high degree of structural robustness, this material preserves its original warm tone while acquiring, with the passage of time, a seasoned appearance as a result of the patina which covers it. This patina is the result of the bronze’s reaction to external agents (air, humidity, heat and wear); it does not alter the properties of the material but simply marks the ageing process, making each example unique and personalised. The size of the case is the same as that of the classic of Panerai watches, 47 mm in diameter, and classic too is the bridge device with the locking device which seal the winding crown.
Immediately evident on the dial of the Luminor Submersible 1950 3 Days Power Reserve Automatic Bronzo is the important new feature which distinguishes this model: the display of the power reserve of three days on an arc-shaped indicator positioned at four o’clock. This very useful function joins the date display, the device for zeroing the seconds hand that is invaluable when synchronising the watch with a reference time signal, and the system for rapidly adjusting the time, the hand of which can be moved forward or backwards in jumps of one hour without affecting the running of the watch. The dark green dial, with applied hour markers, is surrounded by a studded bezel in bronze with the scale for measuring the length of the dive. The bezel is connected to the case by a special system designed and patented by Officine Panerai to ensure that the ratchet moves precisely from one click to the next.
The sapphire crystal back is fixed by a titanium ring, a metal chosen for its non-allergenic characteristics. Visible through the back is the Panerai P.9002 calibre, developed and produced entirely in the Officine Panerai manufacture in Neuchâtel. Consisting of 237 component parts, the P.9002 automatic calibre has an oscillating weight which rotates in both directions winding two spring barrels connected in series which accumulate a power reserve of three days. The balance wheel oscillates at a frequency of 28,800 alternations/hour and it is the variable inertia type, fitted with four regulating screws arranged radially.
The Luminor Submersible 1950 3 Days Power Reserve Automatic Bronzo (PAM00507) is water-resistant to 30 bar (300 metres) and is completed by a brown leather strap with stitching of a subtly nautical character and a titanium buckle. It is a Special Edition produced in only 1,000 units.
LUMINOR SUBMERSIBLE 1950 3 DAYS POWER RESERVE AUTOMATIC BRONZO - 47mm
Unique edition of 1000 units
Movement: Automatic mechanical, Panerai P.9002 calibre, executed entirely by Panerai, 13¾ lignes, 7.9 mm thick, 29 jewels, Glucydur® balance, 28,800 alternations/hour. Incabloc® anti-shock device. Power reserve 3 days, two barrels. 237 components.
Functions: Hours, minutes, small seconds, date, seconds reset, power reserve indicator, calculation of immersion time.
Case: Diameter 47 mm, brushed bronze.
Bezel: Brushed bronze with polished edges, anti-clockwise unidirectional rotating bezel with graduated scale for calculating the time of immersion and ratchet click at minute intervals.
Back: Brushed titanium with see-through sapphire crystal.
Device protecting the crown: (protected as a trademark) Brushed bronze.
Dial: Green with applied luminous hour markers. Date at 3 o’clock, seconds at 9 o’clock, power reserve indicator at 5 o’ clock.
Crystal: Sapphire, made of corundum, 2.9 mm thick. Anti-reflective coating.
Water-resistance: 30 bar (~ 300 metres).
Strap: PANERAI personalised leather strap and trapezoidal brushed titanium buckle.
Supplied with a second interchangeable strap and a steel screwdriver.
Reference: PAM00507
This message has been edited by Kong on 2013-01-21 05:04:30 This message has been edited by AnthonyTsai on 2013-01-21 12:10:47
SIHH 2013: Panerai Novelties
THE SEA, HISTORY, TECHNOLOGY AND DESIGN While the Panerai brand was founded in Florence in 1860, the Panerai watch came into being in the world of the depths of the sea. To be precise, the depths of the Mediterranean, where in March 1936 the commandos of ...
SIHH 2013: Panerai PAM364 Luminor Submersible 1950 2500m 3 Days Automatic Titanio 47mm
In its long history, Officine Panerai has often been involved with the world of the deep, creating watches capable of operating at extreme depths. With the new Luminor Submersible 1950 2500m 3 Days Automatic Titanio, Officine Panerai continues this long t...
SIHH 2013: Panerai PAM508 LUMINOR SUBMERSIBLE 1950 3 DAYS AUTOMATIC CERAMICA - 47mm
The absolute darkness which rules in the depths of the sea is reflected in the appearance of the Luminor Submersible 1950 3 Days Automatic Ceramica, the new Officine Panerai Special Edition which, with its matt ceramic case, its P.9000 manufacture movemen...
SIHH 2013: Panerai PAM507 Luminor Submersible 1950 3 Days Power Reserve Automatic Bronzo
In the mind of every sailor, bronze immediately evokes images associated with the sea. Vintage yachts and ships are rich in objects made of this material, which reacts to the passage of time and effects of the atmospheric by acquiring a patina which makes...
SIHH 2013: Panerai PAM524 Luminor 1950 3 Days Chrono Flyback 44mm
Officine Panerai presents the Luminor 1950 3 Days Chrono Flyback, a new chronograph with a flyback function and an automatic movement with a power reserve of three days. Available in a purely sports version in steel or as a more elegant one in red gold, t...
SIHH 2013: Panerai PAM525 Luminor 1950 3 Days Chrono Flyback Oro Rosso 44mm
LUMINOR 1950 3 DAYS CHRONO FLYBACK ORO ROSSO - 44mm Movement: Automatic mechanical, Panerai P.9100 calibre, executed entirely by Panerai, 13¾ lignes, 8.15 mm thick, 37 jewels, Glucydur® balance, 28,800 alternations/hour. KIF Parechoc® anti-shock device. P...
SIHH 2013: Panerai PAM526 Luminor 1950 Regatta 3 Days Chrono Flyback Titanio 47mm
The start of a vintage yacht race is a moment of remarkable beauty. The boats of every class, with timbers sometimes a hundred years old or more, gather together at the starting line between the buoys, driven only by the wind which fills the sails and by ...
The 2013 winner IMO. The 12h
chrono is also a nice addition for sail races. Sailors will be pleased to get one and also appreciate it is not a limited serie. Thanks to Kong for its so rapid coverage. Cheers, Patrickh
SIHH 2013: Panerai PAM514 Radiomir 1940 3 Days 47mm
RADIOMIR 1940 In about 1940, the Panerai workshops in Florence perfected a new case, designed to meet the increasing demands of the commandos of the Italian Navy. The case had evolved from the one presented in 1936 which is known today as the Radiomir – a...
514 wristshot ;-))
A really nice model. 2 minutes later and the date should have been covered by the hand. for a nicer dial IMO. Enjoyable to wear it, more than the 512 (42mm), even on my small wrist 16,5cm. Cheers, Patrickh ...
SIHH 2013: Panerai PAM515 Radiomir 1940 3 Days Oro Rosso 47mm
RADIOMIR 1940 3 DAYS ORO ROSSO - 47mm Movement: Hand-wound mechanical, Panerai P.3000 calibre, executed entirely by Panerai, 16½ lignes, 5.3 mm thick, 21 jewels, Glucydur® balance, 21,600 alternations/hour. Incabloc® anti-shock device. Power reserve 3 day...
SIHH 2013: Panerai PAM512 Radiomir 1940 42mm
The Radiomir 1940, in both the steel and the red gold versions is also available with the case 42 mm in diameter with the P.999 hand-wound movement, the smallest and thinnest in the wide range of calibres produced by the Officine Panerai manufacture in Ne...
SIHH 2013: Panerai PAM513 Radiomir 1940 ORO ROSSO 42mm
Radiomir 1940 ORO ROSSO 42mm Movement: Hand-wound mechanical, Panerai P.999 calibre, executed entirely by Panerai, 12 lignes, 3.4 mm thick, 19 jewels, Glucydur® balance, 21,600 alternations/hour. Incabloc® anti-shock device. Swan’s neck regulator. Power r...
Thanks for the report Kong
It seems that the steel 42mm Radiomir has a slightly different 999 movement than the RG one? ( the gold has the fine adjustment spring) Do you have any live shots of the 42mm as well? Thanks
SIHH 2013: Panerai PAM446 Pocket Watch Tourbillon GMT Ceramica 59mm
In 2007 Officine Panerai launched the P.2005 movement, a sophisticated hand-wound calibre with an innovative interpretation of the tourbillon regulator, distinguished by a simple but revolutionary insight which makes the movement unique. The traditional r...
Videos of the Panerai 2013 Novelties
The SUBMERSIBLE <iframe width="853" height="480" src="" frameborder="0" allowfullscreen></iframe> The REGATTA <iframe width="853" height="480" src="" frameborder="0" allowfullscreen></iframe> The RADIOMIR 1940 <iframe width="853...
Thanks ...
for reading Quan. Hope you and your family are alright. Take good care. Kong
Thanks Kong for posting the new Panerai models!
I'm still digesting each and every one of them! Cheers, Anthony
