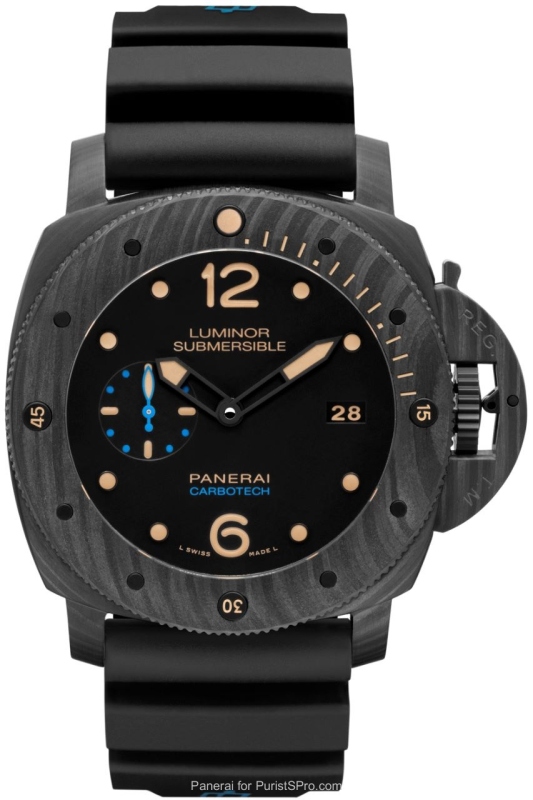

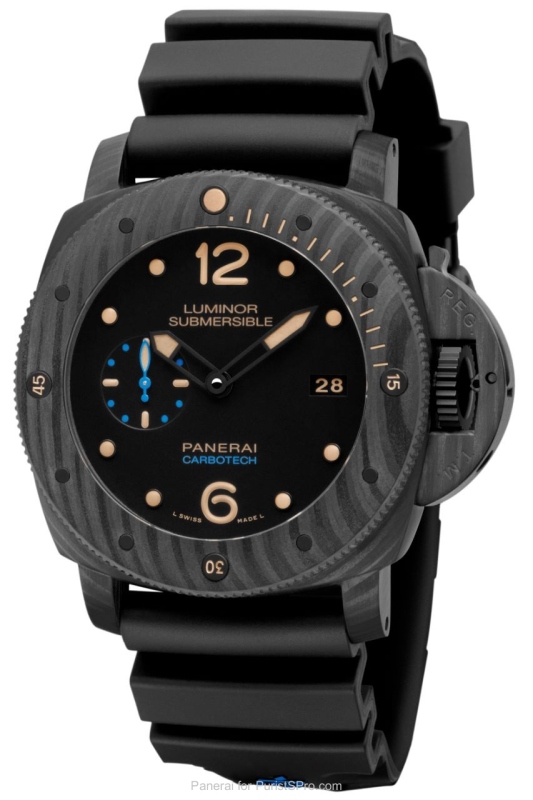

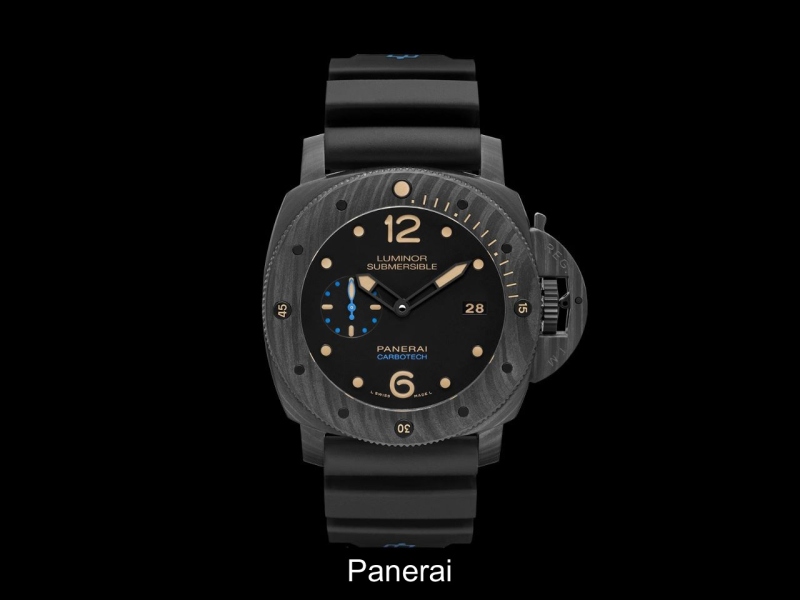

Panerai PAM616 Carbotech Luminor Submersible 47mm

PANERAI PAM616 LUMINOR SUBMERSIBLE 1950 CARBOTECH^TM 3 DAYS AUTOMATIC – 47mm

EVERY EXAMPLE OF THE NEW LUMINOR SUBMERSIBLE 1950 CARBOTECH^TM IS UNIQUE AND DIFFERENT FROM ALL THE OTHERS THANKS TO THE SURPRISING TECHNICAL AND AESTHETIC CHARACTERISTICS OF CARBOTECH, THE NEW COMPOSITE MATERIAL WHICH IS MAKING ITS DEBUT IN HAUTE HORLOGERIE WITH OFFICINE PANERAI.

One of the secrets of Officine Panerai is its ability to combine echoes of the glorious past, which is always at the foundation of each new design by the brand, with a continuous thrust towards the future and innovation. In 2010 Officine Panerai amazed the world of high quality watchmaking by offering the Luminor Submersible for the first time with the case of bronze, an ancient material with unmistakable nautical associations, which is personalised by ageing with the passage of time.

Officine Panerai’s Workshop of Ideas today turns to the future and presents a remarkable new technical innovation which makes each example of the new Luminor Submersible 1950 CarbotechTM different from the others. The case is made of carbotech, a composite material based on carbon fibre, never before used in the world of watchmaking. As well as providing exceptional technical performance, carbotech has an uneven, matt black appearance, which varies according the cutting of the material: the result is that each example is unique.

The structure of carbotech is designed to enhance both the aesthetics and the performance of the material, which is used to make the case, the rotating bezel and the lever bridge which protects the winding crown. To form the plates of carbotech from which these components are made, thin sheets of carbon fibres are compressed at a controlled temperature under high pressure together with a high-end polymer, PEEK (Polyether Ether Ketone), which binds the composite material, making it even stronger and more durable. The carbon fibres used are very long, so as to ensure great aesthetic uniformity, and the sheets are superimposed and pressed together in such a way that the fibres of each layer are set at a different angle to the ones above and below it. With this structure, the mechanical properties of carbotech are much higher than those of similar materials or of other materials used in the world of watchmaking, such as ceramics and titanium: carbotech is lighter than these and much more resistant to external solicitations, as well as being hypoallergenic and not subject to corrosion.

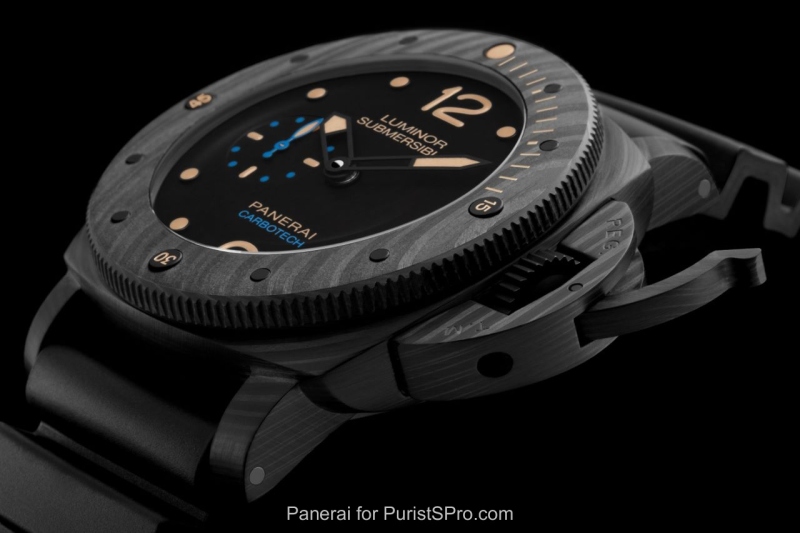

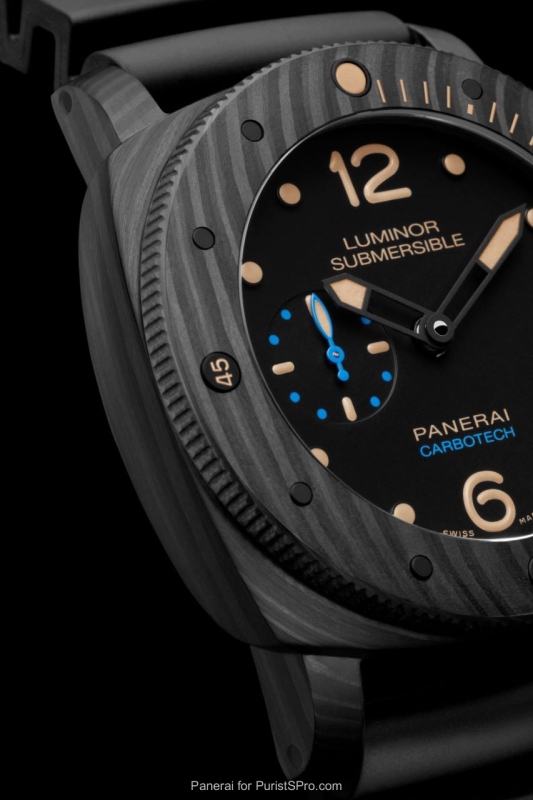

While the technology of the material looks to the future, every detail of the design of the watch is faithfully inspired by the history of the brand. The Luminor 1950 case (47mm in diameter), developed by Panerai in the late 1940s to be worn on the wrists of commandos of the Italian Navy, is enhanced by a rotating bezel with markers consisting of small studs, inspired by the model created by Panerai for the Egyptian Navy in 1956. The bezel rotates only anticlockwise and enables the time of immersion to be calculated: a very useful function for a professional underwater instrument which is tested for water-resistance up to 30 bar (about 300 metres).

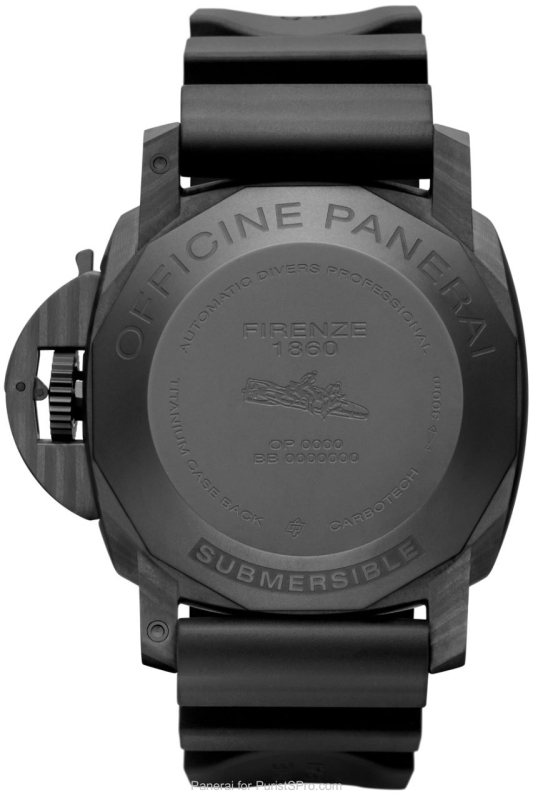

The dial of the new Luminor Submersible 1950 CarbotechTM is black with applied hour markers, the date window is at three o’clock and the small seconds counter marked by Panerai blue details is at nine o’clock. The screwin caseback, which helps to ensure the watch’s high degree of water-resistance, is made of titanium with black treatment and it is engraved with elements characteristic of the Panerai brand: “Florence 1860”, the city and year of birth of Panerai watchmaking, and the image of a Slow Speed Torpedo (SLC), the notorious “pig” on which in the 1940s the commandos of the Italian Navy sailed through the depths of the sea on their missions while wearing instruments made by Panerai.

The technological heart of the Luminor Submersible 1950 CarbotechTM is the P.9000 automatic calibre, developed and made by the Officine Panerai manufacture in Neuchâtel. The movement, 13¾ lignes in diameter, has two spring barrels giving a power reserve of three days, and the oscillating weight rotates in both directions. To ensure accuracy when setting the time, the movement has the device which stops the balance wheel while the hour hand moves forward or backward in increments of one hour, without interfering with the progress of the minute hand. The oscillation frequency of the balance is 28,800 vibrations per hour.

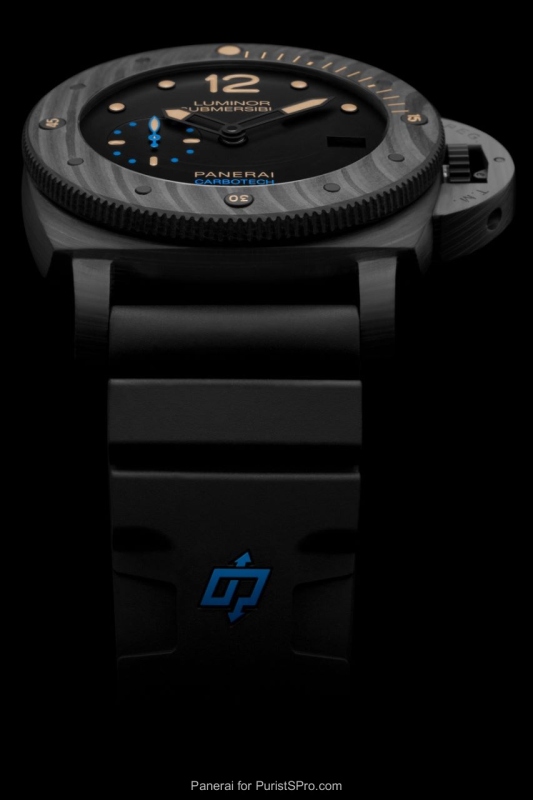

Identified by the reference PAM00616, the new Luminor Submersible 1950 CarbotechTM is fitted with a black rubber strap, personalised for the first time by the OP logo in Panerai blue.

LUMINOR SUBMERSIBLE 1950 CARBOTECH^TM

3 DAYS AUTOMATIC - 47mm

PAM00616

Divers Professional

MOVEMENT: Automatic mechanical, P.9000 calibre, executed entirely by Panerai. FUNCTIONS: Hours, minutes, small seconds, date, calculation of immersion time. CASE: 47 mm, carbotech. DIAL: Black with applied luminous dots and Arabic numerals. Date at 3 o’clock, seconds at 9 o’clock. POWER RESERVE: 72H. WATER-RESISTANCE: 30 bar (~ 300 metres).
