Part IX: Casing

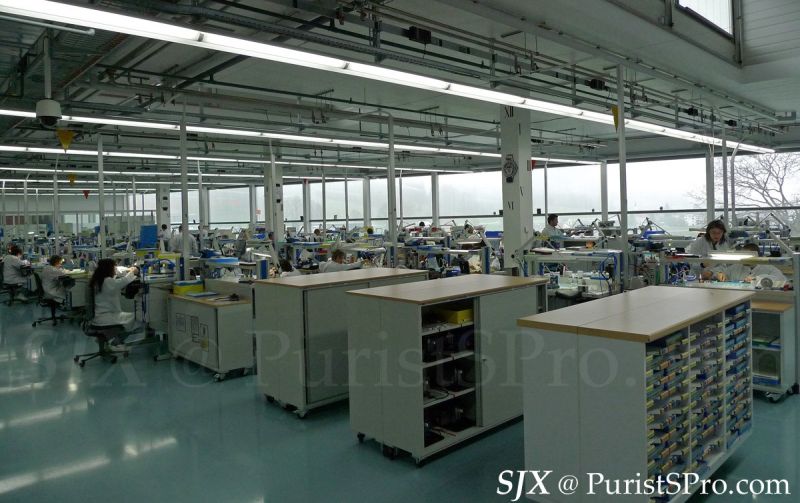

Once the movements are assembled, they are sent to the adjacent casing area.
Here, dials and hands are mounted on the movement, after which it is cased and the strap or bracelet is installed.

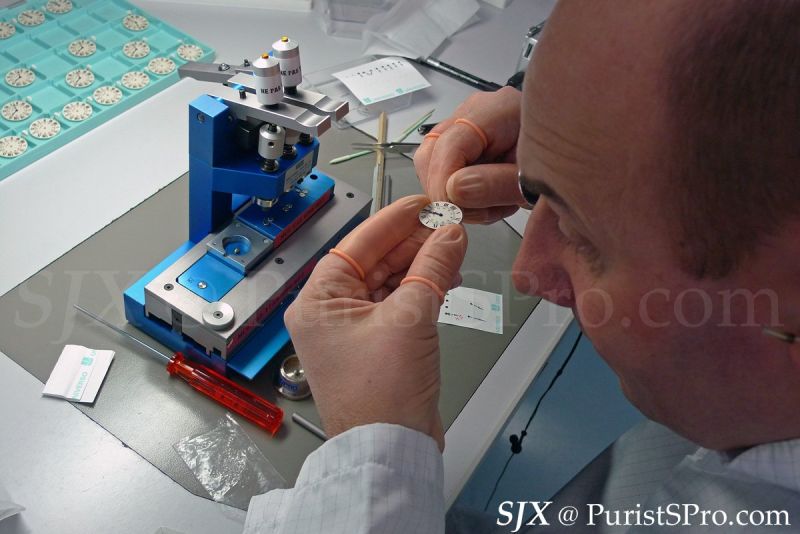

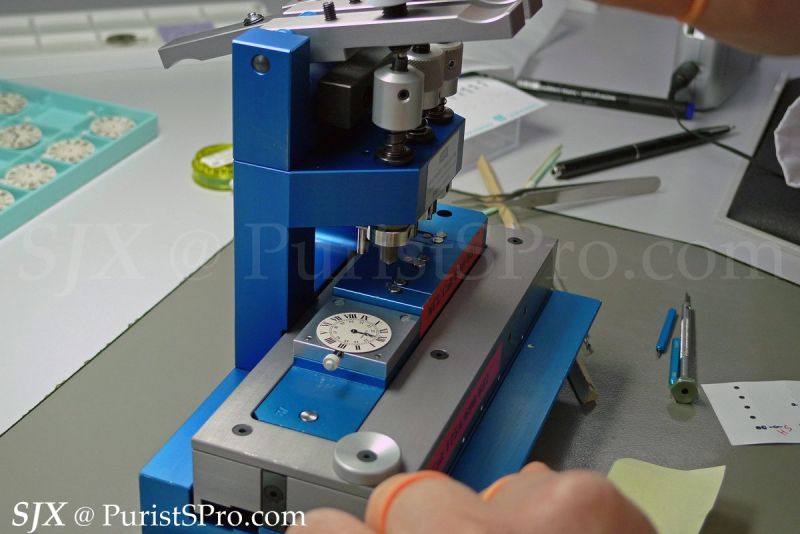

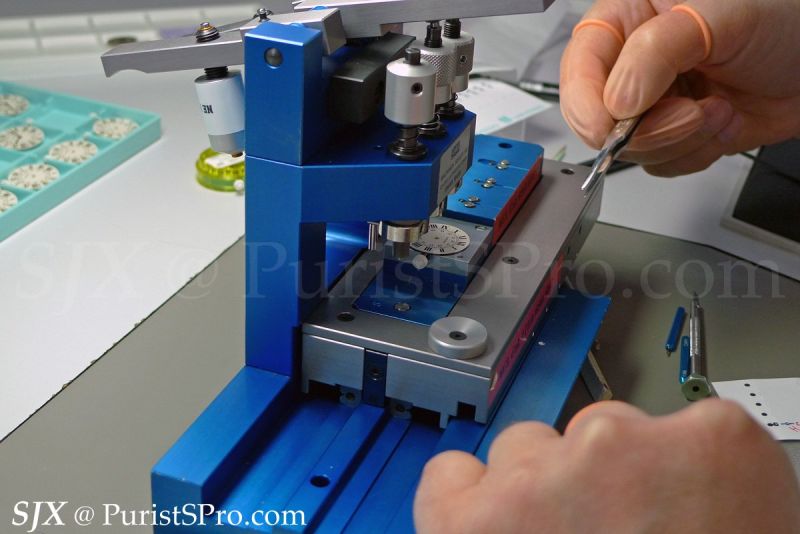

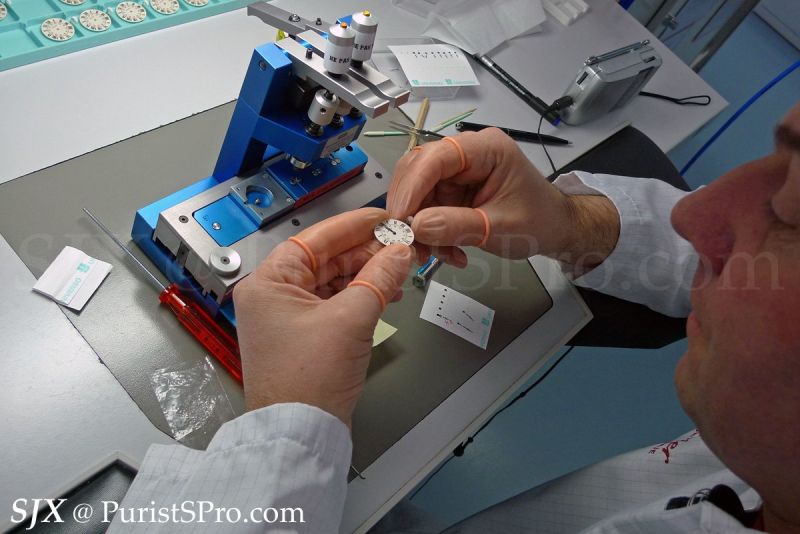

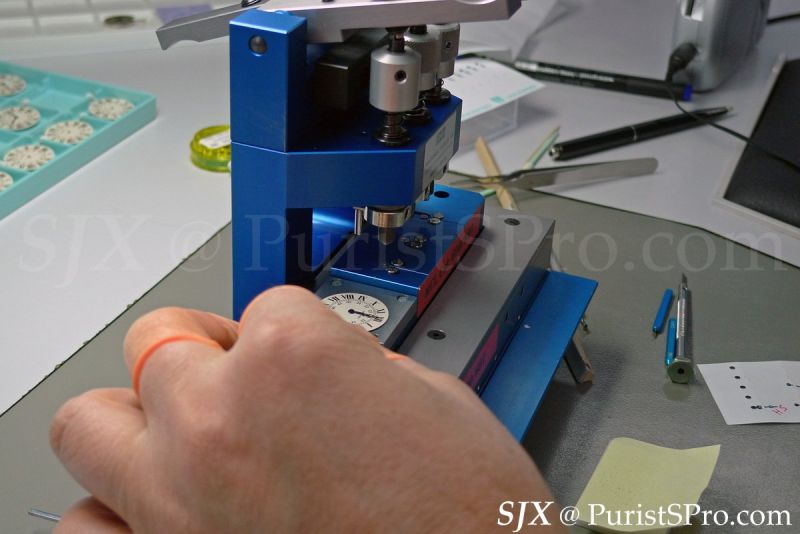

Below: Installing hands on a Ronde Solo

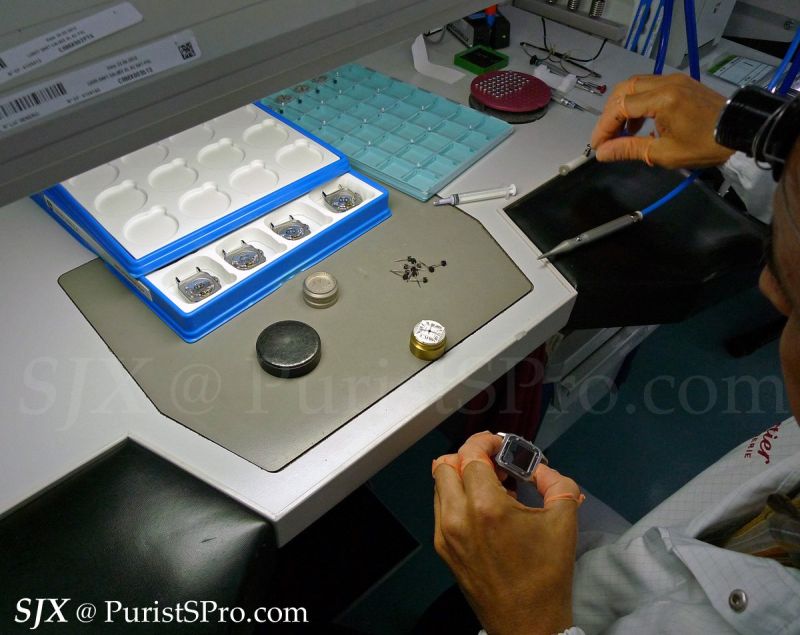

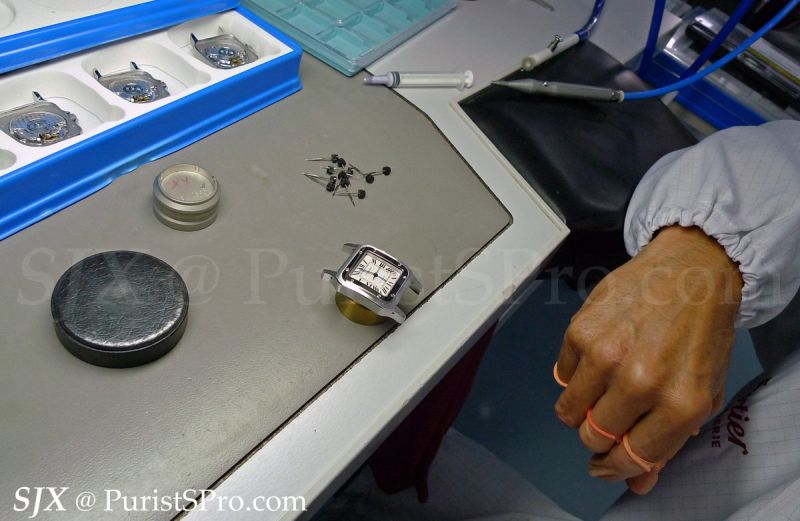

Below: Casing of the Santos Galbee XL
The completed watches then undergo quality control checks for timing as well as visual inspection.
click here for Part X.
This message has been edited by SJX on 2010-07-08 07:50:30
