Part VII: Quartz movement assembly

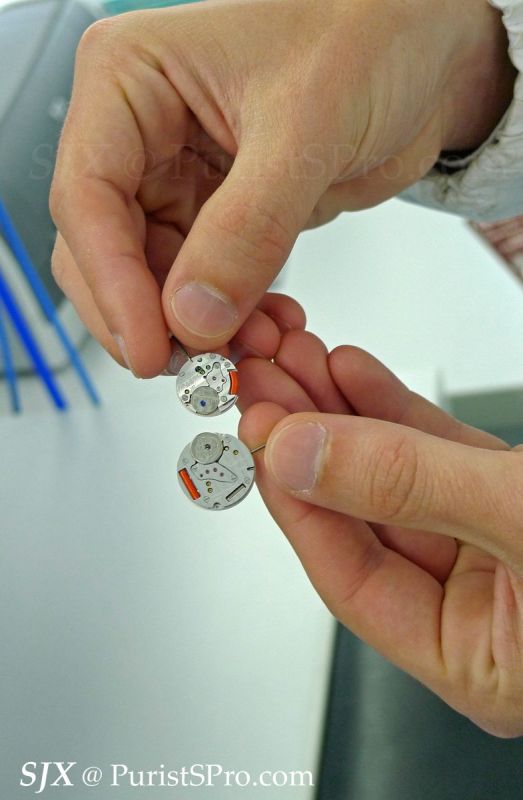

Cartier makes all the mechanical and non-moving components of the quartz movements in-house, save for the quartz, battery and integrated circuit. The quartz movements are designed by Cartier and the ICs made to specification by an external contractor.

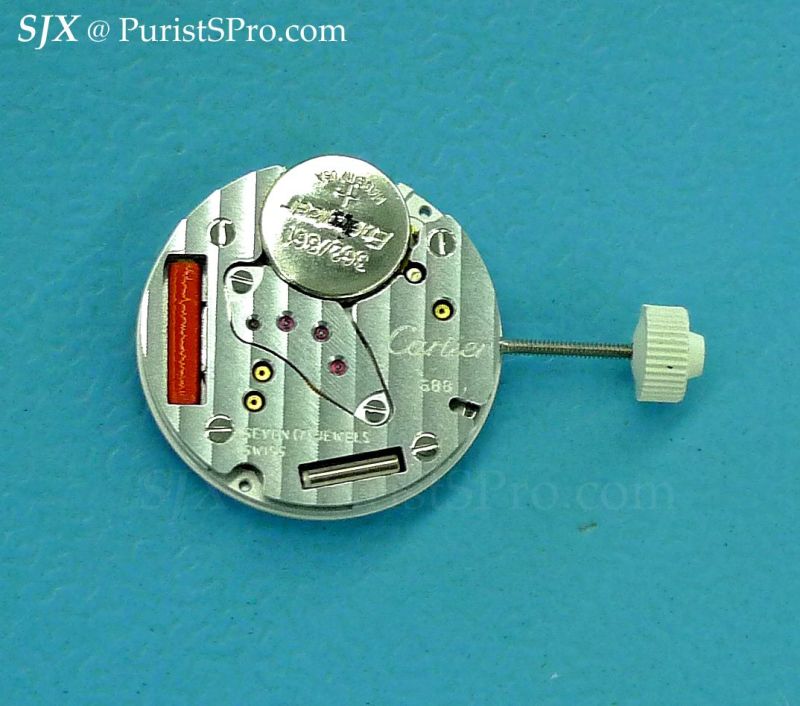

These are not low-end quartz movements with plastic bridges; the bridges are rhodium-plated brass and decorated.
Cartier is one of the few companies able to do so since production on a very large scale is required for this to be economical. As a point of note, Cartier has been making its own quartz movements for over 20 years.

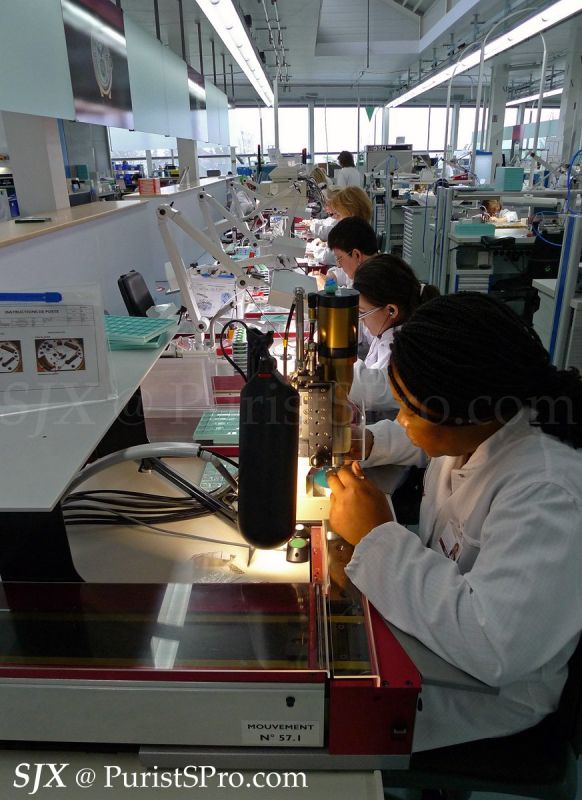

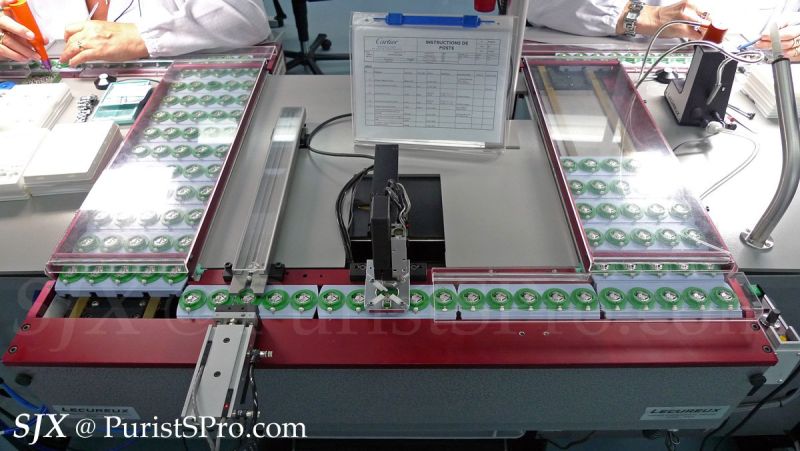

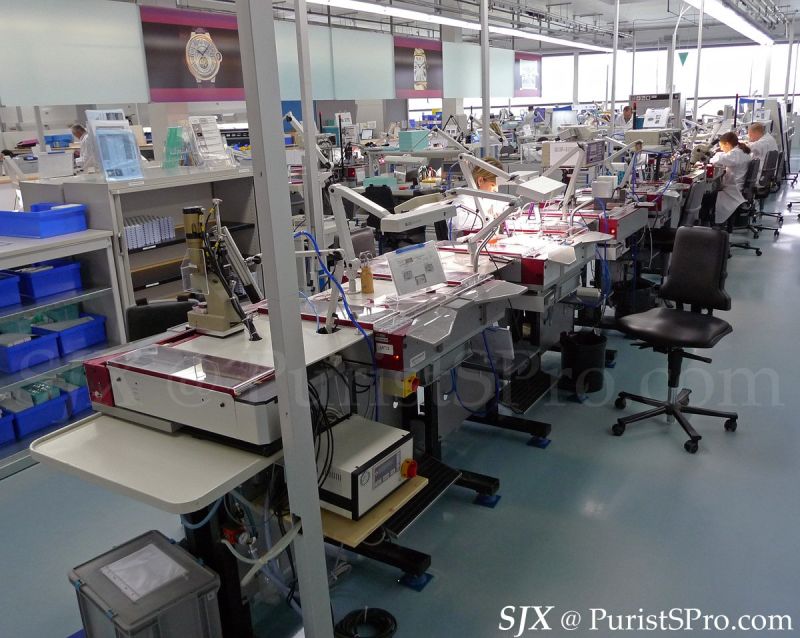

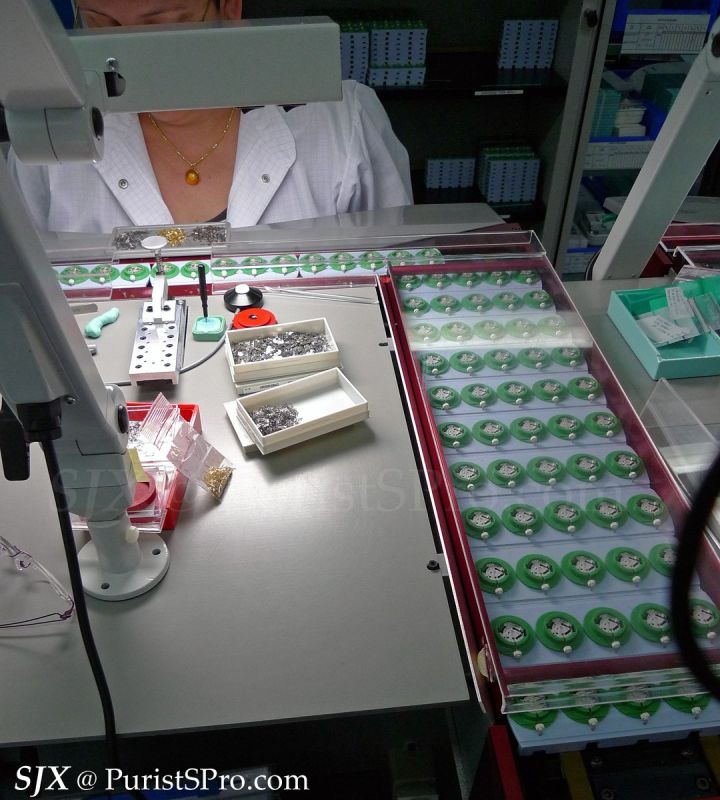

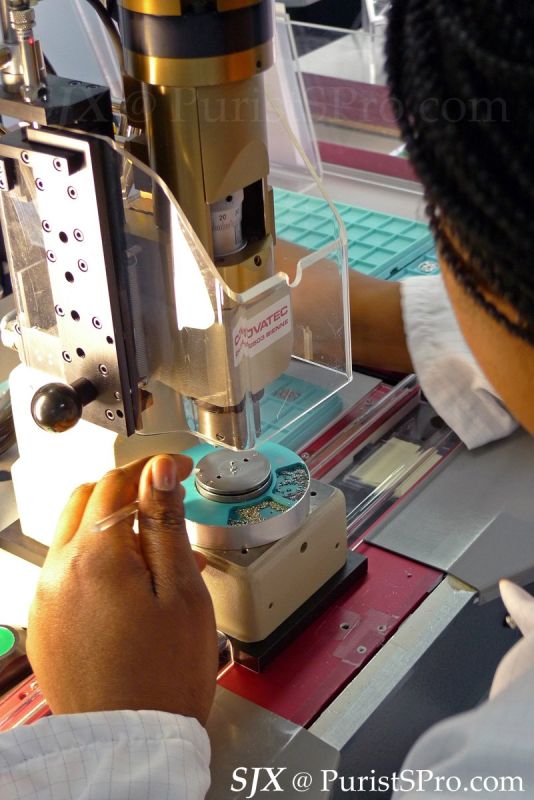

Quartz movements are assembled in batches and sent from one watchmaker to another on a mechanical assembly line.
click here for Part VIII.
