Try again to show everybody GIF animated picture
Hi
Hi everybody
It is me again
At first i am sorry that you can not see the picture at last my post
Actually. When i write the last post
I put in the picture by HTML. Like this
I think it was ok. I mean. It was working. Animated GIF picture
But one. or two day later I can not see the animated picture. I mean it was not working animated picture
So i check the picture link. And i find that the adress Has been changed like This
> I did not change the link adress
I don,t know why adress is changed.... What is wrong ?
Anyway. I try again to show. Everybody the picture.
I think. Now. The picture is working.
And i try ask again. Same as last time
And i have question

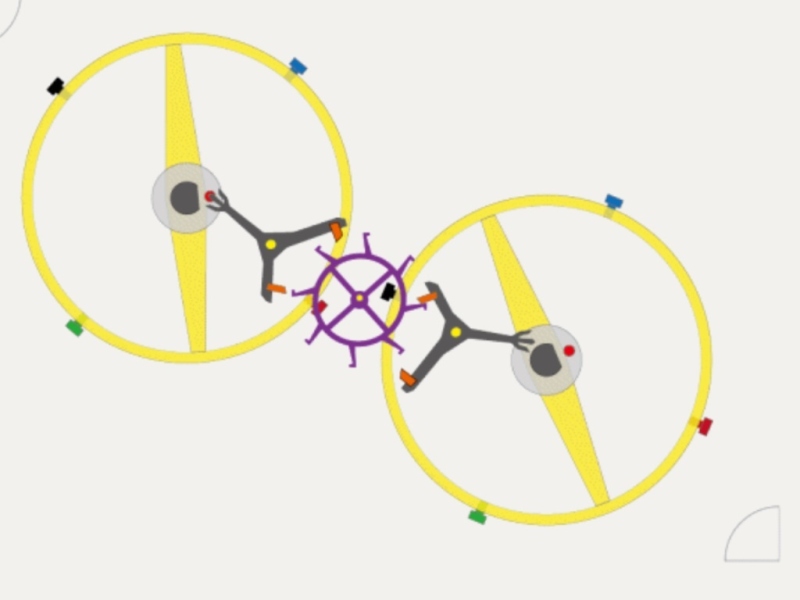

1. Can you understand this system movement ?
Please make focus at unlocking. Impulse. Locking
2. Have you ever seen this system. or similar. ?
3. Is there any problem with this system?

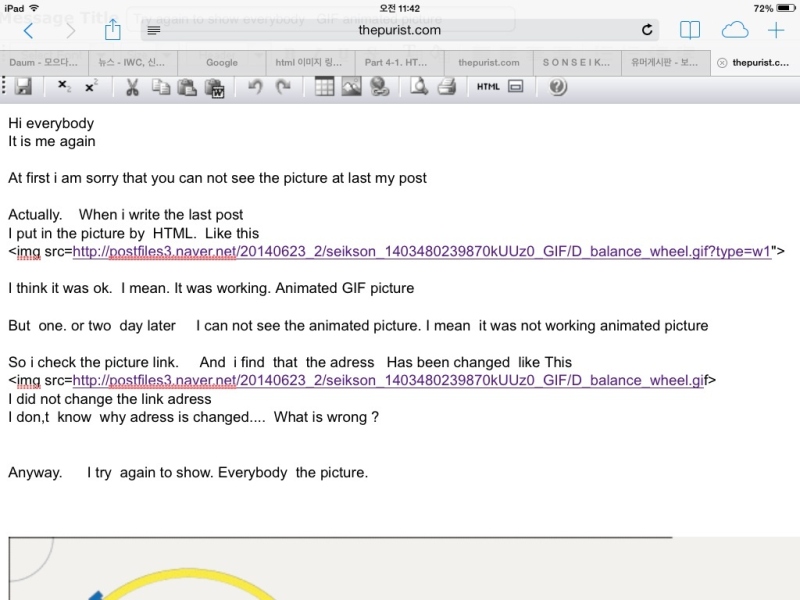

And i post. One more picture. For help. Understand
This message has been edited by sonseik on 2014-06-27 21:03:11 This message has been edited by sonseik on 2014-06-27 21:04:49
Try again to show everybody GIF animated picture
Hi Hi everybody It is me again At first i am sorry that you can not see the picture at last my post Actually. When i write the last post I put in the picture by HTML. Like this "> I think it was ok. I mean. It was working. Animated GIF picture But one...
you can't use the same escape wheel on two different forks
Both forks need to be under tension when locked to work properly and the same wheel can't do that to both simultaneously. _john
Agreed with ei8htohms.
That simply will not work. The escape wheel has to lock against a fork, and using the angle of draw, it holds the pallet fork in place against a banking point. If your second fork is floating in position, with no influence from the escape wheel, it would ...
