BaselWorld 2012 : L.U.C 8HF High Frequency
The latest offering from Chopard Manufacture, the L.U.C 8HF model, is definitely bound for the history books as the exceptional timepiece introducing the new L.U.C 01.06-L, the first ever movement with a high-frequency escapement to be chronometer-certified by the COSC. Beating at a frequency of 8 Hz - compared with 4 Hz for ordinary mechanical movements - meaning 57,600 vibrations per hour, this mechanical movement was conceived, developed and perfected by Chopard Technologies in Fleurier.
Faithfully pursuing its determination to push the limits of mechanical horology, Chopard unveils the L.U.C 8HF model, an exceptional timepiece housing the first high-frequency (8Hz) escapement to have successfully undergone the rigorous tests conducted by the Swiss Official Chronometer Testing Institute (COSC), a token of excellent precision and reliability. In this respect, it is entirely in line with the tradition of chronometer certification dear to the L.U.C collection.
57,600 vibrations/hour, COSC certified
After several years of studies and development, the engineers and watchmakers of Chopard Technologies and the horological research division of the Chopard Group, have succeeded in perfecting a mechanical movement beating at a frequency of 8 Hz, meaning 57,600 vibrations per hour and meeting the most stringent Swiss watchmaking standards.
In addition to its COSC certified precision, this L.U.C 01.06-L movement is distinguished by the highly adaptable nature of its high-frequency escapement, since it is indeed compatible with almost all existing L.U.C movements developed by Chopard Manufacture – a major step forwards that further consolidates the coherent nature of the company’s Fine Watchmaking collection.
High Frequency for enhanced reliability
The primary value of high frequency in watchmaking applications lies in a significant improvement in the precision timekeeping properties of a calibre, particularly in terms of rate resumption and stability. A higher number of vibrations of the balance means less sensitivity to disturbances, and Chopard’s technology breakthrough takes on its full meaning when viewed from this angle. For if the choice of high frequency implies enhanced reliability and consequently increased precision, it is quite logical that a product comprising this added value should be duly recognised by an official certification.

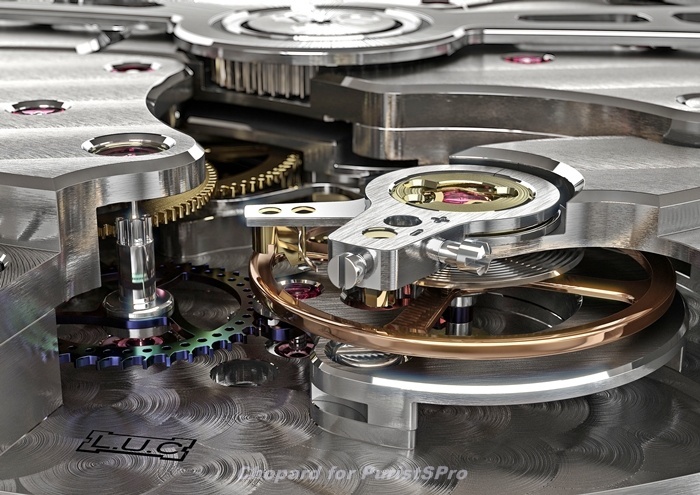

In addition to ensuring greater reliability, high frequency – which naturally requires more energy – is in this instance associated with a remarkable 60-hour power reserve generated by a single barrel. In terms of materials, the engineers at Chopard Technologies decided to work with silicon for certain escapement components (impulse-pin, lever, escape wheel) and developed a new means of fixing silicon on steel (patent pending).
Avant-garde design

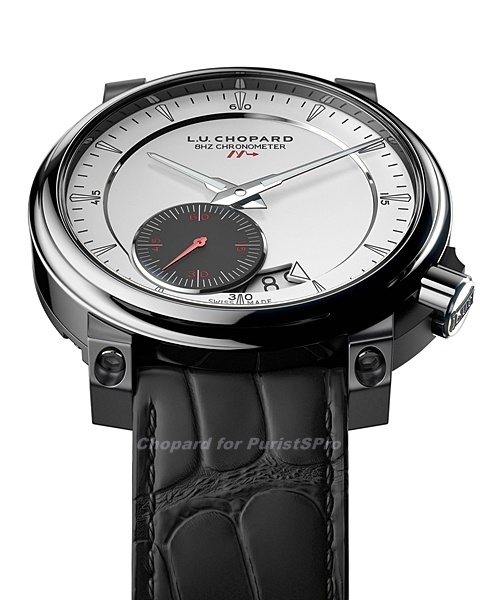

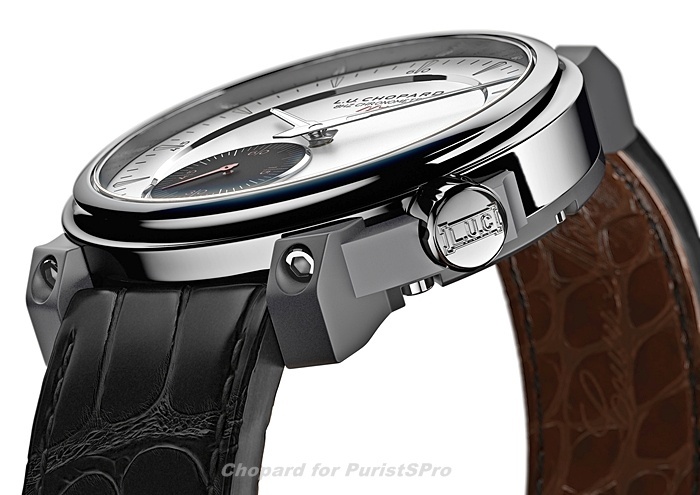

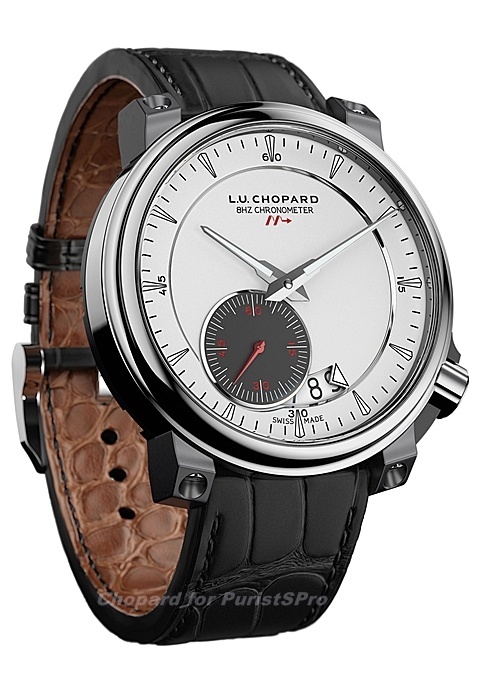

Entirely in keeping with the futuristic movement housed within, the 42 mm-diameter case of the L.U.C 8HF model is made of titanium. It is water resistant to 30 metres and distinguished by its crown at 4 o’clock, also in titanium and bearing the L.U.C logo.

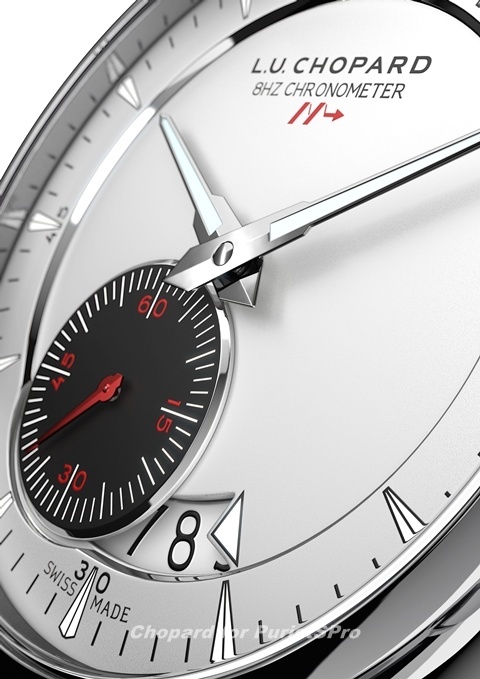

The date appears in a pointer-type display at 5.30, while the red small-second-hand at 7 o’clock travels far more smoothly than on ordinary watches thanks to the high-frequency escapement and its 57,600 vibrations per hour. The resolutely avant-garde case features titanium monobloc lugs and caseback with a matt finish. A magnifying glass built into the half-closed case-back is positioned just above the high-frequency escapement, providing a chance to appreciate its finer details.
The L.U.C 8HF model is teamed with a hand-sewn matt black alligator leather strap with a cognac-coloured alligator lining, fitted with a titanium pin buckle. It is issued in a first 100 pieces.
Case
• Titanium caseband
• Titanium bezel
• Titanium crown with L.U.C logo: 6.50 mm
• Titanium monobloc matt black caseback with integrated lugs and magnified window revealing the high-frequency escapement
•Total diameter: 42.00 mm
• Thickness: 11.47 mm
• Water resistance: 30 m
• Glareproofed sapphire crystal
Movement
• Mechanical self-winding: L.U.C 01.06-L
• Diameter: 28.80 mm
• Thickness: 4.95 mm
• Number of jewels: 31
• Frequency: 57,600 A/h (8 Hz)
• Power reserve: 60 hours
• Bridges adorned with Côtes de Genève
• Chronometer-certified (COSC)
Dial and hands
• Silver-grained dial with black small seconds counter
• Rhodiumed hour and minute hands
• Red small seconds hand
Functions and displays
• Central hour and minute hands
• Small seconds at 7 o’clock
• Date window at 5.30 with red arrow
Strap and buckle
• Hand-sewn matt black alligator leather with cognac-coloured alligator lining
• Titanium pin buckle
Ref. 161938-3001 First pre-production series of 100
57,600 vibrations/hour, COSC certified
After several years of studies and development, the engineers and watchmakers of Chopard Technologies and the horological research division of the Chopard Group, have succeeded in perfecting a mechanical movement beating at a frequency of 8 Hz, meaning 57,600 vibrations per hour and meeting the most stringent Swiss watchmaking standards.
In addition to its COSC certified precision, this L.U.C 01.06-L movement is distinguished by the highly adaptable nature of its high-frequency escapement, since it is indeed compatible with almost all existing L.U.C movements developed by Chopard Manufacture – a major step forwards that further consolidates the coherent nature of the company’s Fine Watchmaking collection.
High Frequency for enhanced reliability
The primary value of high frequency in watchmaking applications lies in a significant improvement in the precision timekeeping properties of a calibre, particularly in terms of rate resumption and stability. A higher number of vibrations of the balance means less sensitivity to disturbances, and Chopard’s technology breakthrough takes on its full meaning when viewed from this angle. For if the choice of high frequency implies enhanced reliability and consequently increased precision, it is quite logical that a product comprising this added value should be duly recognised by an official certification.
In addition to ensuring greater reliability, high frequency – which naturally requires more energy – is in this instance associated with a remarkable 60-hour power reserve generated by a single barrel. In terms of materials, the engineers at Chopard Technologies decided to work with silicon for certain escapement components (impulse-pin, lever, escape wheel) and developed a new means of fixing silicon on steel (patent pending).
Avant-garde design
Entirely in keeping with the futuristic movement housed within, the 42 mm-diameter case of the L.U.C 8HF model is made of titanium. It is water resistant to 30 metres and distinguished by its crown at 4 o’clock, also in titanium and bearing the L.U.C logo.
The L.U.C 8HF model is teamed with a hand-sewn matt black alligator leather strap with a cognac-coloured alligator lining, fitted with a titanium pin buckle. It is issued in a first 100 pieces.
Technical Details
Case
• Titanium caseband
• Titanium bezel
• Titanium crown with L.U.C logo: 6.50 mm
• Titanium monobloc matt black caseback with integrated lugs and magnified window revealing the high-frequency escapement
•Total diameter: 42.00 mm
• Thickness: 11.47 mm
• Water resistance: 30 m
• Glareproofed sapphire crystal
Movement
• Mechanical self-winding: L.U.C 01.06-L
• Diameter: 28.80 mm
• Thickness: 4.95 mm
• Number of jewels: 31
• Frequency: 57,600 A/h (8 Hz)
• Power reserve: 60 hours
• Bridges adorned with Côtes de Genève
• Chronometer-certified (COSC)
Dial and hands
• Silver-grained dial with black small seconds counter
• Rhodiumed hour and minute hands
• Red small seconds hand
Functions and displays
• Central hour and minute hands
• Small seconds at 7 o’clock
• Date window at 5.30 with red arrow
Strap and buckle
• Hand-sewn matt black alligator leather with cognac-coloured alligator lining
• Titanium pin buckle
Ref. 161938-3001 First pre-production series of 100
Press Release
Complications

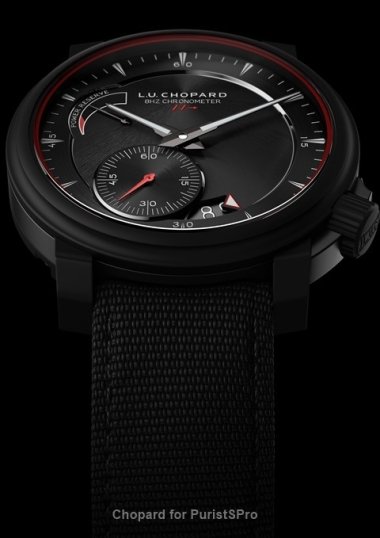

Discover the Chopard L.U.C 8HF Power Control, featuring a COSC-certified 8 Hz high-frequency movement and a black ceramic case. Explore its technical innovations.
1 replies2098 views
Complications
Explore the Ferdinand Berthoud FB 1 chronometer's innovative FB-T.FC movement, design philosophy, and technical details in this in-depth review. Discover collector insights.
7 replies6811 views
New Release

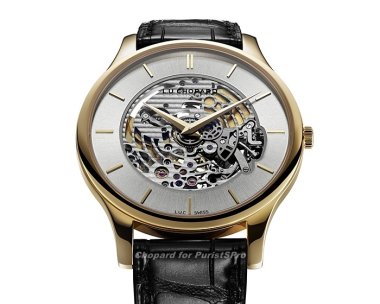

Discover the Chopard L.U.C XP Skeletec, a 2012 BaselWorld release featuring the manufacture's first ultra-thin skeletonized L.U.C Calibre 96.17-S movement. Limited to 288 pieces.
2 replies1315 views
Complications
Discover the Chopard L.U.C Tourbillon Only Watch 2013 Edition with rare Fleurisanne engraving and symbolic DNA motif. Learn about its craftsmanship.
7 replies2348 views
Complications
Explore the Chopard L.U.C Qualité Fleurier and the rigorous Fleurier Quality certification process, combining COSC, Chronofiable, and Fleuritest for ultimate watch performance.
0 replies900 views
Review
Discover the Chopard L.U.C 8HF Titanium, featuring the first COSC-certified 8Hz movement. Limited to 100 pieces, this high-frequency watch is a collector's rarity.
7 replies2206 views
New Release
Explore the Chopard L.U.C Quattro models from Baselworld 2015, featuring the L.U.C 98.01-L movement and new dial aesthetics.
5 replies1443 views
BaselWorld 2012 : L.U.C 8HF High Frequency
The latest offering from Chopard Manufacture, the L.U.C 8HF model, is definitely bound for the history books as the exceptional timepiece introducing the new L.U.C 01.06-L, the first ever movement with a high-frequency escapement to be chronometer-certifi...
Bravo, Chopard!
Kudos for another great technological advancement in the sake of precision and chronometry. Looking forward in learning more about it. Best, Alex
This is cool!
Congratulations, and thank you, Chopard. I cannot wait to see it! Best, CaliforniaJed
I wonder too ... an auspicious 8 then the perfect 10 ...
will have to ask the Team. Very likely, they have tested and comfortable with the reliability at 8Hz. Kong
Í can understand the technical difficulty on high frequency.
For 8Hz, silicon escapement is used. I can't imagine what material will be used for 10Hz. The titanium case looks well polished. It reminds me of PSM's Marin 1. Kong, I can't stand the date window lay out on the dial. Personally, I think it is ugly. Regar...
Very likely :-)
Welcome to our Chopard Forum. Breguet already selling their 10Hz .... Some details here: breguet.watchprosite.com Kong
Very interesting and ...
very disturbing in the mean time. The mouvement seems of a very hight interest but I must add that the aesthetics of this watch is not so easy to approach. The place of the small second dial, the printed indexes, the shape of the lugs or the hands, the cr...
Thrilled by the technical achievement, but...
still need to be convinced about the design. I love funky, and don't mind the placement of the subseconds, but from the photos the placement of the date just looks wrong. Look forward to seeing it in the metal sometime, or perhaps just waiting for future ...
57,600 A/h
" High frequency implies enhanced reliability " ??? Enhanced accuracy, yes. Reliability ? No way.
