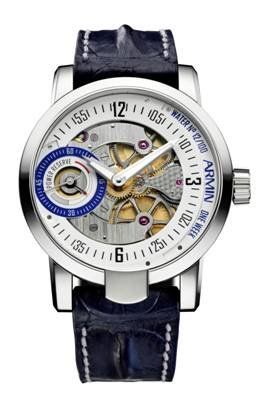

Armin Strom - One Week Collection
Armin by
Armin Strom's ONE WEEK Collection boasts truly exclusive inner workings.
It is equipped with the ARM09, the first manual wind-up caliber to be
manufactured completely in-house with a power reserve of seven days. In
accordance with Armin Strom's self-imposed standards, the movements are
all partly engraved by hand, beveled and polished and allow for a good
view of the mechanism.
The
visible crown wheels and the hand-regulating mechanism are the main
elements of the three-part dial with off-center time indication and give
the watch an innovative and technical appearance. The distinctive case
available in titanium, stainless steel, PVD-coated black stainless steel
or in 18 karat rose gold together with the hand-sewn alligator strap
complete the distinctive design of this precious timepiece.
The "One Week" Collection
The series is available in four versions: Water, Air, Earth and Fire and limited to 100 pieces per element.
Armin Strom AG loses no time in becoming an authentic watch manufacturer
Following the launch of the first of its caliber to be produced entirely in-house, the "ARM09", the company Armin Strom AG has now become a manufacturer of its own movements and achieved the status of an exclusive watch manufacturer. This has been another important stepping stone on the way to a bright and promising future paving the way to larger degree of independence.

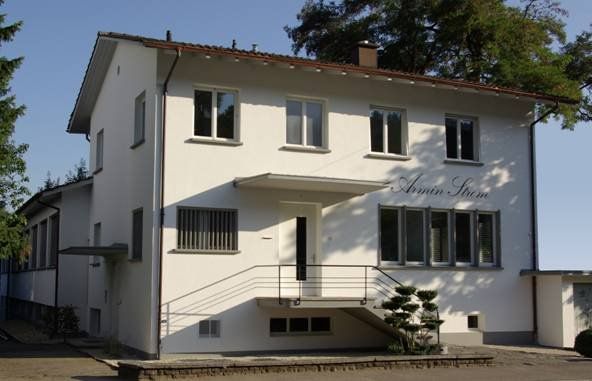

Last summer, the company moved into new premises at Bözingenstrasse 46 in the watch-making center of Biel/Bienne, Switzerland. The ground floor production hall covering an area of 150m² contains all the machines necessary to manufacture a complete movement and is geared towards the manufacture of limited and small quantities. Light and spacious ateliers offer ideal working conditions for the watchmakers and hand engravers.
Dynamic teamwork and the total commitment of all those involved enabled the caliber known as "ARM09" (A rmin R eserve M arche 09) to be launched in a comparatively short time. The first public presentation in November 2009 was a great success.
The watch movement consisting of 146 individual components was presented as part of an entire Armin by Armin Strom collection at the 2010 BaselWorld World Watch and Jewelry Show.
Technical specifications :
ONE WEEK Earth - ST10-WE.40
Movement manufacture:
Armin Strom Caliber ARM09
Mechanical manual wind-up with 7-day power reserve and off-center time indication
Frequency: 18,000 bph, rubies: 34
Number of individual components: 146
Case:
Stainless steel PVD-coated black
Sapphire crystal and case back with double anti-reflective coating
Diameter: 43.40 mm
Height: 13.00 mm
Water resistant to 50m
Watch dial:
Power reserve display and small seconds dial at the 9 o'clock position
Hour and minute display visible crown wheels
Color black
Watch strap:
Genuine alligator leather - "horn back"- strap in black, hand-sewn
US Retail:
$24,200
ONE WEEK Air - TI10-WA.11
Movement manufacture:
Armin Strom Caliber ARM09
Mechanical manual wind-up with 7-day power reserve and off-center time indication
Frequency: 18,000 bph, rubies: 34
Number of individual components: 146
Case:
Titanium
Sapphire crystal and case back with double anti-reflective coating
Diameter: 43.40 mm
Height: 13.00 mm
Water resistant to 50m
Watch dial:
Power reserve display and small seconds dial at the 9 o'clock position
Hour and minute display visible crown wheels
Color white/light blue
Watch strap:
Genuine alligator leather - "horn back"- strap in white, hand-sewn
US Retail:
$26,800
ONE WEEK Water - ST10-WW.05
Movement manufacture:
Armin Strom Caliber ARM09
Mechanical manual wind-up with 7-day power reserve and off-center time indication
Frequency: 18,000 bph, rubies: 34
Number of individual components: 146
Case:
Stainless steel
Sapphire crystal and case back with double anti-reflective coating
Diameter: 43.40 mm
Height: 13.00 mm
Water resistant to 50m
Watch dial:
Power reserve display and small seconds dial at the 9 o'clock position
Hour and minute display visible crown wheels
Color white/dark blue
Watch strap:
Genuine alligator leather - "horn back"- strap in dark blue, hand-sewn
US Retail:
$24,200
ONE WEEK Fire - RG10-WF.5N
Movement manufacture:
Armin Strom Caliber ARM09
Mechanical manual wind-up with 7-day power reserve and off-center time indication
Frequency: 18,000 bph, rubies: 34
Number of individual components: 146
Case:
18kt rose gold
Sapphire crystal and case back with double anti-reflective coating
Diameter: 43.40 mm
Height: 13.00 mm
Water resistant to 50m
Watch dial:
Power reserve display and small seconds dial at the 9 o'clock position
Hour and minute display visible crown wheels
Color black/rose gold
Watch strap:
Genuine alligator leather - "horn back"- strap in black or brown, hand-sewn
US Retail:
$33,900

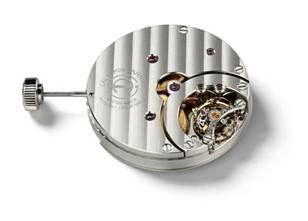

Caliber ARM09 (A rminR eserveM arche09) Characteristics
|
Functions: |
Hour, minute, small second, power reserve display |
|
Wind-up: |
Manual wind-up with crown wheels turning on the dial side |
|
Driving: |
Twin mainspring barrels made of special brass alloy, specifically developed for brass-brass contact, main springs with a total length of 1800 mm and a blade strength of 0.088 mm |
|
Gear train: |
Through-hardened pinions, pinion leaves polished, wheels turned in non-abrasive manner and interlocking profile milled in the rolling procedure. |
|
Plates and bridges: |
Produced from thermally relaxed watch brass |
|
Rubies: |
Rubies individually produced for Armin Strom |
|
Escapement: |
Escape wheel and pallets made of massive gold with hardened functional areas |
|
Regulating system: |
Genuine screwed balance with gold screws, adjusting of the mass moment of inertia by four clamped steel screws, Breguet spiral curve |
|
Frequency: |
18,000 A/h |
|
Number of rubies: |
34 rubies |
|
Number of individual parts: |
146 |
|
Diameter: |
36.60mm |
|
Height: |
6.20mm |
|
Power reserve: |
7 days |
PRESS RELEASE
