During the late 1960s, commercial work in the oceans
and seas created professional diving organizations that needed tool watches
designed for conducting safe diving operations at greater depths – known as
saturation diving.
This led to the development of the first ‘ultra water
resistant’ watches. In collaboration with COMEX - a France-based professional
dive company which is considered as the NASA of the sea - Rolex developed its
“Submariner” model to meet the most stringent technical and professional demands
of the professional deep-sea diver.
In the process, Rolex eventually produced a very different
watch from the Submariner - the “Sea Dweller” – whose genesis has already been described
on the forum:
rolex.watchprosite.com
rolex.watchprosite.com
COMEX divers not only needed solutions for water
resistance at extreme depth, they also faced the danger of explosive
decompression caused by helium penetrating the interior of the watch (divers
breathed the mixture of oxygen and helium within their hyperbaric chamber after

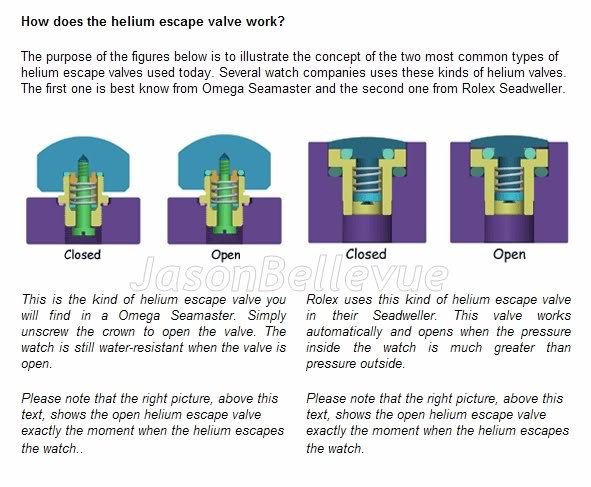

lengthy deep sea dives). Rolex collaborated with COMEX to develop a solution by

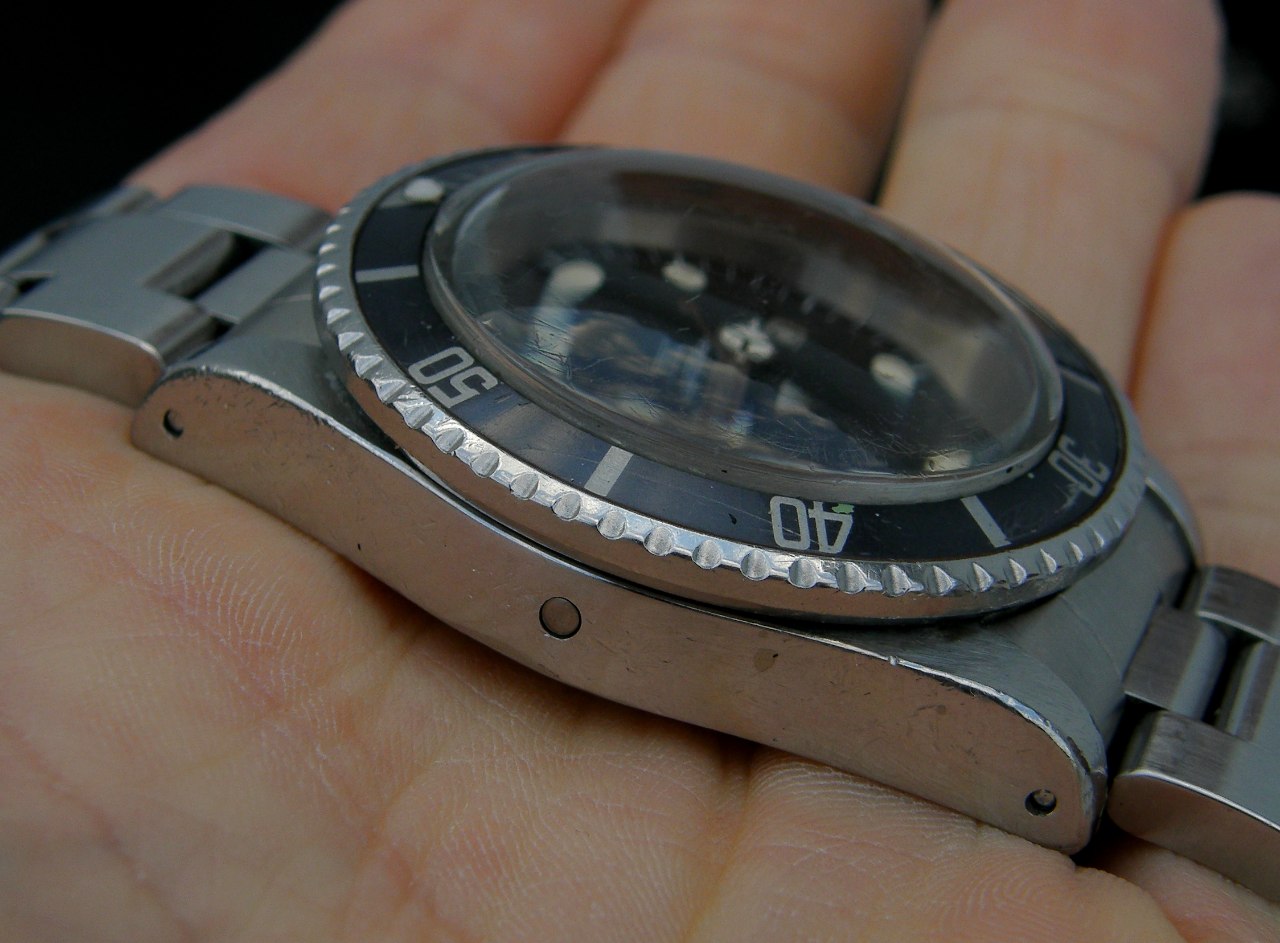

installing a one-way pressure escape valve on the side of the watch case, at
the nine o’clock position. The one-way valve will begin to equalize the
pressure inside the watch when the difference between the exterior and interior
of the watch exceeded 2.5 kg. per sq. cm.
The Helium Gas Escape Valve (HEV) was featured and
tested on the Single Red and Double Red Patent Pending Submariner Sea-Dwellers,
circa 1967-1969. Once the testing was successfully completed and Patent of the
HEV approved, COMEX placed a special order with Rolex for the supply of a number
of dive watches featuring the HEV; the first batch consisted of ten thin case
Sea Dweller - for the top divers only - and Submariner. The ref. 5513 COMEX
watches with HEV (an improved version introduced post Patent approval) that
followed (circa 1972) were mostly produced with a small or medium sized issue
number engraved on the case back and a plain matt non-logo dial. The following
model was the same watch with only a special reference for Comex, the 5514.
After some years, the
need for increased water resistance led to the delivery of an additional batch
of Sea Dwellers
These watches were delivered to COMEX from 1977 to 1981, with pretty
distinctive dials: compared to the regular 1665 dials, they have a 600m rating (instead
of 610) and do not say “sea dweller”.

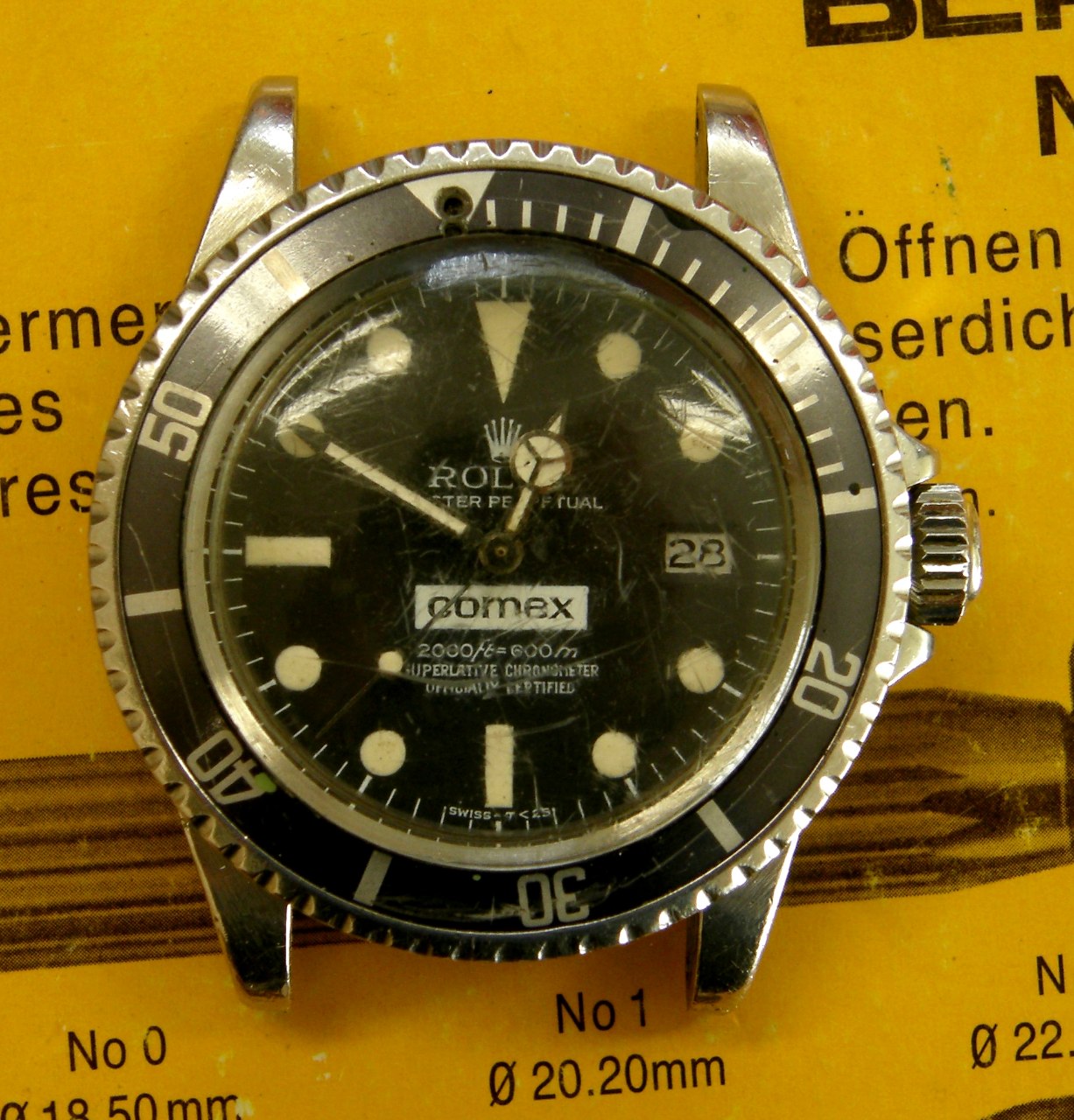

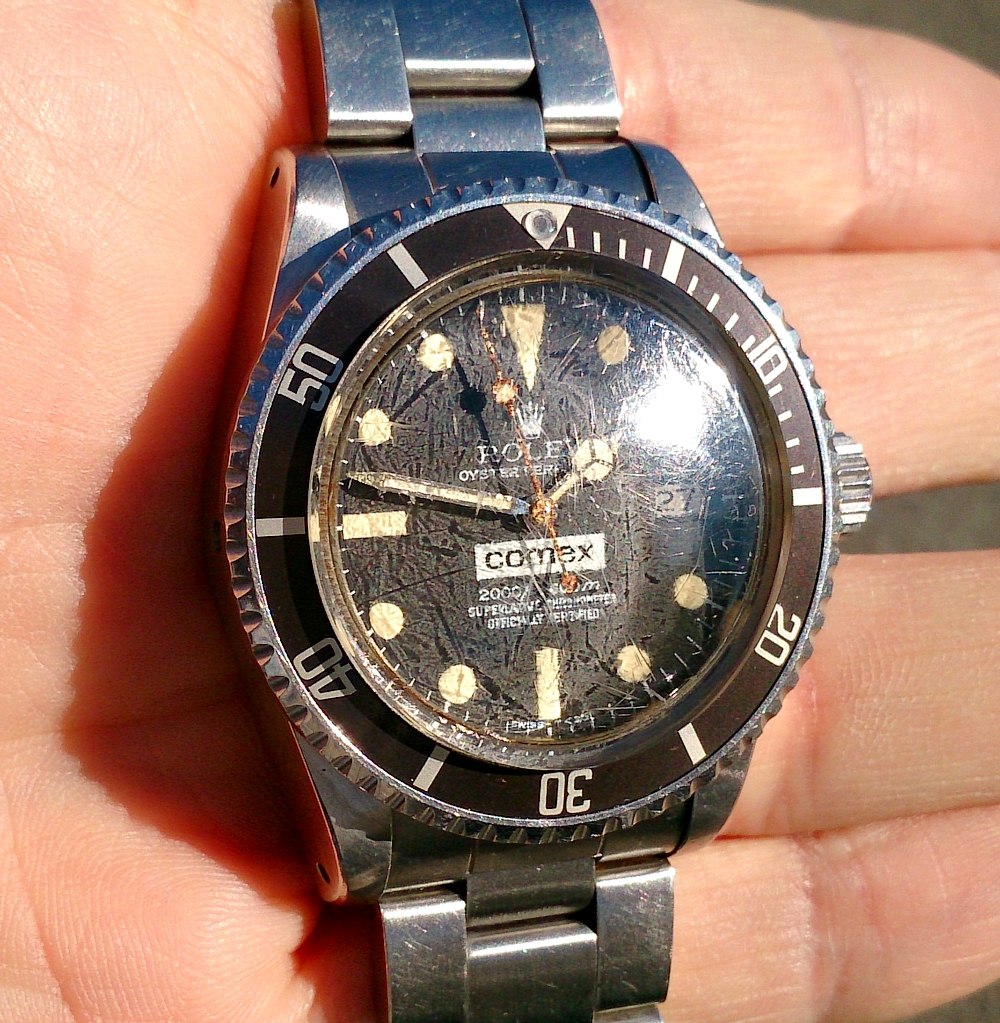

Here’s a close up of this very special dial, nicknamed
the Pisani dial:
The COMEX numbers for these watches were in the range
of 2000-2300 with only 300 delivered. The first 100 watches have a “double Red”
type caseback, with the large straight “Rolex” engraving. That’s the very
desirable “first serie”, the holy grail of Comex collectors.

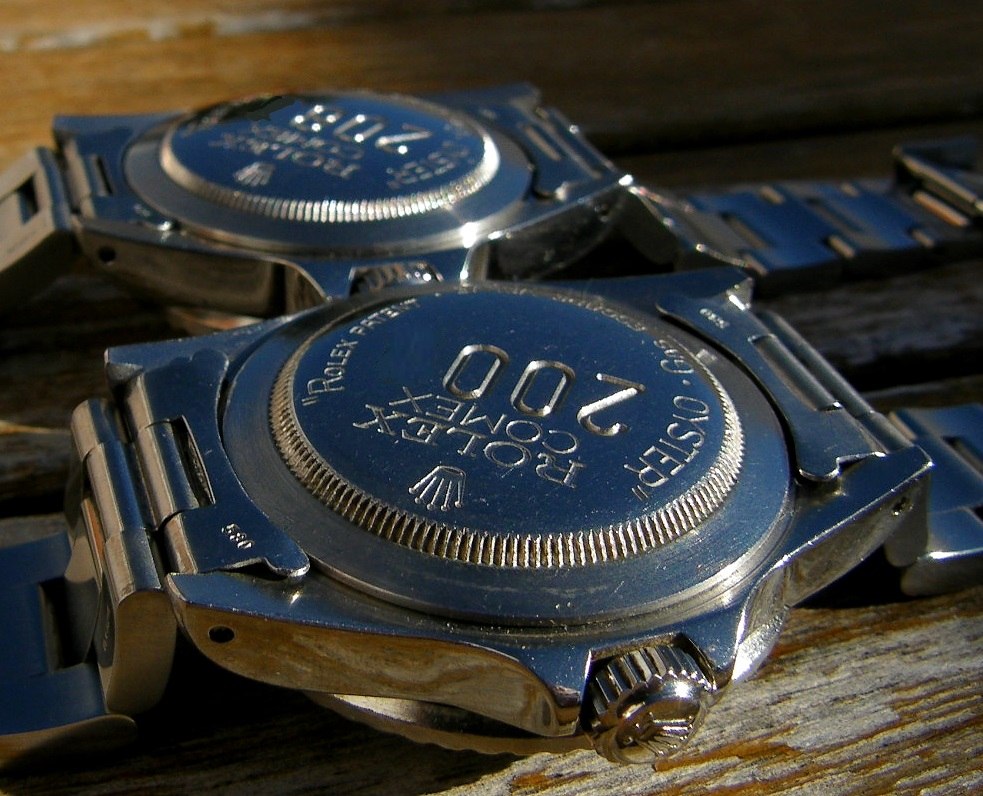

Here’s a close up of a first serie caseback, in
unpolished condition. Isn’t that a beautiful engraving ?

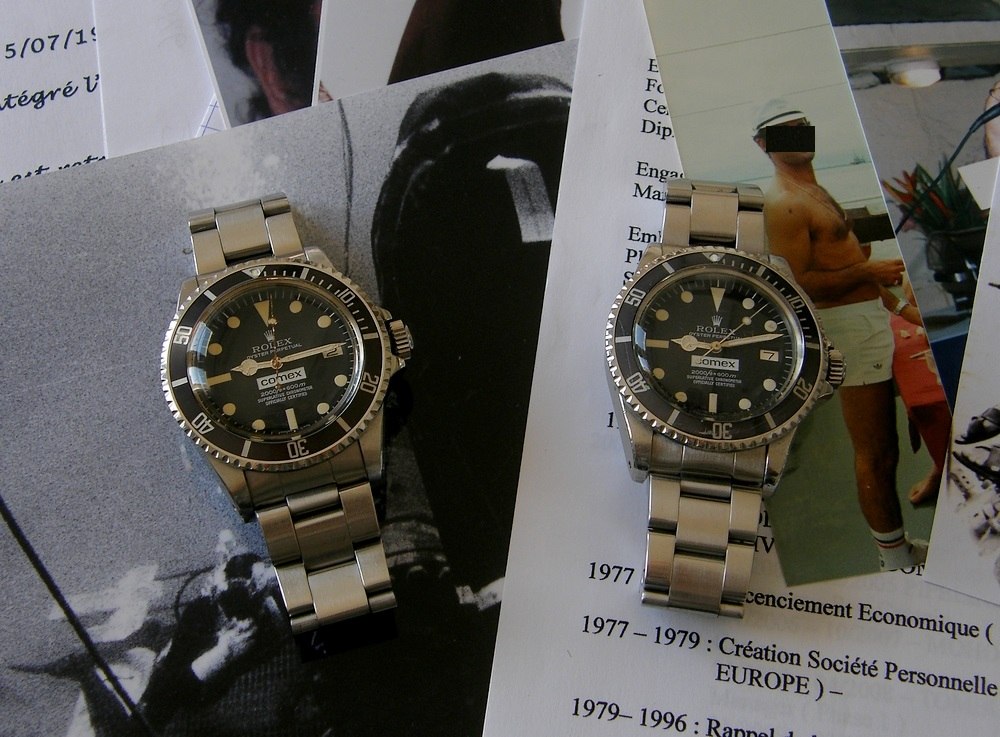

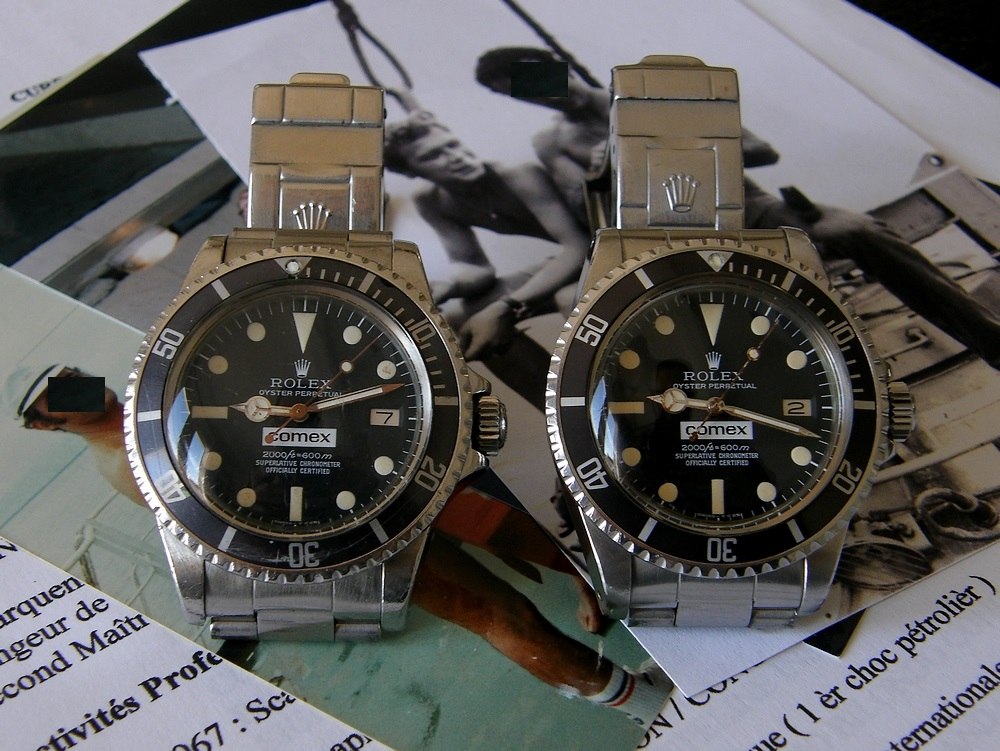

Over the years, I was lucky enough to buy two of these
watches from their first owners, two ex Comex divers. The two watches have
quite similar stories: they were both delivered in the mid 1970’s and used
intensively in underwater work, especially in Africa and the North Sea. I have
bought these watches in raw condition, never touched up by any collector or dealer…that’s how a Comex should be and that's priceless IMHO !

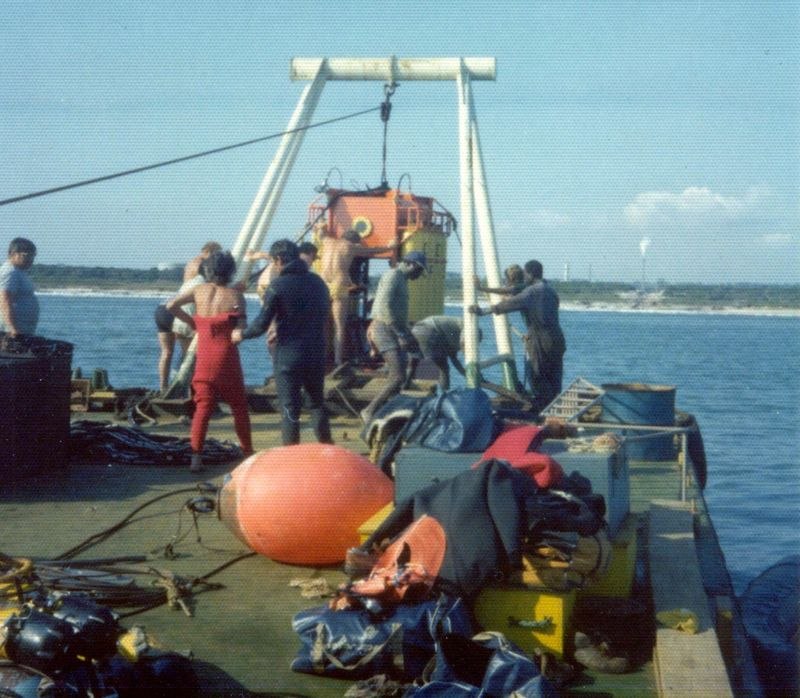

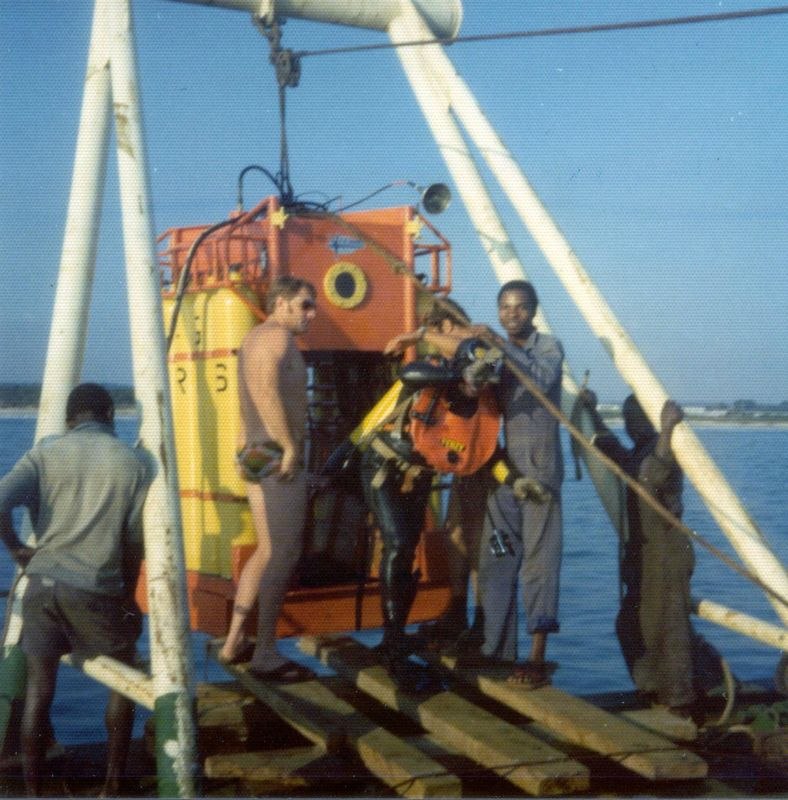

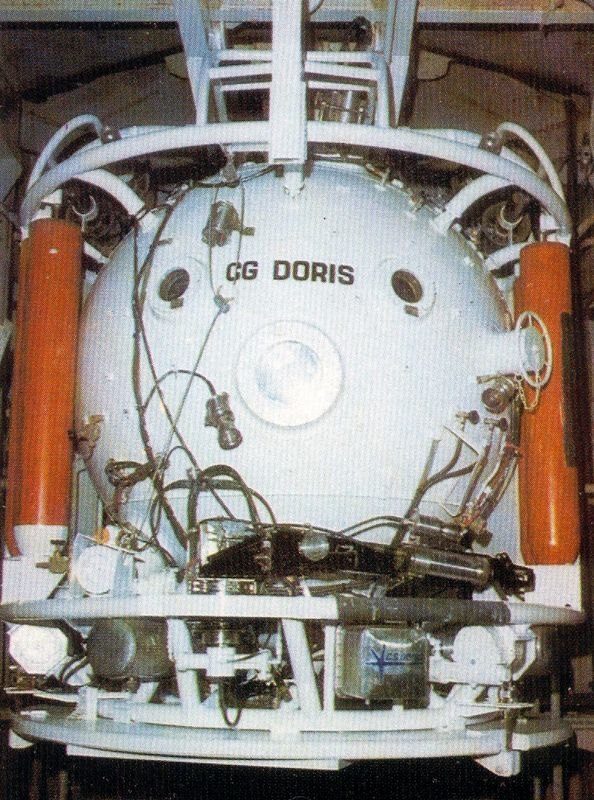

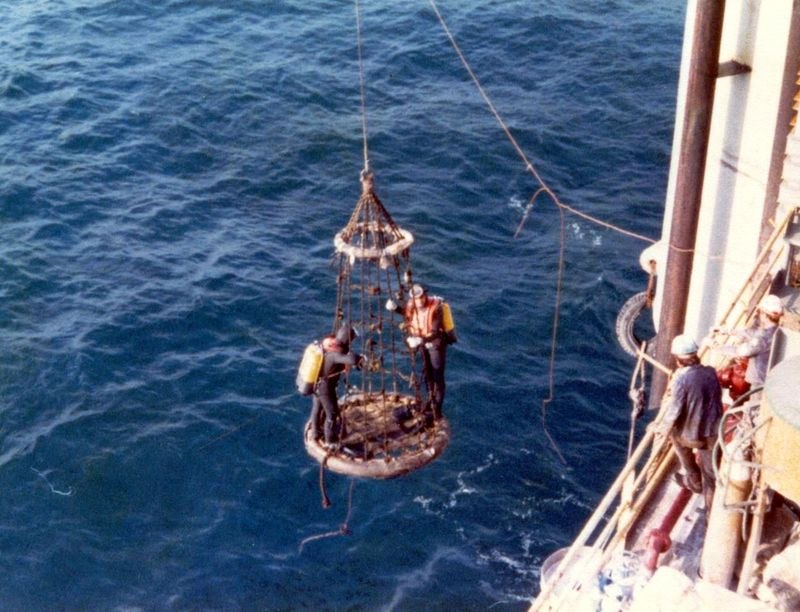

The watches belonged to two good friends, who have worked together on some occasions. I got plenty of informations and documentation with the watches. Here are a couple of pictures taken in Gabon in 1976:

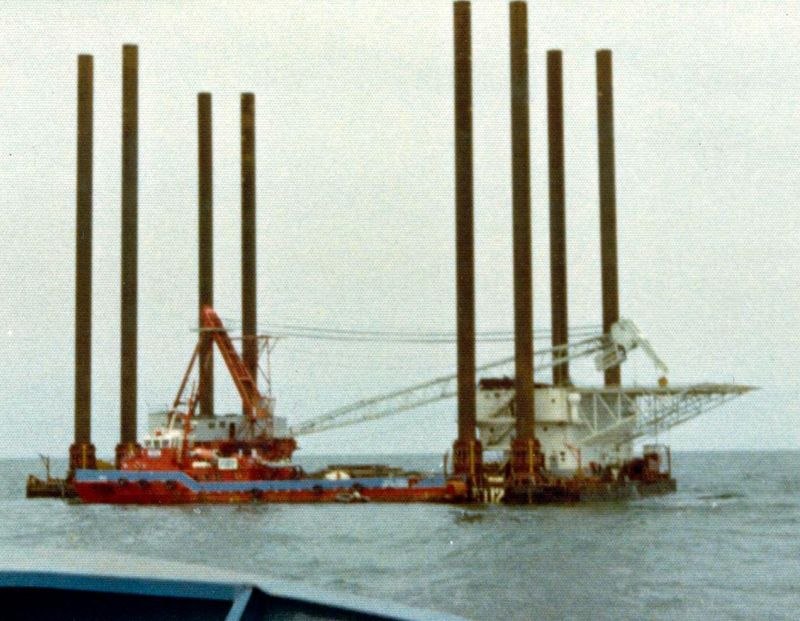

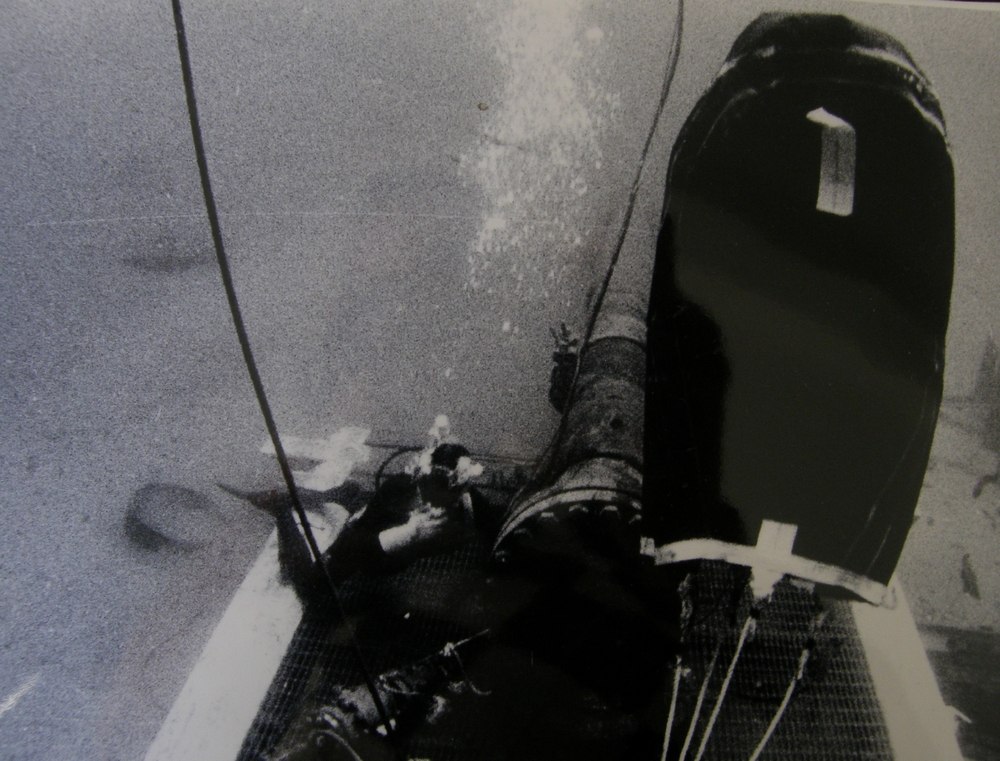

A great picture of one of the divers connecting
oil pipes at a depth of 104m under the Sandokan barge:

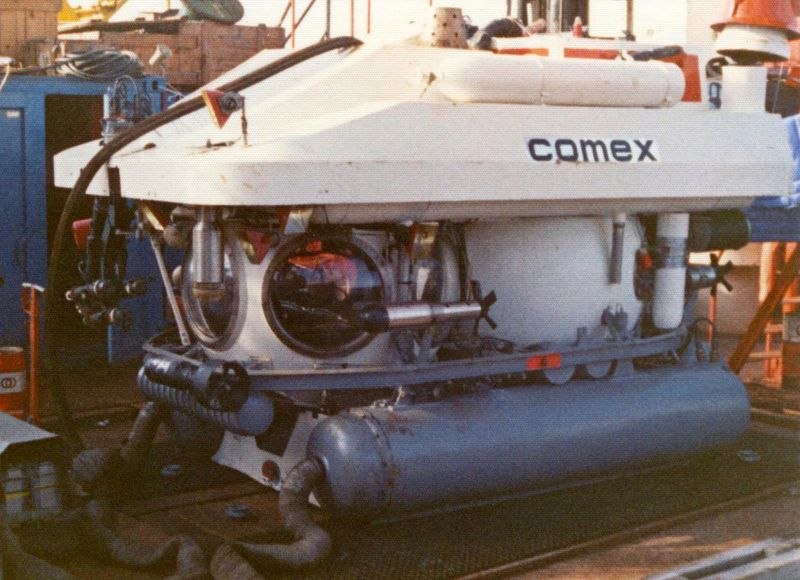

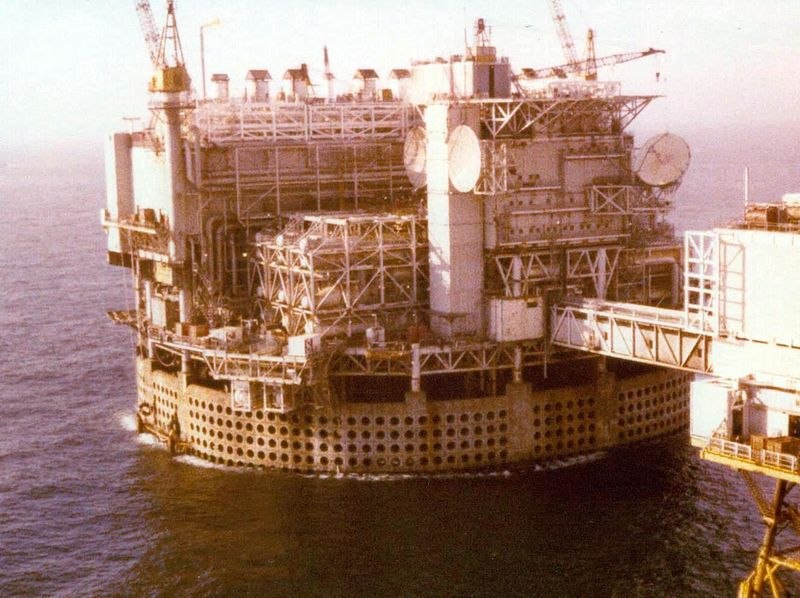

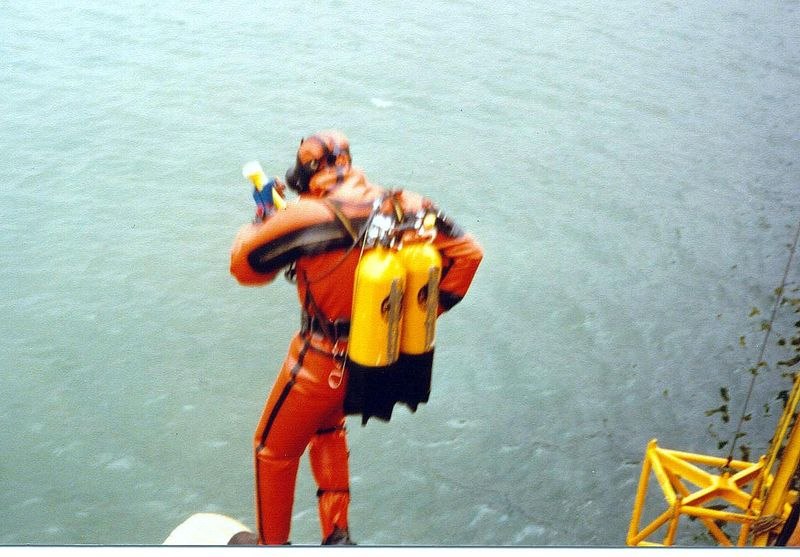

Here are some more
pictures of underwater work in Norway in 1979:

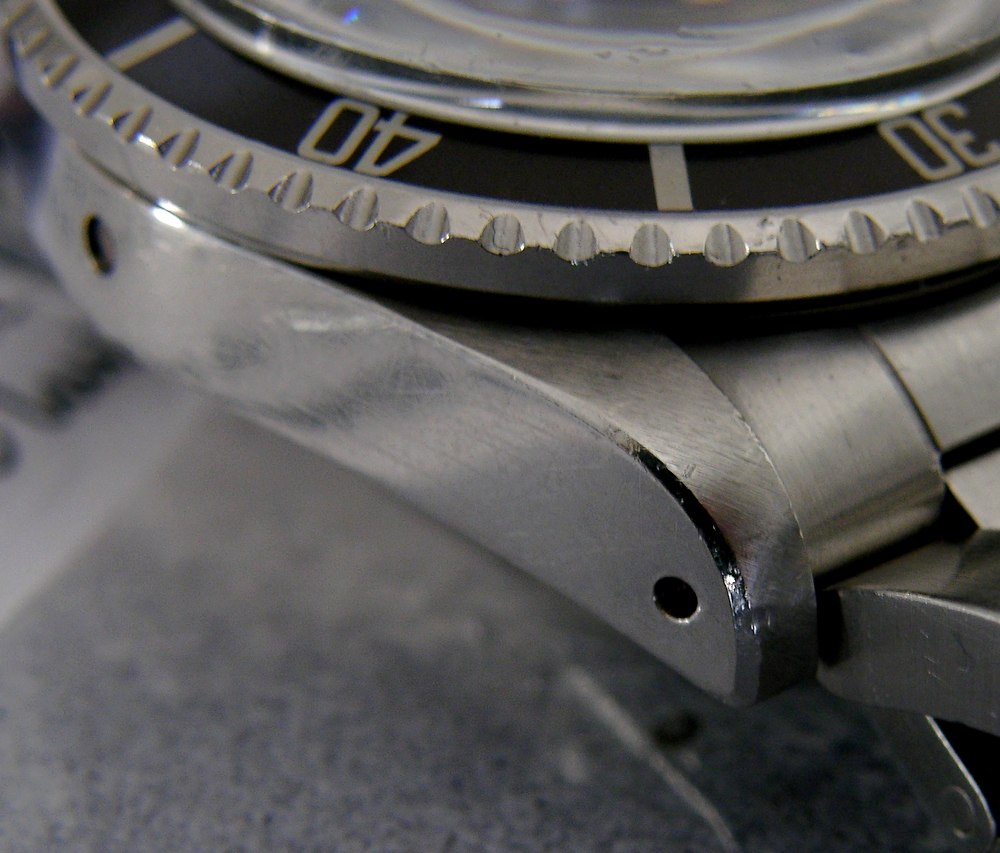

The timepieces definitely show scars from their extreme working
conditions.
It’s a great feeling
to have brought these two working mates back together after all these years. If they
could speak, they would have amazing stories to tell !
