Cazalea, a respected member of the WatchProSite community, delves into the fundamental science behind quartz timekeeping. His original post meticulously explains the piezoelectric effect and the precise mechanics that allow quartz crystals to achieve remarkable accuracy. This exploration is crucial for understanding a technology that revolutionized horology and continues to underpin many modern timepieces.

15 collectors discussing this on the WatchProSite forumJoin the Conversation →

Chemically, quartz is a specific form of a compound called silicon dioxide. Quartz is a piezoelectric material: that is, when a quartz crystal is subject to mechanical stress, such as bending, it accumulates an electrical charge across some of its planes as the molecules slide against each other. For example, crystals were used in low-end phonograph (record player) cartridges: The movement of the stylus (needle) flexes a quartz crystal, which produces a small voltage, which is amplified and played through speakers. The reverse effect, also holds true; if an electrical charge is fed into across the crystal, it will bend.

A Quartz Crystal is generally used as the frequency determining device in a watch. When a voltage source is applied to a specially-trimmed, thin piece of quartz crystal, it begins to change shape producing a piezoelectric effect. When the physical size and thickness of a piece of quartz crystal is tightly controlled and fed an electrical current, we make it produce specific vibrations, known as the crystals “characteristic frequency”. Once cut and shaped, the crystal only operates at that frequency; its size and shape determine its constant output.

For watches, 32768 is the normally-used frequency. Why? Because 32768= 2¹⁵ (32768 divided by 2, 15 times) equals one pulse per second. A small circuit does the dividing work, and the resulting pulse moves a tiny motor which moves the second hand, and through a train of gears, the minute and hour hands.

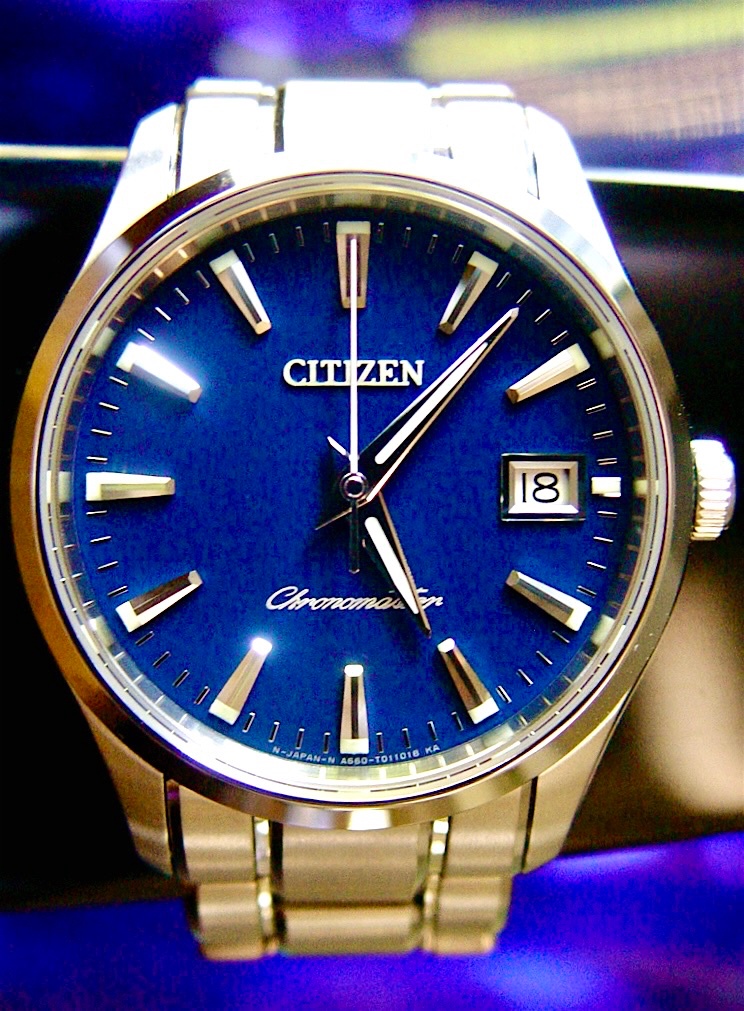

The Chronomaster shown here is accurate to +/- 5 seconds per year.

If you really want to learn more, this Wikipedia Article will help you (or put you to sleep)...

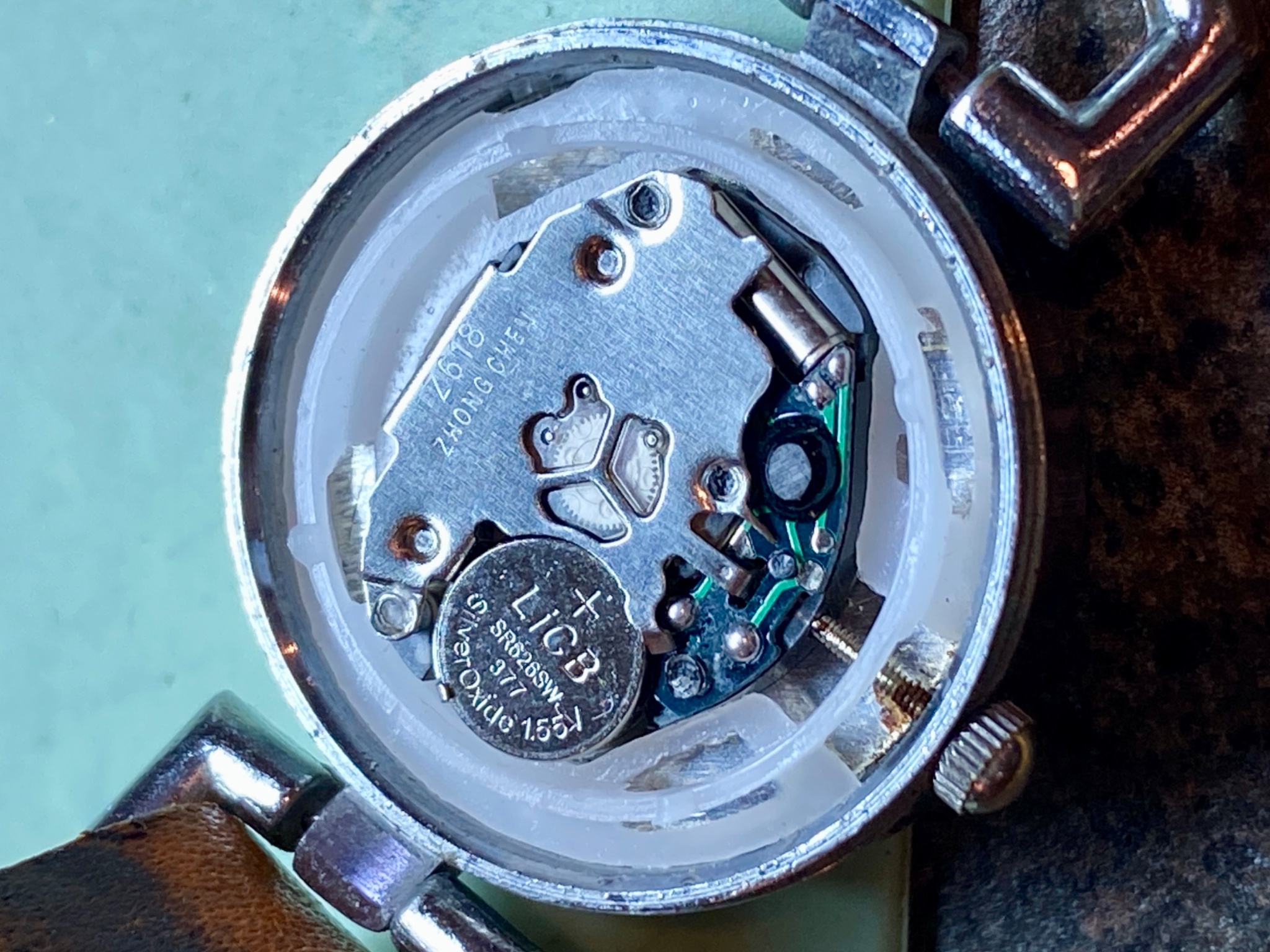

Quartz watches can be very cheap and produced by the millions:

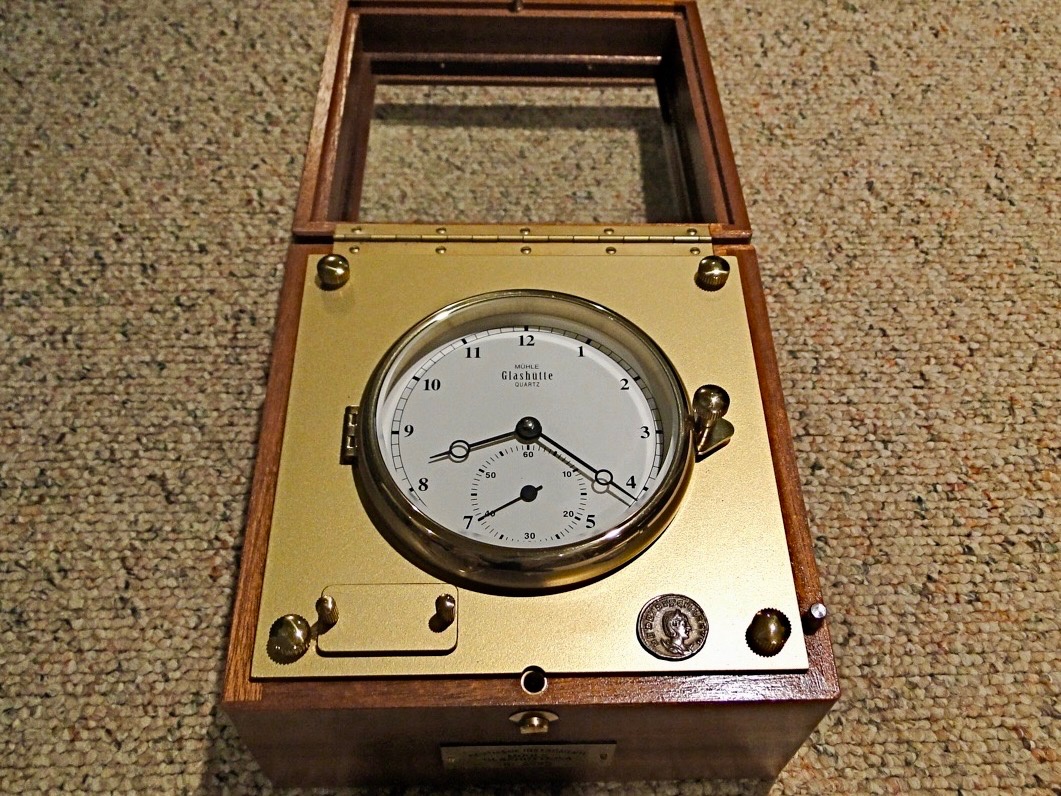

or quite expensive and used for a reference on marine voyages (independent of land or air signals)

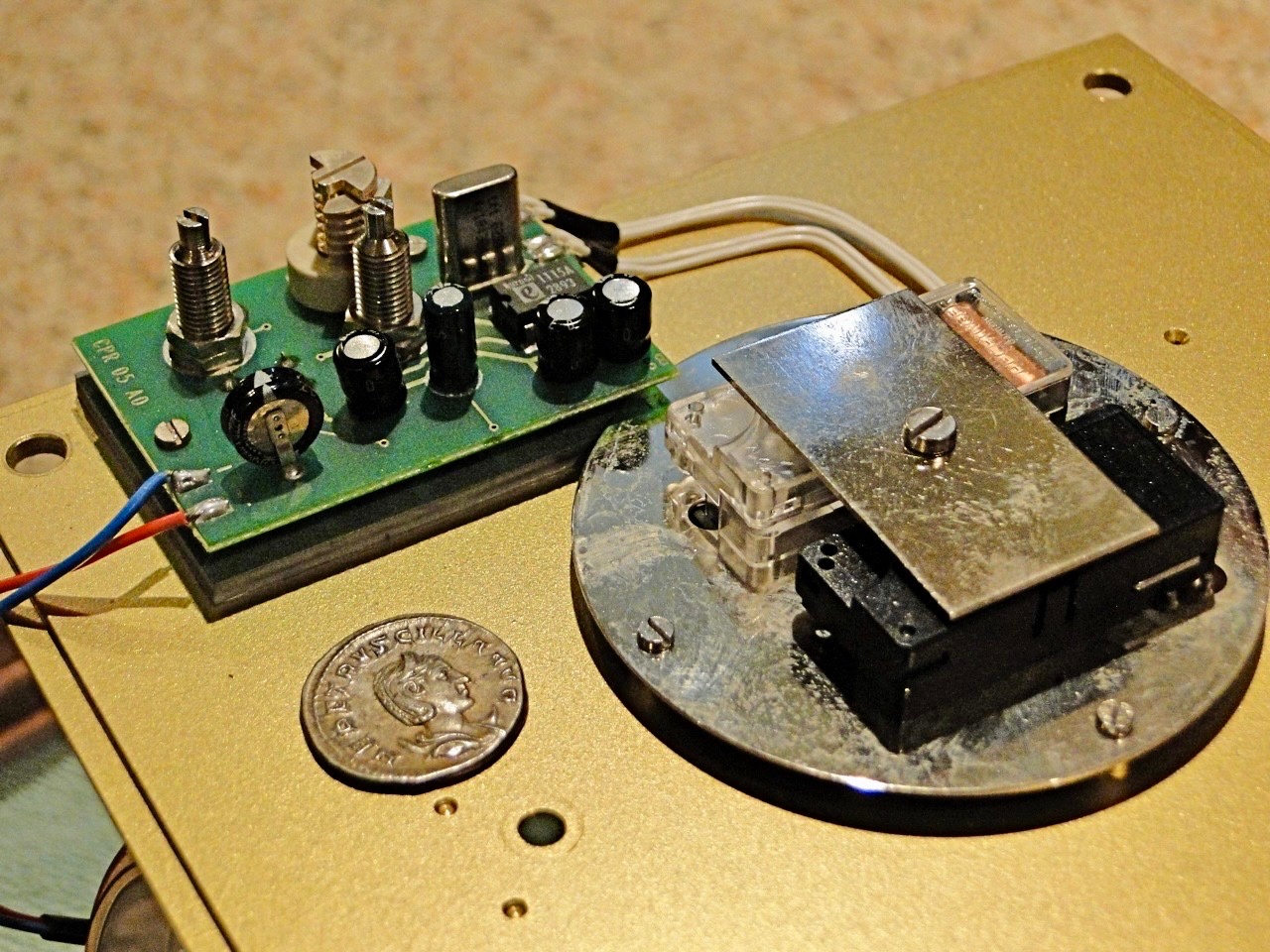

The crystal is in the vertical metal case.

Cheers,

Cazalea

About the Citizen The Chronomaster Ref. CTQ57-0953

The Citizen Chronomaster, particularly models like the CTQ57-0953, represents the pinnacle of Citizen's high-accuracy quartz (HAQ) watchmaking. Emerging from a rich lineage of Japanese quartz innovation, the Chronomaster line was established to showcase Citizen's technical prowess, offering an alternative to traditional mechanical luxury. It stands as a direct competitor to Grand Seiko's own HAQ offerings, embodying a philosophy of precision and understated excellence that has defined Japanese horology for decades. These watches are often considered the spiritual successors to Citizen's earlier, highly accurate quartz movements, refined for the modern era under "The Citizen" sub-brand.

At the heart of this Chronomaster is the Caliber A660, a thermocompensated high-accuracy quartz movement rated to an astonishing +/- 5 seconds per year. This level of precision far surpasses standard quartz movements and even most mechanical chronometers. Beyond its accuracy, the A660 features a perpetual calendar, eliminating the need for manual date adjustments. The watch's design language is one of refined simplicity, featuring a deep blue dial with meticulously applied, faceted indices and sharp dauphine hands. The case and bracelet are crafted from Citizen's proprietary Super Titanium, a surface-hardened titanium that offers superior scratch resistance and lightness compared to stainless steel, while maintaining a brilliant, polished finish.

For collectors, the Citizen Chronomaster CTQ57-0953 holds a unique position. It appeals to those who prioritize technical achievement and uncompromising accuracy over overt branding or mechanical romanticism. Its relative rarity outside of the Japanese domestic market, combined with its exceptional build quality and precision, makes it a highly regarded "insider's choice" among enthusiasts. The Chronomaster offers a compelling value proposition, delivering a level of finishing and timekeeping performance that often commands significantly higher prices in other luxury segments, solidifying its status as a serious contender in the high-end quartz landscape.

Specifications

Case: Super Titanium

Diameter: 37mm

Dial: blue

Key Points from the Discussion

The 'Black Box' effect in quartz watches, where the internal mechanism is less visible and seemingly less understandable than in mechanical watches, contributes to a perceived disconnect for some enthusiasts.
The Q factor, a measure of an oscillator's efficiency, highlights the superior energy storage and return of a quartz oscillator (around 1,000,000) compared to a mechanical balance (around 1,000).
Despite its age, quartz technology represents one of the last significant innovations in the watch world, with some modern quartz watches achieving impressive accuracy, such as +/- 7 seconds per year.
The star on the dial of certain quartz watches, like the Chronomaster, signifies a high-accuracy crystal movement, often accompanied by precise second hand alignment.
Some collectors are reconsidering quartz watches for their convenience, accuracy, and the ability to enjoy a luxury brand without the complexities of a mechanical movement.
While low-end phonograph cartridges utilize the piezoelectric effect of quartz, high-end cartridges often employ moving magnet or moving coil designs, which require an external power supply and coils to create a magnetic field.

The Discussion

Gregineugene

Mar 16, 2026

In some ways this is far more astonishing than a collection of springs and gears.

I think part of the disconnect that quartz watches suffer is that they have the "Black Box" effect whereas mechanical watches allow us to see and (at least pretend to) understand the mechanism and its effects.

quattro

Mar 16, 2026

Thanks for the explanation.

I didn't know that the same “mechanism” or reaction was used on low-end phonograph cartridges: just out of curiosity, what other “mechanism” is used on high-end phonograph cartridges? Best, Emmanuel

Gregineugene

Mar 16, 2026

Here's a good illustrated explaination:

www.crutchfield.com

quattro

Mar 16, 2026

Great, thank you!

Best, Emmanuel

cazalea

Mar 16, 2026

Moving magnet and coil

that version needs a small external power supply and the coils shown in Greg's post, to create a magnetic field through which the magnet moves

Thomas_3

Mar 16, 2026

I have not owned a quartz watch in

many, many years but am seriously considering jumping back in with my next watch purchase. Strongly thinking about the Cartier tank watch in quartz, A. never need to wind/set B. Just want to try a quartz watch again. C. No one will be the wiser, and D. It's my money and I can do with it what I want.
