quattro's meticulous overview of the Patek Philippe Ref. 542 HU, one of the brand's earliest and most elusive World Time wristwatches, offers an invaluable resource for collectors. With only four examples believed to exist, this deep dive into their distinct characteristics and recent discoveries highlights the ongoing thrill of horological archaeology. His detailed analysis, informed by expert research, provides critical insights into the subtle variations that define these ultra-rare timepieces.
The ref.
542 HU (“Heures Universelles” - Universal Hours) is one of
Patek Philippe's
earliest World Time wristwatch references.
It is also one of the most singular and rare, with only 4 examples believed to exist.
The very first one as recently been unearthed by Edoardo Bolla.
So, now that the
4 examples are
known, time has come to dedicate a
proper thread to this reference, which I have
previously reviewed inside a thread dedicated to Finnish independent watchmaker
Reima Koivukoski's “
Wanderer”, which is a tribute to the ref. 542.
PATEK PHILIPPE REF. 542
All four examples share 27.1 x 7.8 x 35.3 mm cases made by Wenger with so-called “brancard lugs” and a 10''' HU rhodium-plated caliber.
According to
@minutesdevoyages, who studied this reference in depth and to whom this thread owes a great deal (check
his post here), the
four examples “can be seen as
two different
batches” of
two watches each:
- The first batch includes the two watches with movements nos. 818'180 and 818'200, which are clearly mentioned in Louis Cottier's archives: both feature a smooth bezel with 30 city names in French (except "London" & "California" on no. 818'200) & a single-tone 24h ring.
- The second batch includes the two watches with movements nos. 821'239 and 823'542: both feature a notched bezel with 31 city names in English & a two-tone 24h ring.
Let's have a look at each of them one by one.

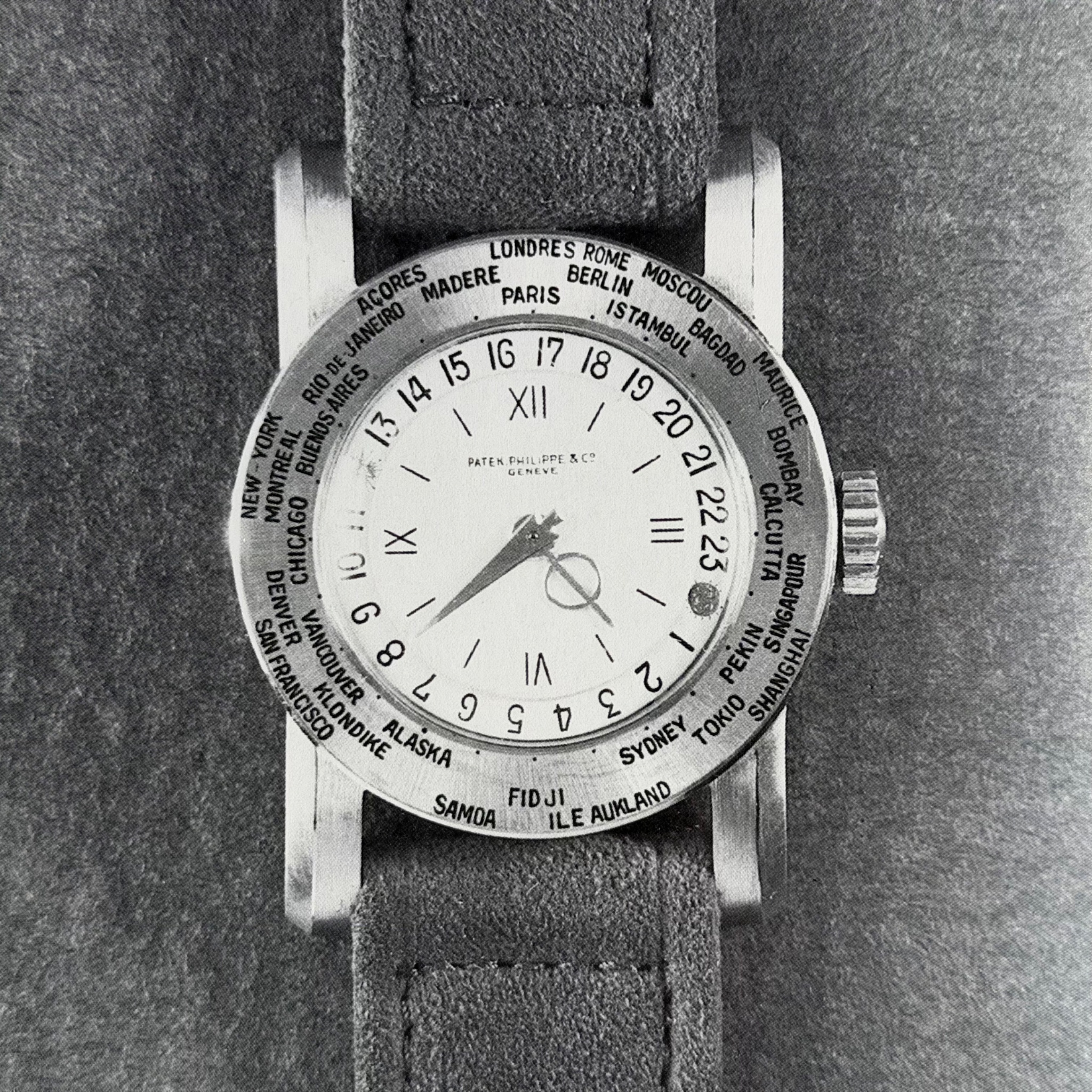

1/ Movement n° 818'180

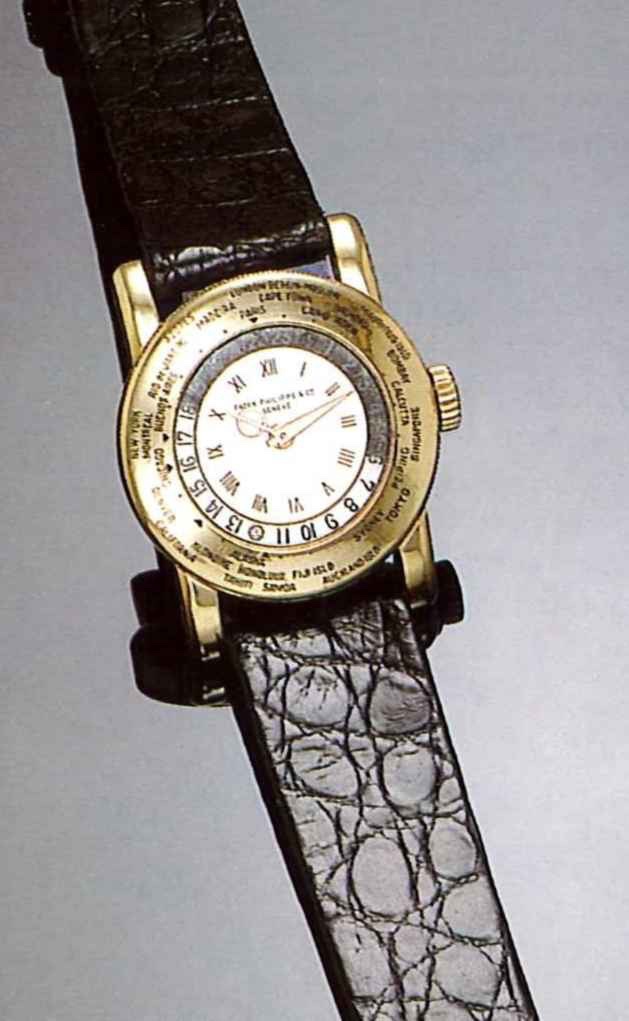

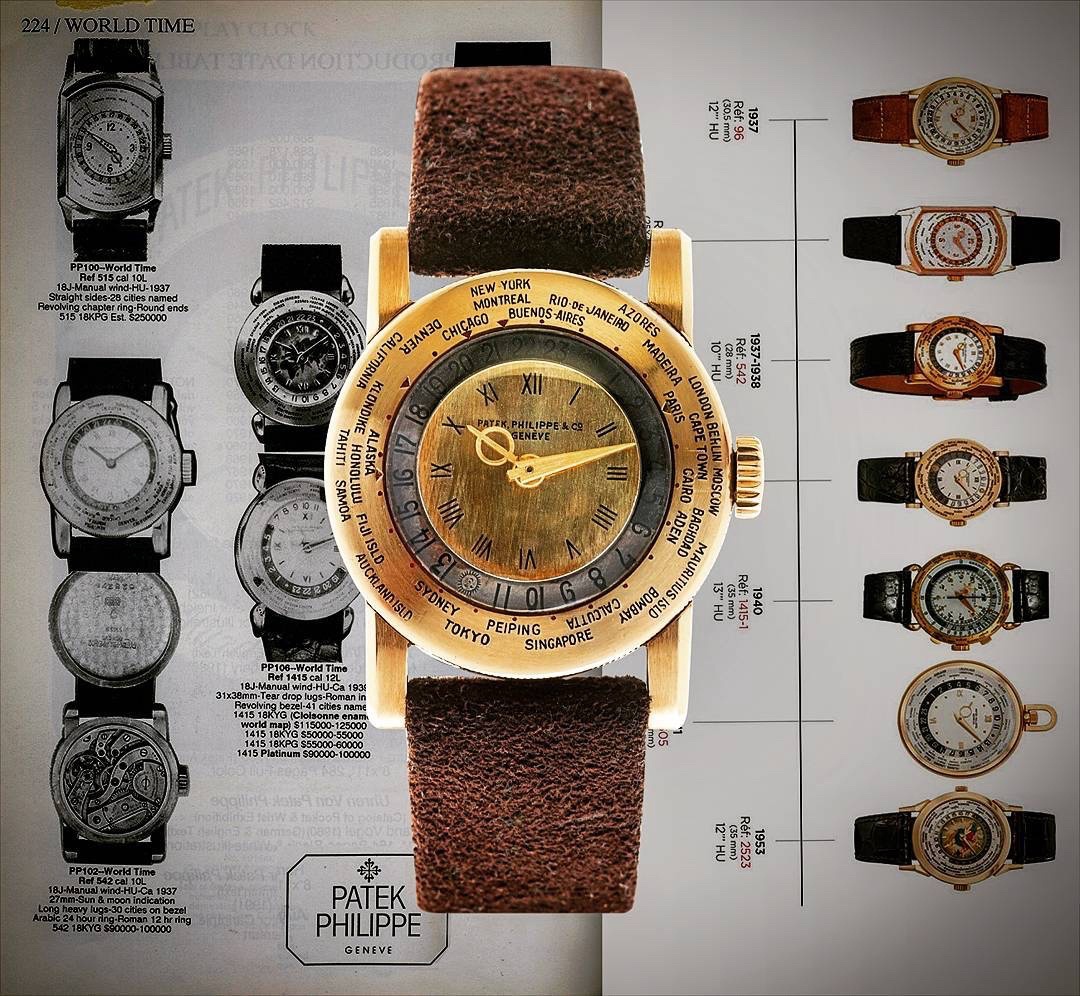

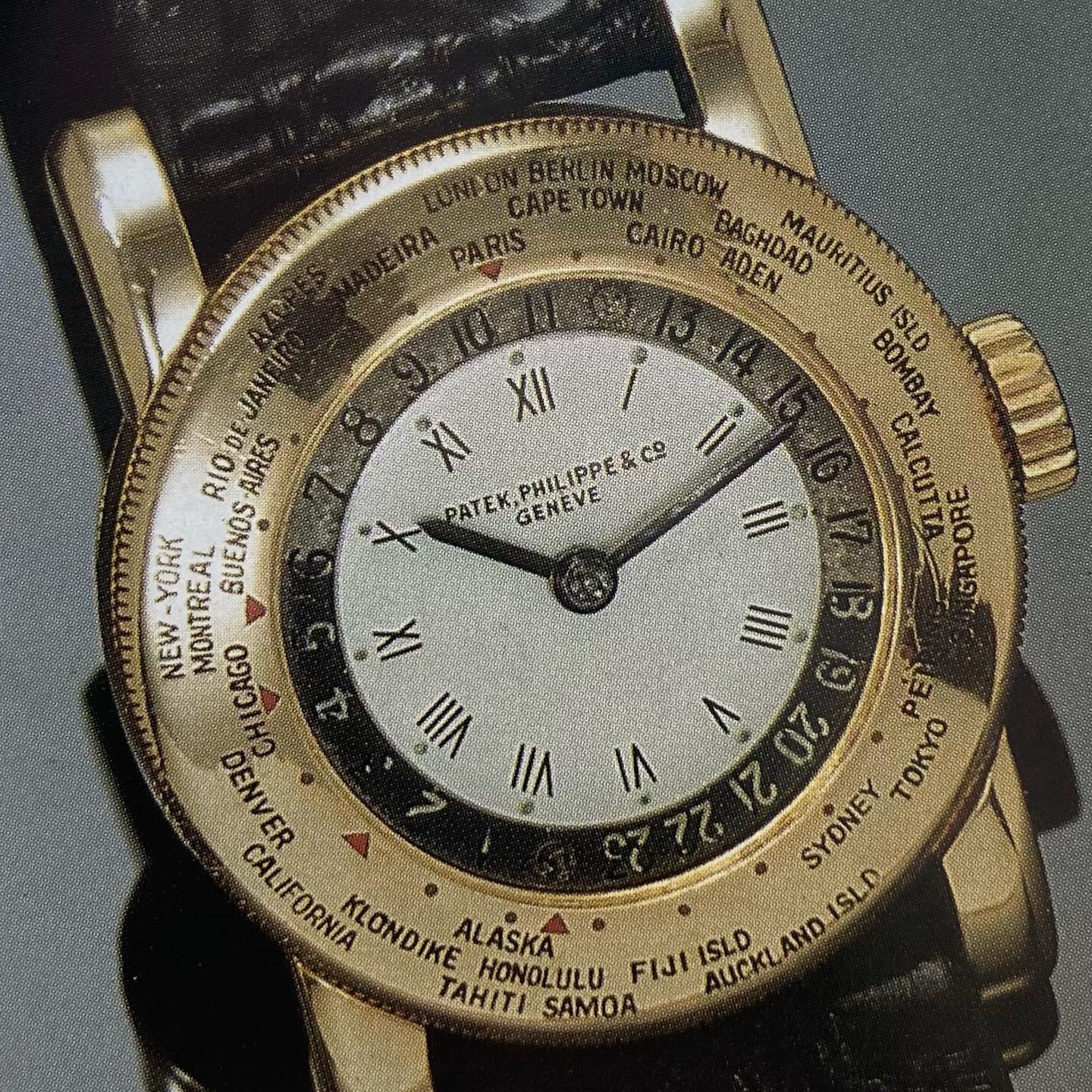

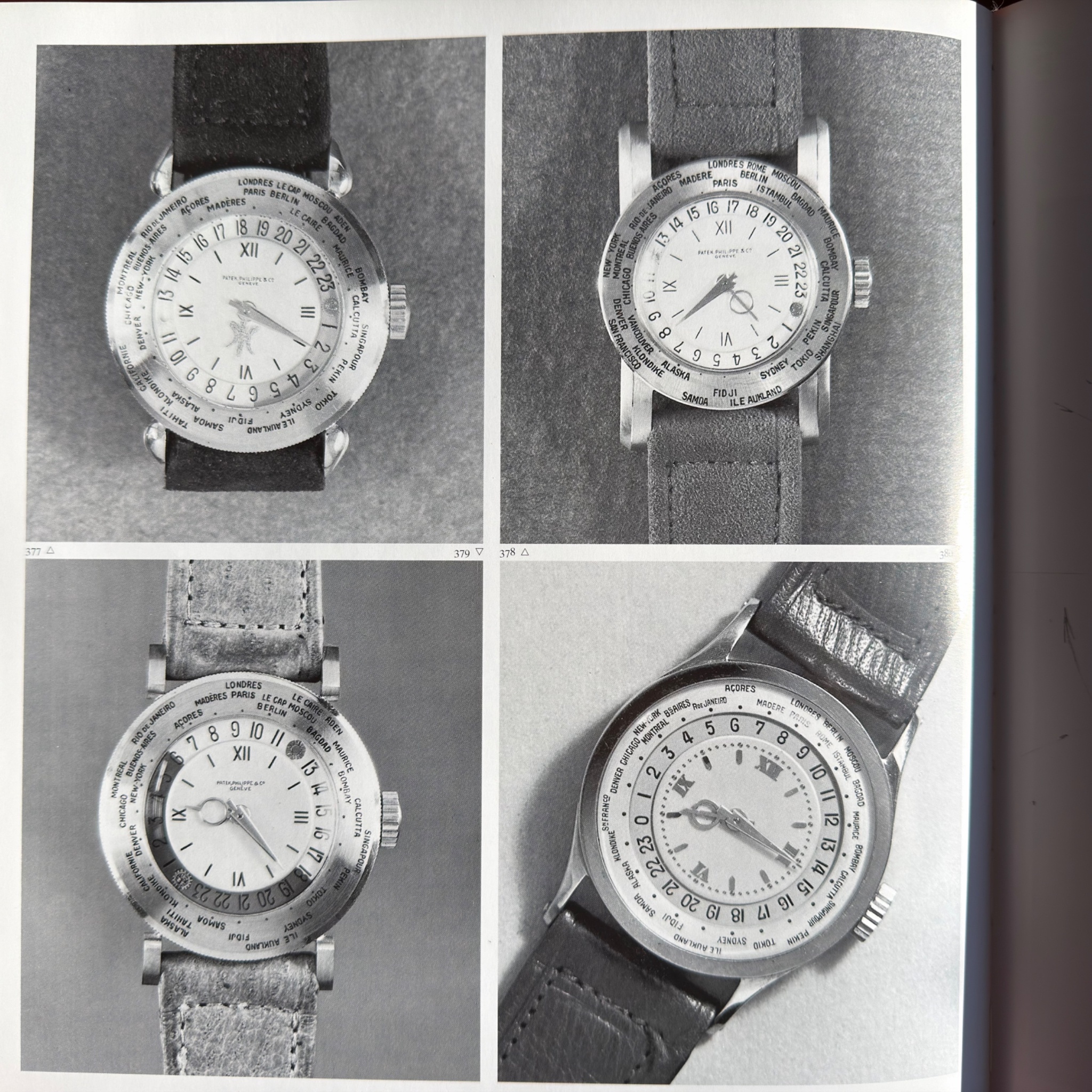

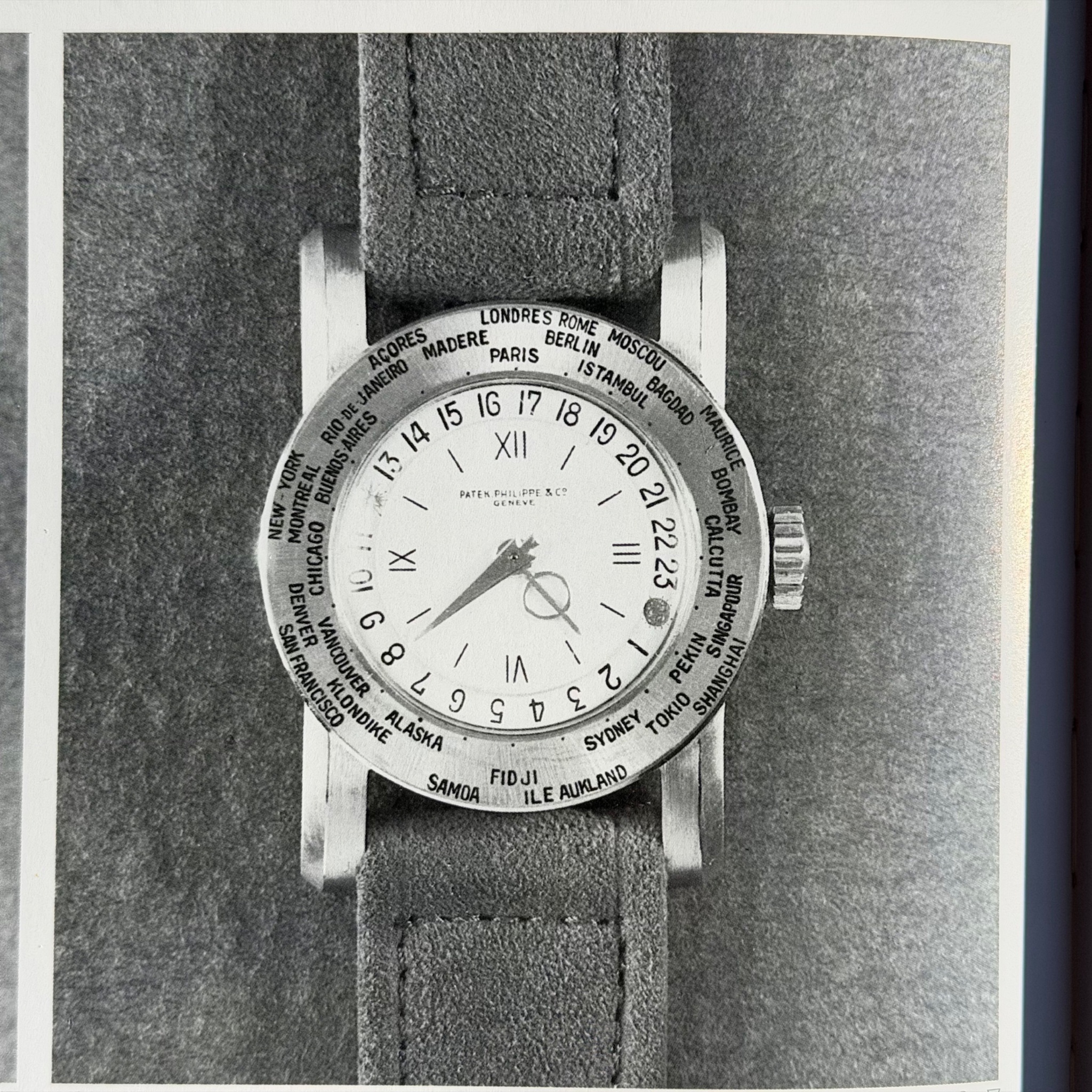

This example from 1937, featuring “globe” or “lunar” gold hands (also called “fancy” hands) and a long signature dial was previously only known through the page 244 of the book by Martin Huber & Alan Banbery, Patek Philippe Genève Wristwatches (photos are from my own copy of the book).
But, very
recently, it was
discovered, clearly
identified by its movement number (818'180) and
posted by
Edoardo Bolla, aka
@tasti_tondi (check
his post here).

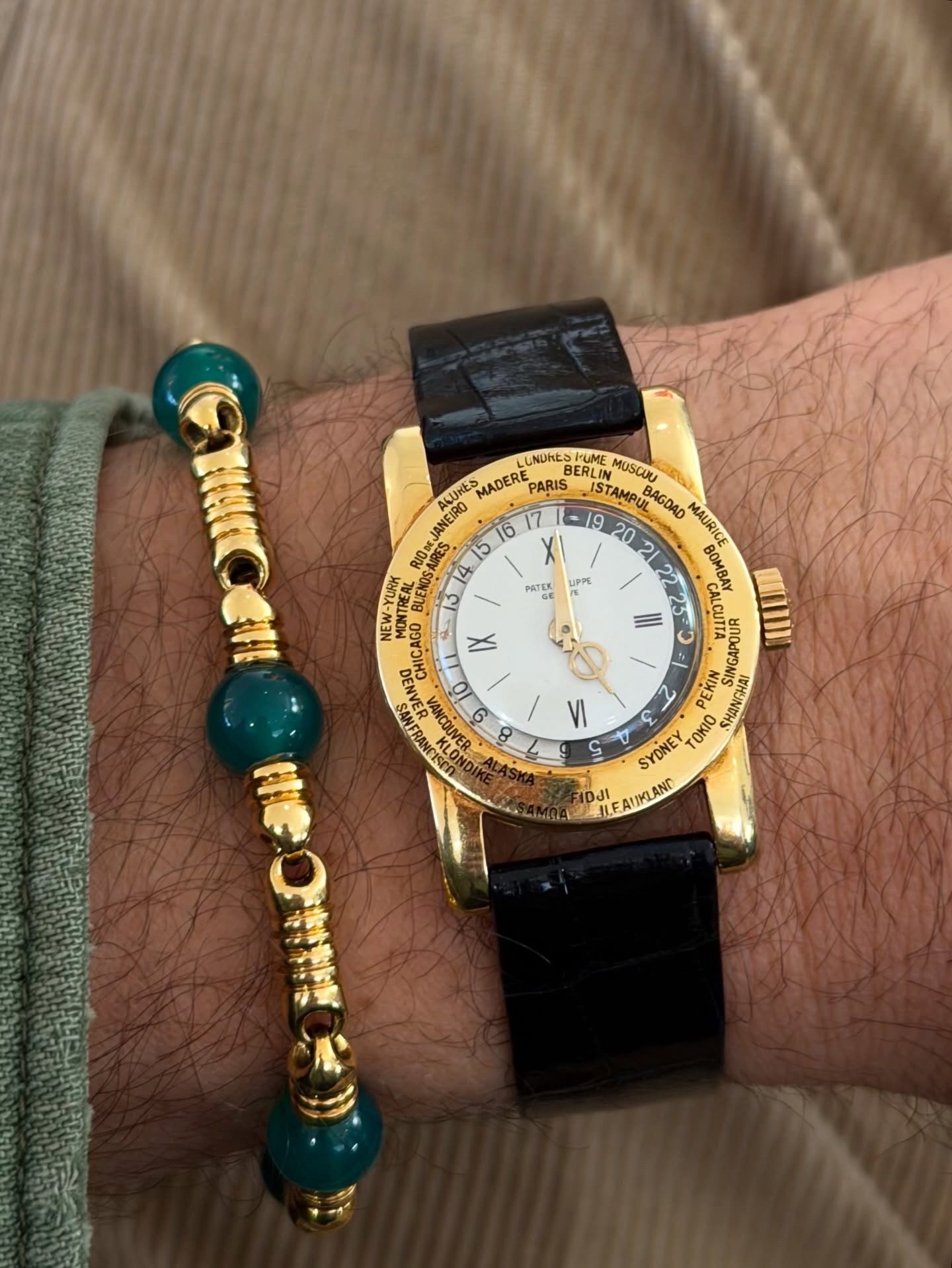

And, as you can see, the dial has unfortunately been heavily restored:
- The long signature has been replaced by a short signature (no “& Co.”).
- The single-tone 24h ring has become a two-tone 24h ring.
- The Roman number VI has been reversed or “flipped”.
credit: @tasti_tondi

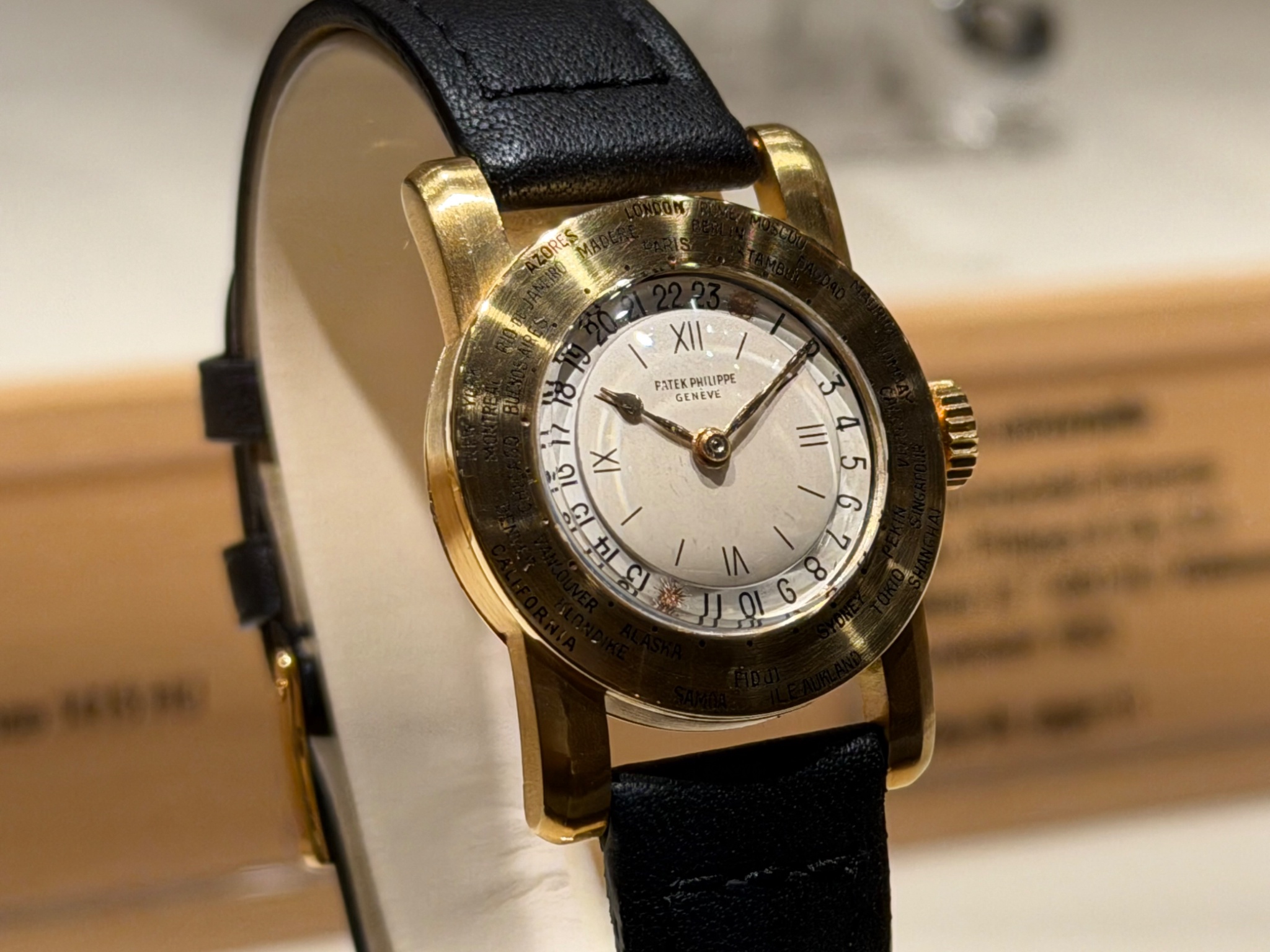

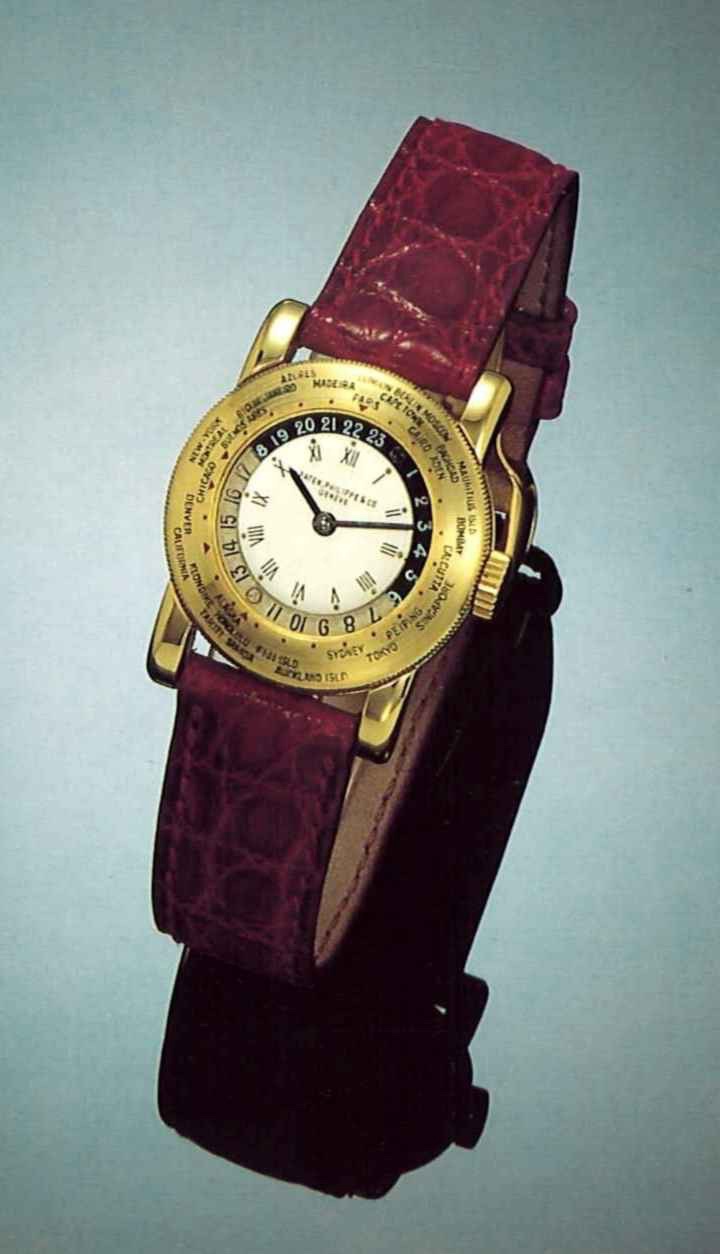

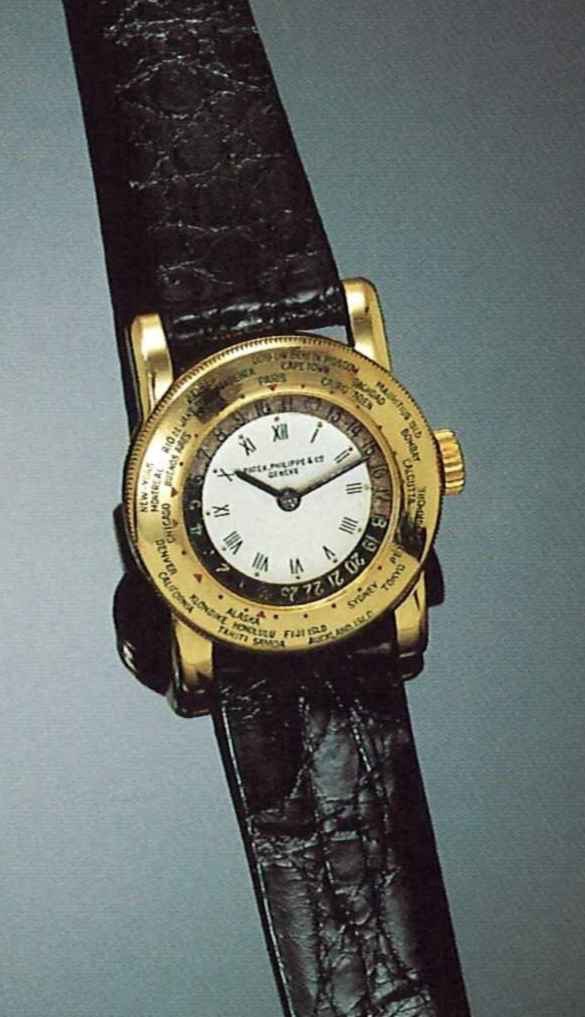

2/ Movement n° 818’200 & case n° 295’194

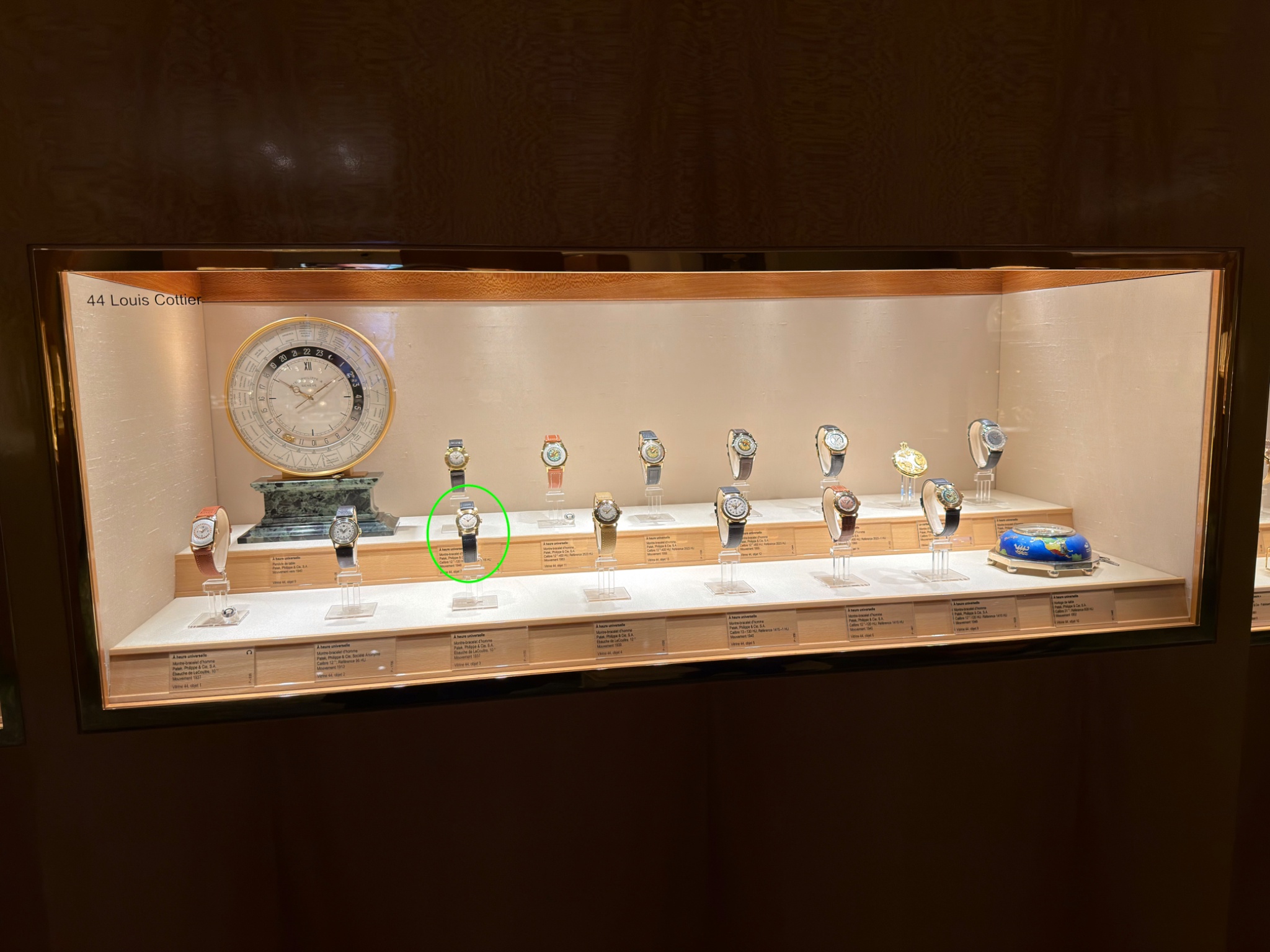

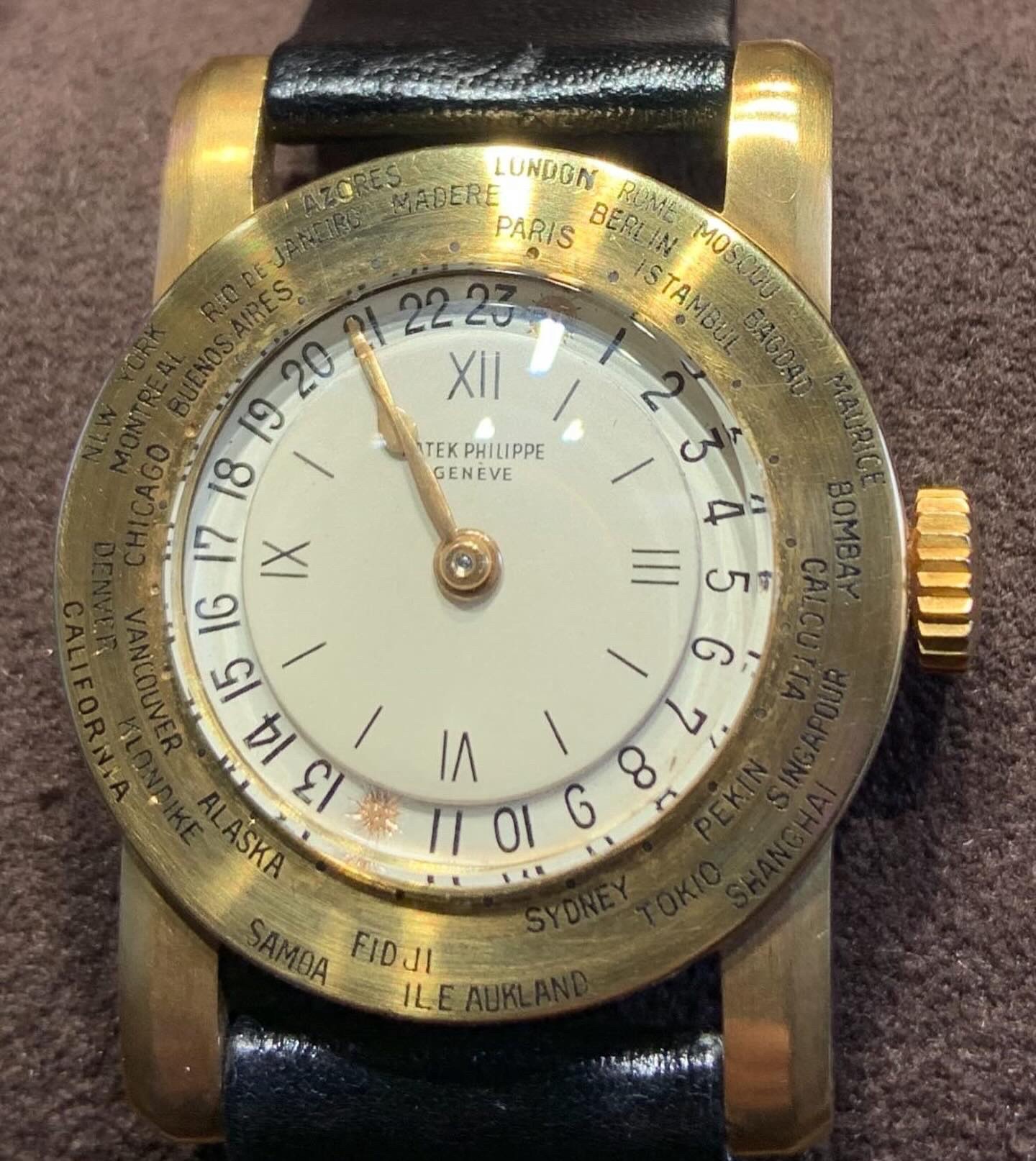

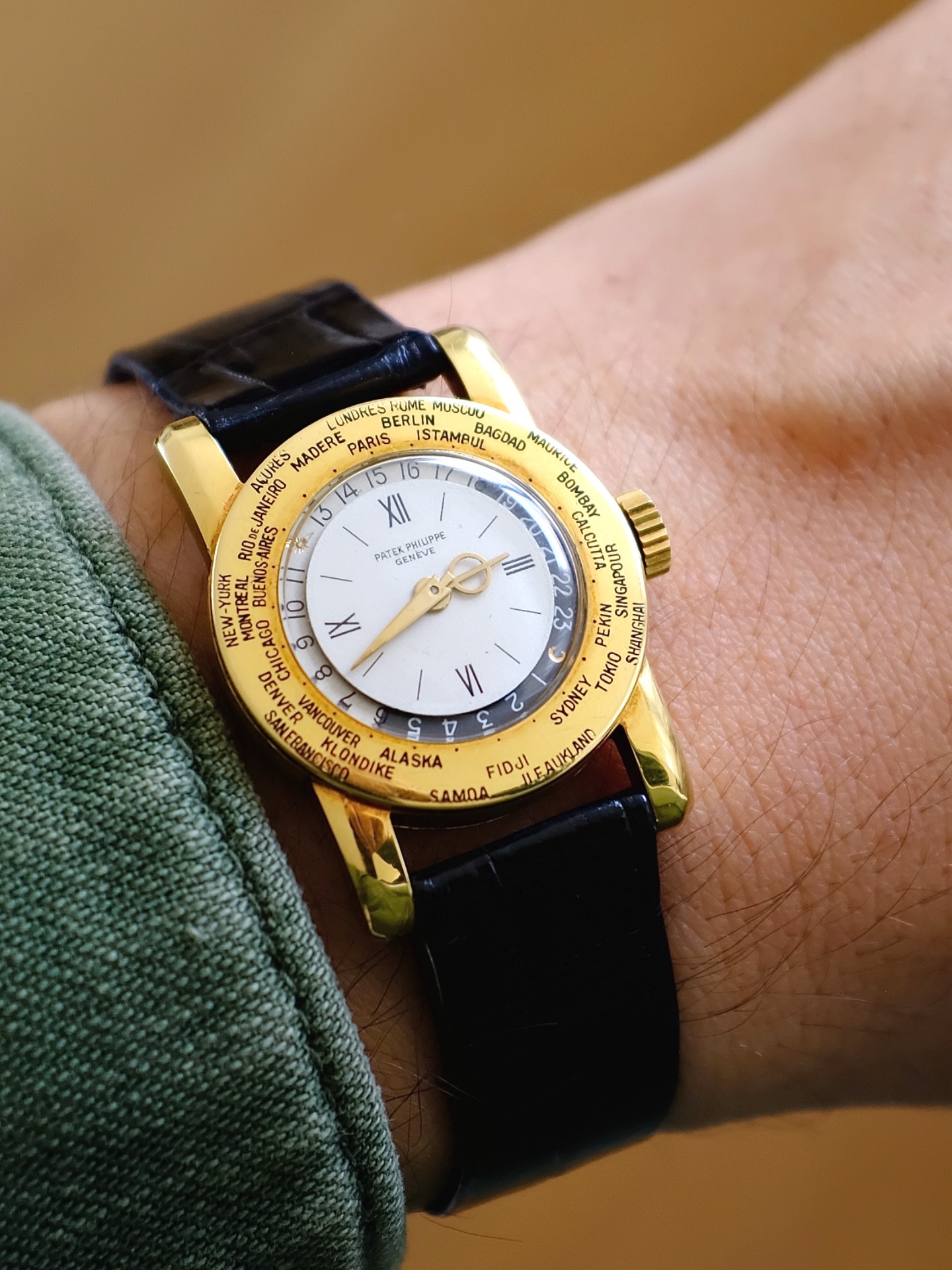

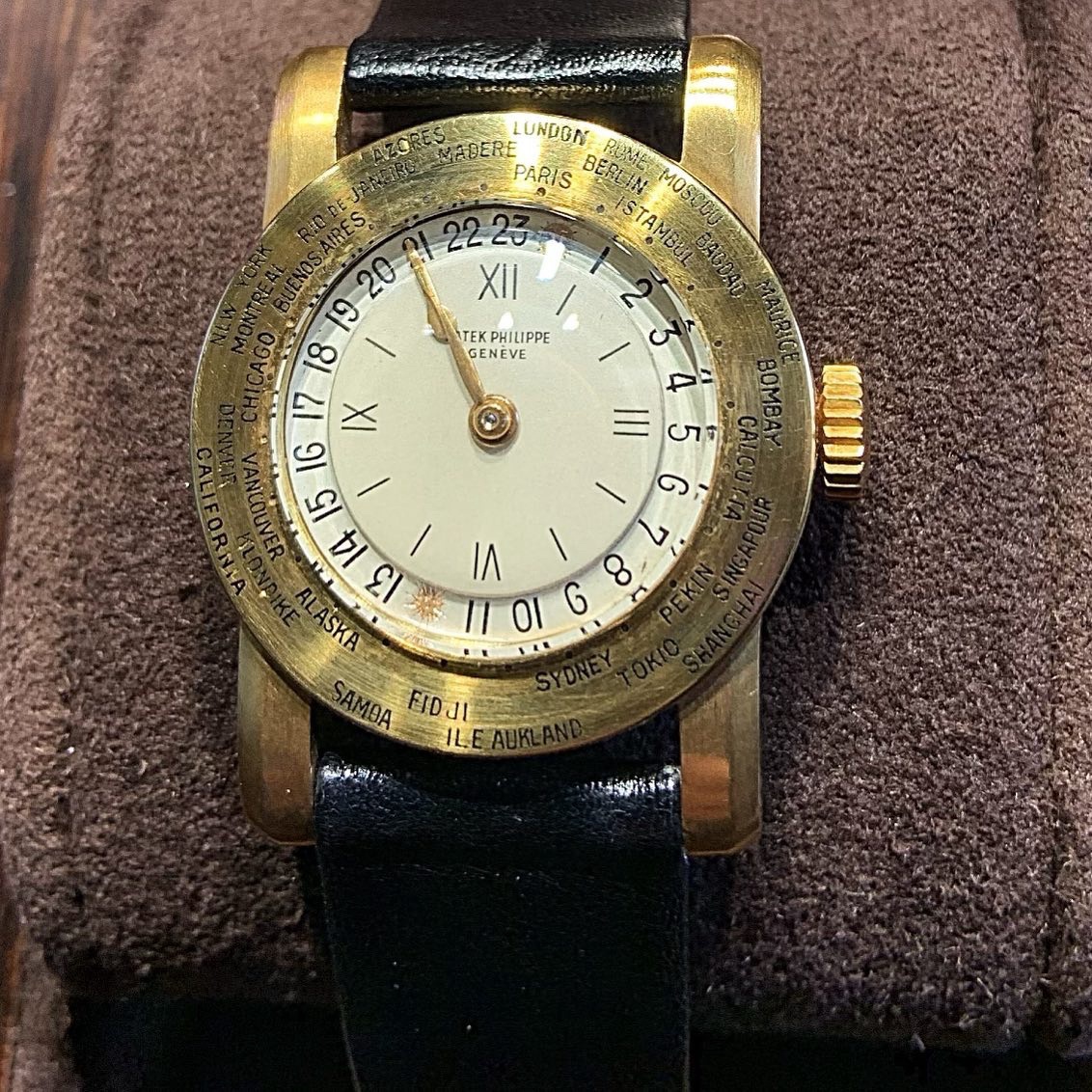

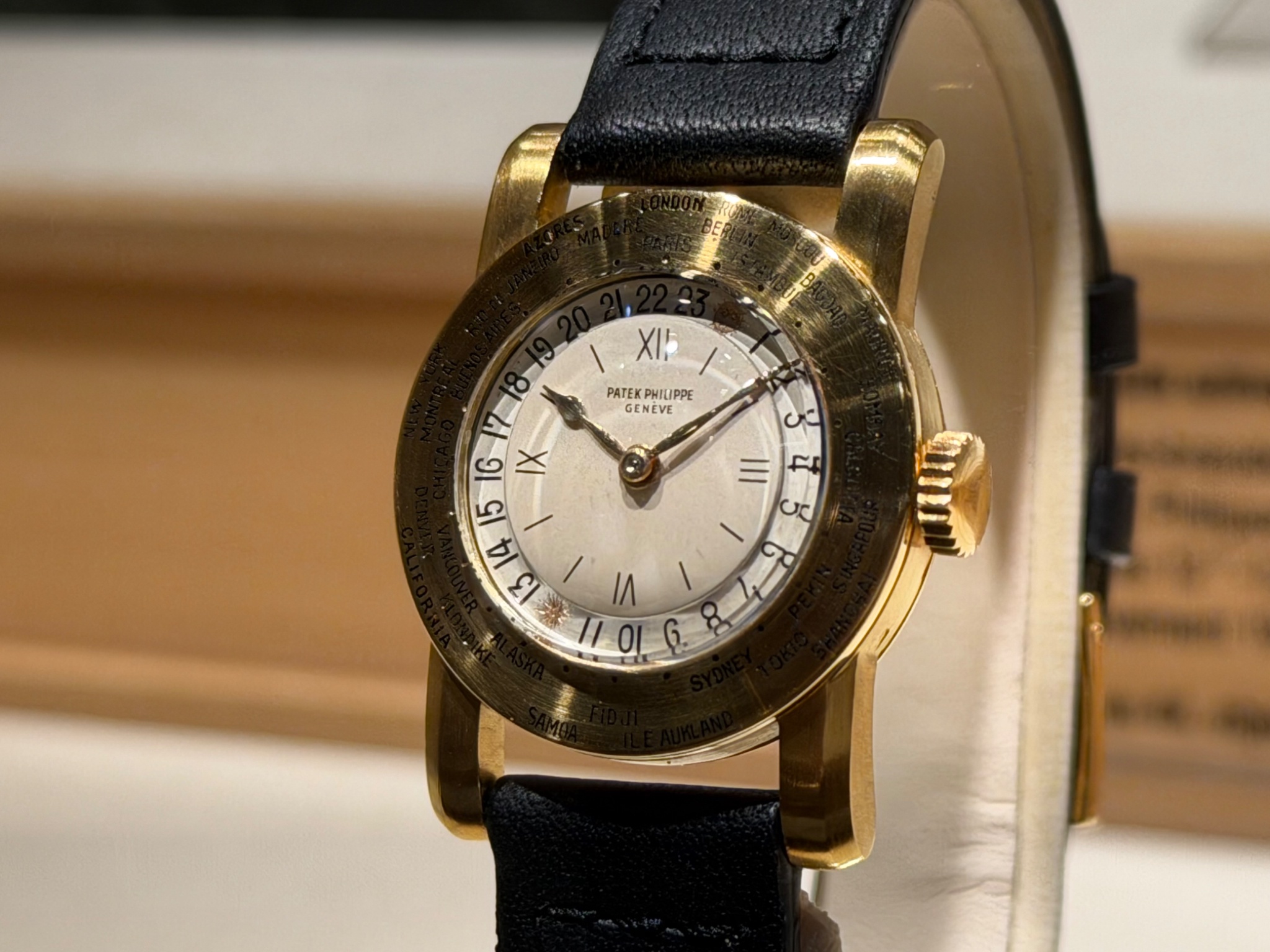

This yellow gold example, made in 1928 and sold on 7 October 1938, is now on display at the Patek Philippe Museum (Inv. P-1170).
Its dial, which features “spade” gold hands & a short signature, has also been “heavily” restored, unfortunately.

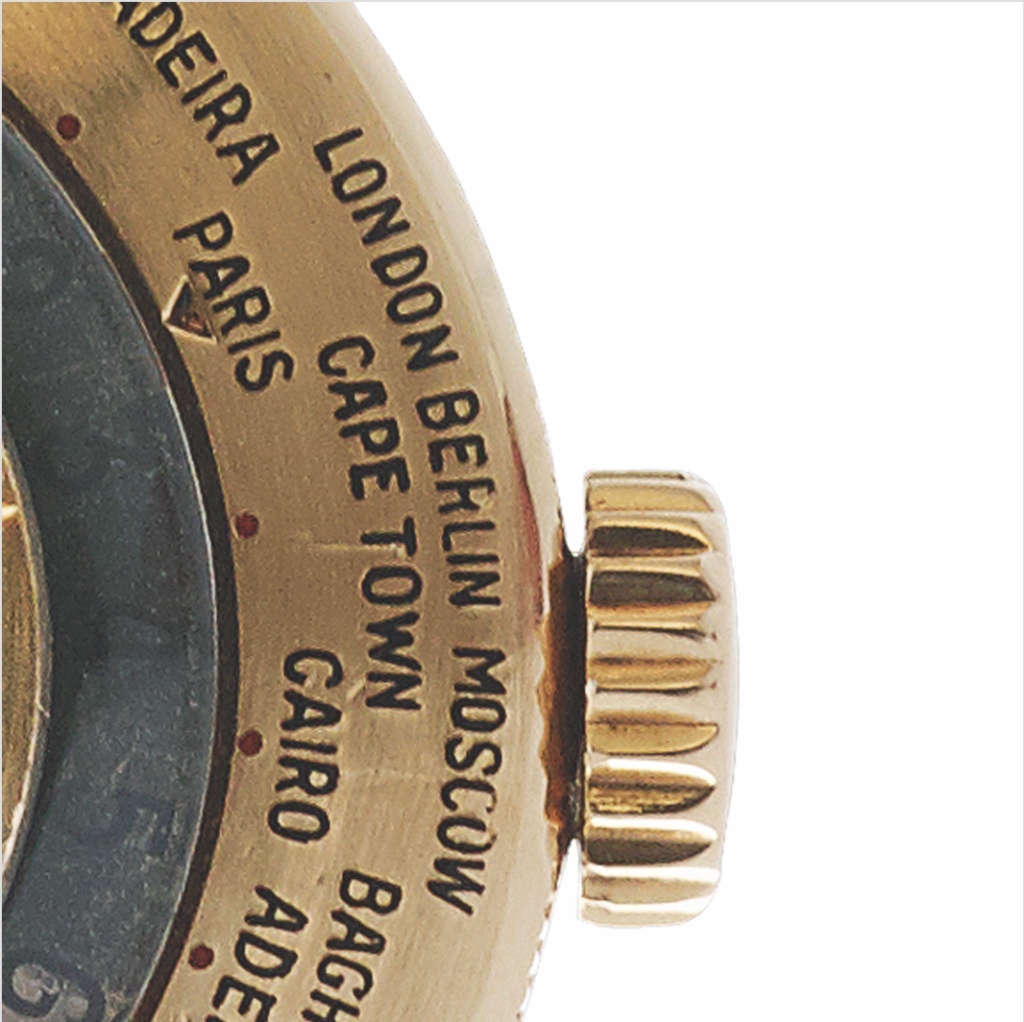

And, of course, why the city names, which are mainly in French include “London” (instead of “Londres”) and “California” (instead of “Californie”) remains a complete mystery!
Lot 608 at Antiquorum Important Watches, Wristwatches and Clocks, Geneva, Hotel Des Bergues, Oct 15, 1994
Lot 122 at Antiquorum 100 Years of Wristwatches, Geneva, Hotel Des Bergues, Nov 19, 2000
credit: @tellewellyn (1), @minutesdevoyages (2), personal photos (3-6) & Antiquorum (last image)

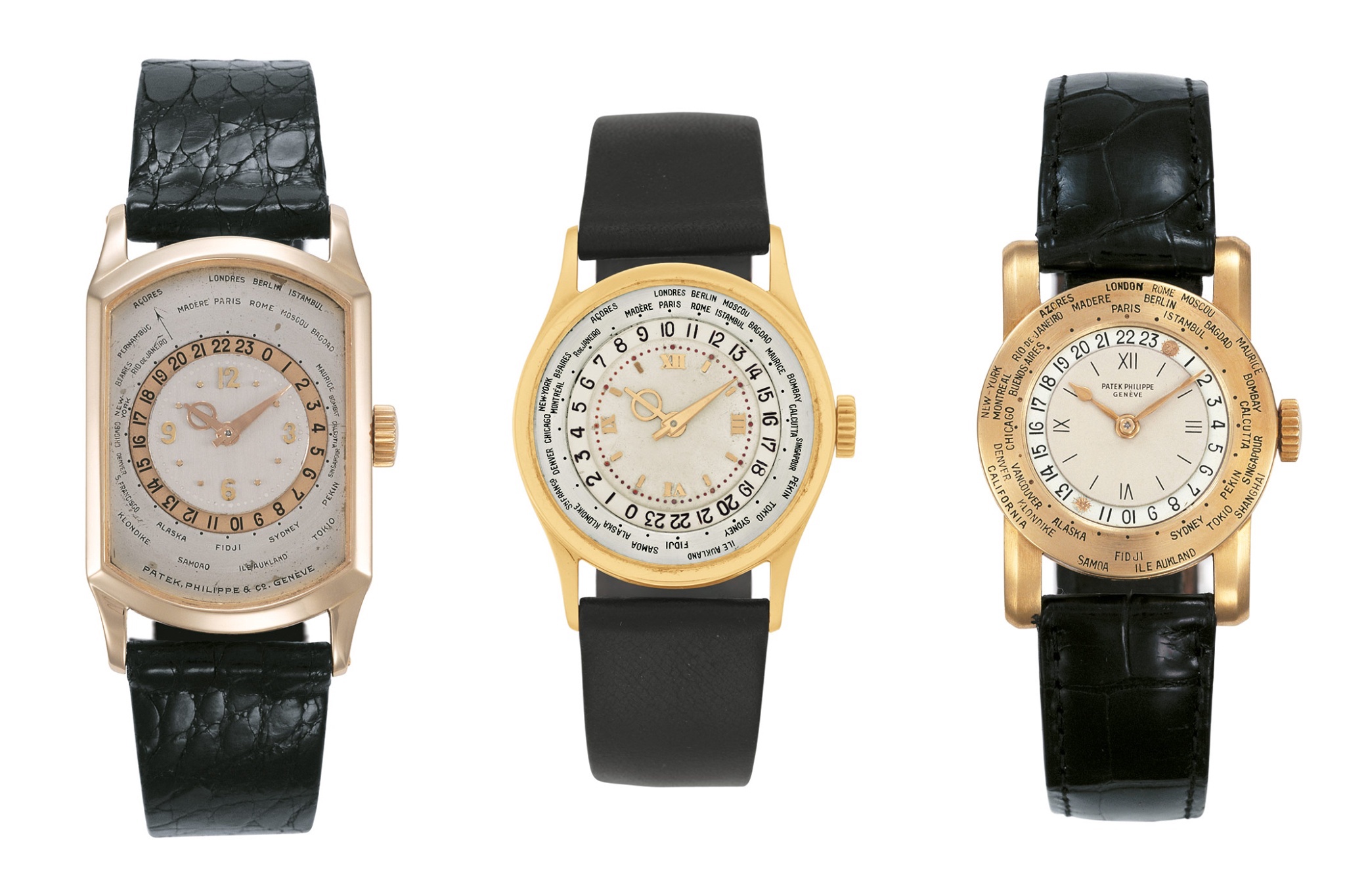

Below, side by side: Ref. 515 HU (left) - Ref. 1415/1 HU (centre) - Ref. 542 (right)
credit: watch pro

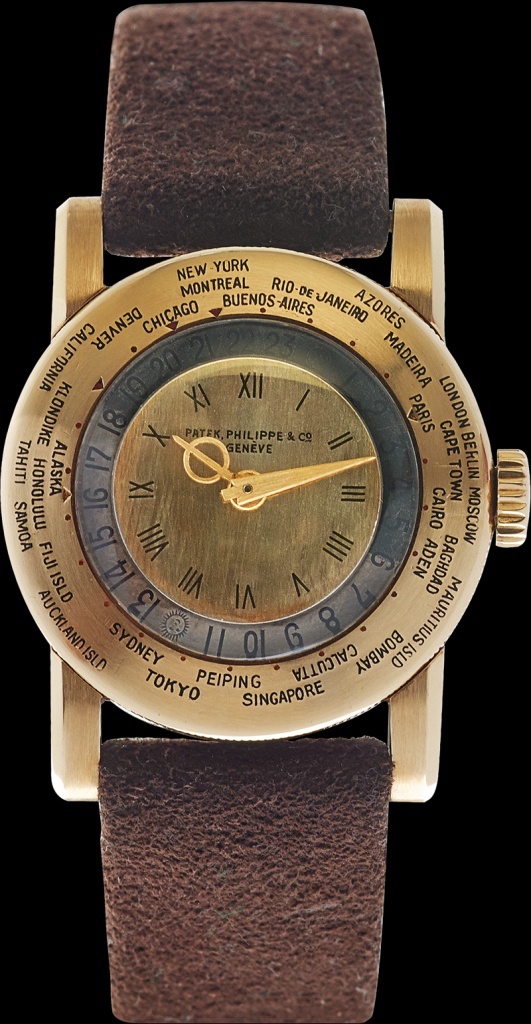

3/ Movement n° 821’239 & case n° 618’276
This example in pink gold, circa 1931, probably sold in 1938, features “bâton” blued steel hands & long signature dial
Lot 193 at Antiquorum Important Collectors, Geneva, Hotel Des Bergues, Oct 20, 1991
Lot 431 at Antiquorum Important Watches, Wristwatches and Clocks, Geneva, Hotel Des Bergues, Oct 17, 1993
credit: Antiquorum

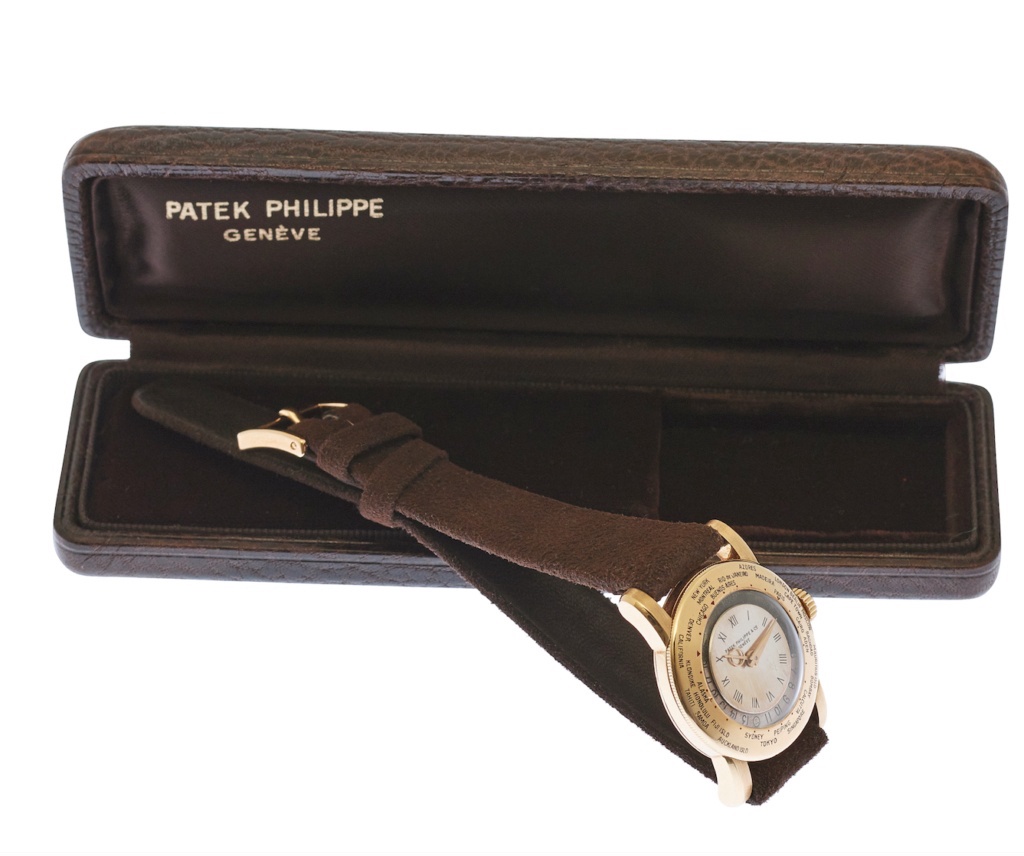

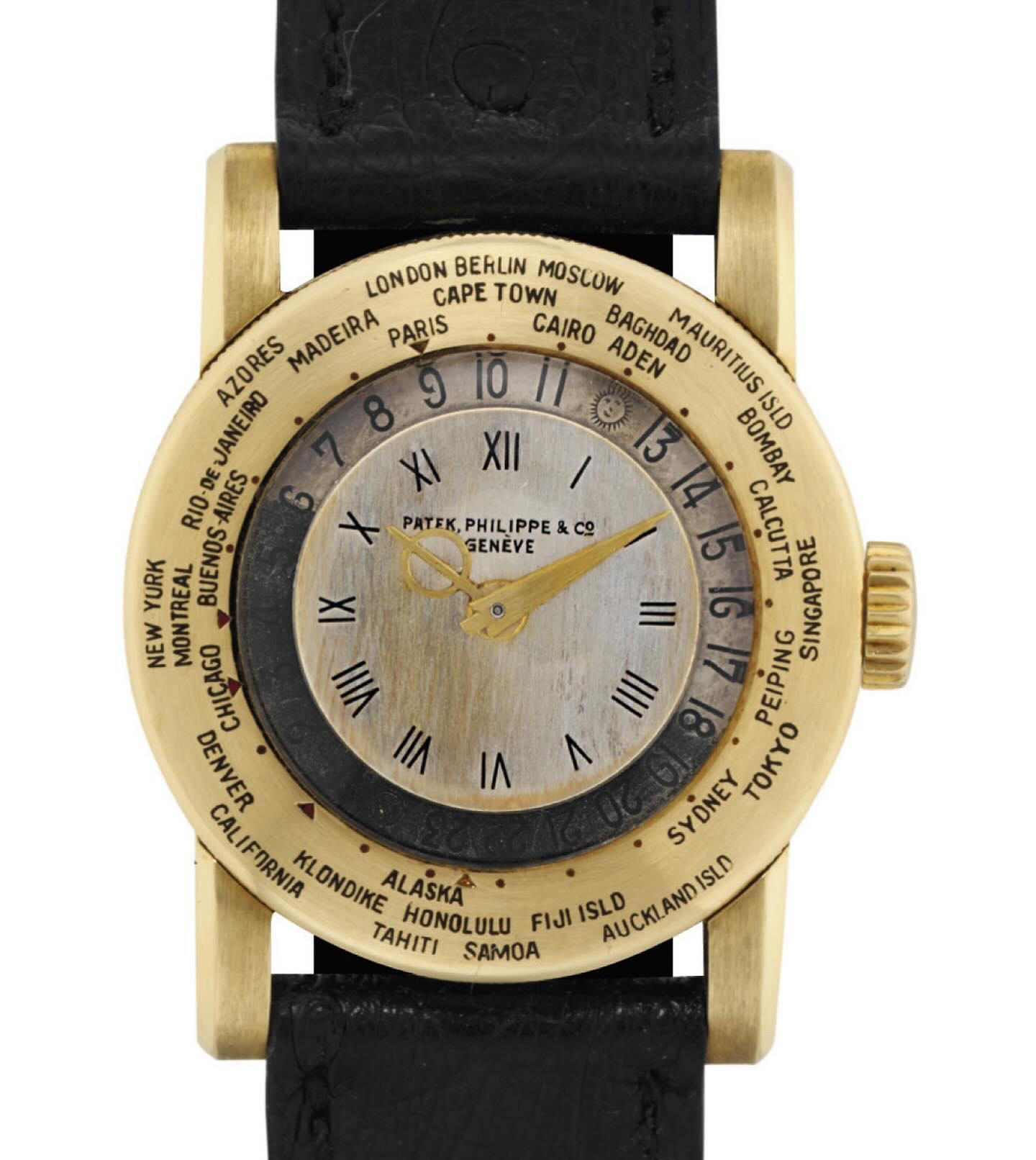

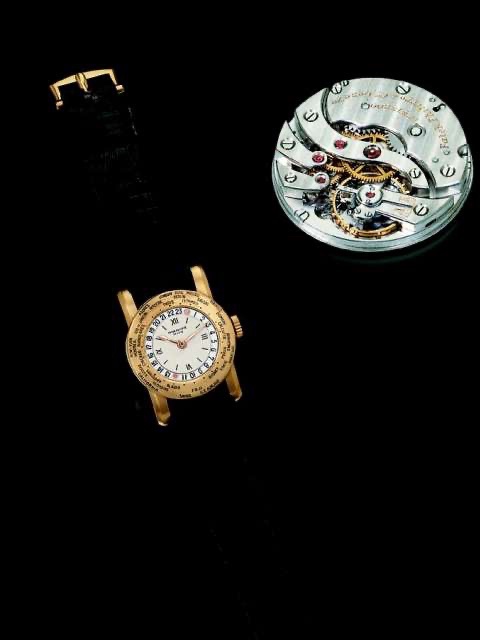

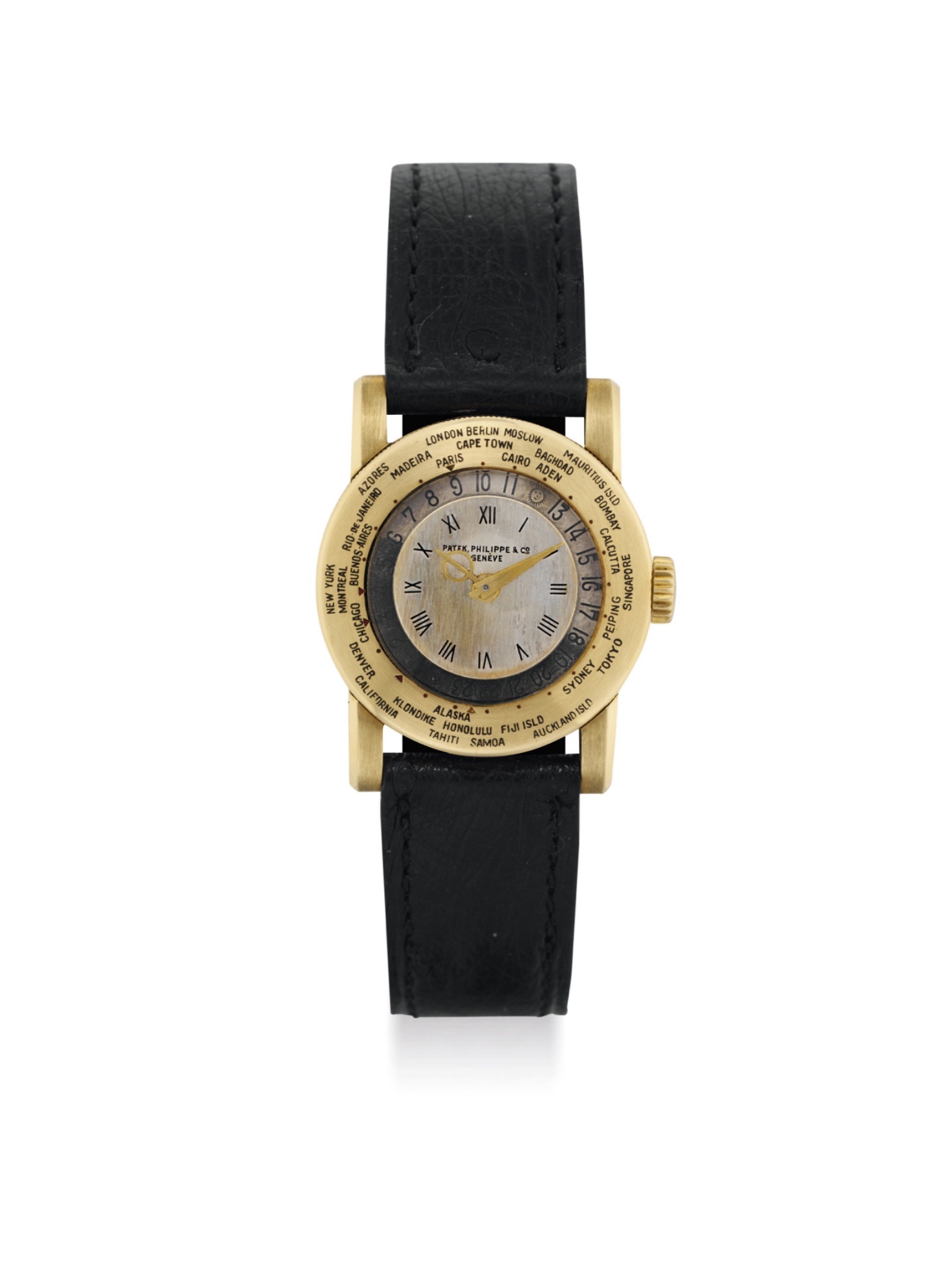

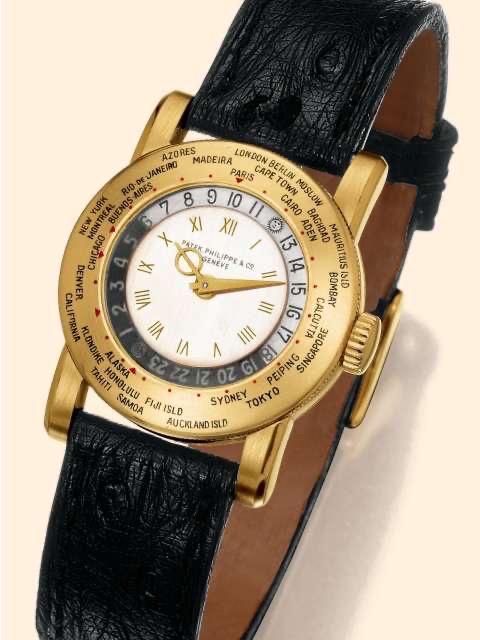

4/ Movement n° 823'542 & case n° 618'277

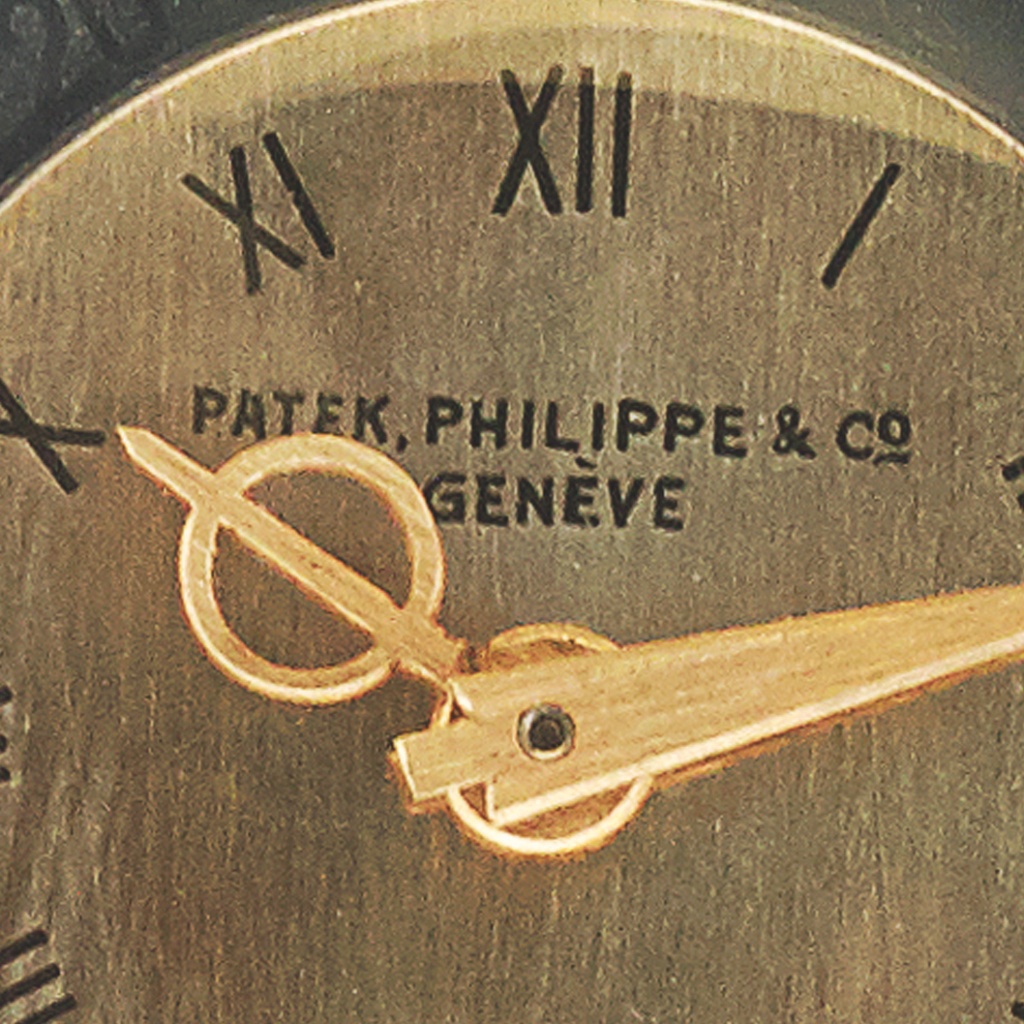

This example in yellow gold, manufactured in 1938 and sold on 25 November 1938, features “globe” or “lunar” gold hands (also called "fancy" hands) & long signature dial.
The dial of this example appears to have undergone a fairly significant change in color.
Lot 500 at Antiquorum Important Watches, Wristwatches and Clocks, Geneva, Hotel Des Bergues, Apr 10, 1994
Lot 22 at Antiquorum Exceptional Horological Works of Art, Geneva, Oct 19, 2002
Lot 3103 at Christies Important Watches 28 November 2012
credit: Christie’s (1-2), Antiquorum (3-4), Davide Parmegiani (5-9) & @goldberger (10)
Thanks for reading.
And, of course, if you
like the
design, please
check out
Reima Koivukoski's
tribute:
The Wanderer.
Best, Emmanuel
