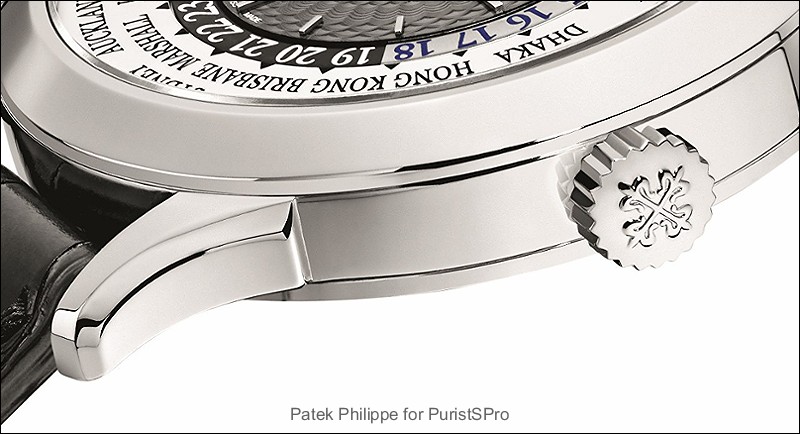

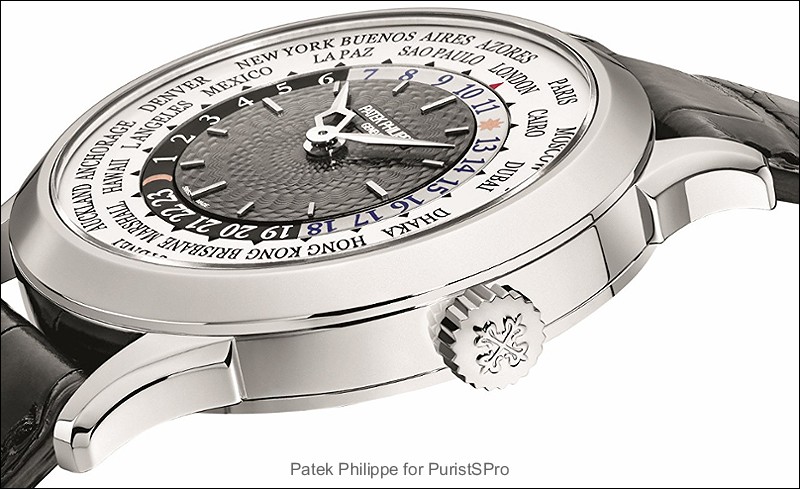

Mark in Paris offers his initial impressions and detailed analysis of the Patek Philippe World Time Ref. 5230, one of the main novelties from Baselworld 2016. This article delves into how the 5230 updates its predecessor, the 5130, by incorporating contemporary design elements and revised city names to reflect current global time zones. Mark explores the aesthetic changes, including new lugs and bezel, and their historical inspirations within Patek Philippe's legacy.
Hi everyone,

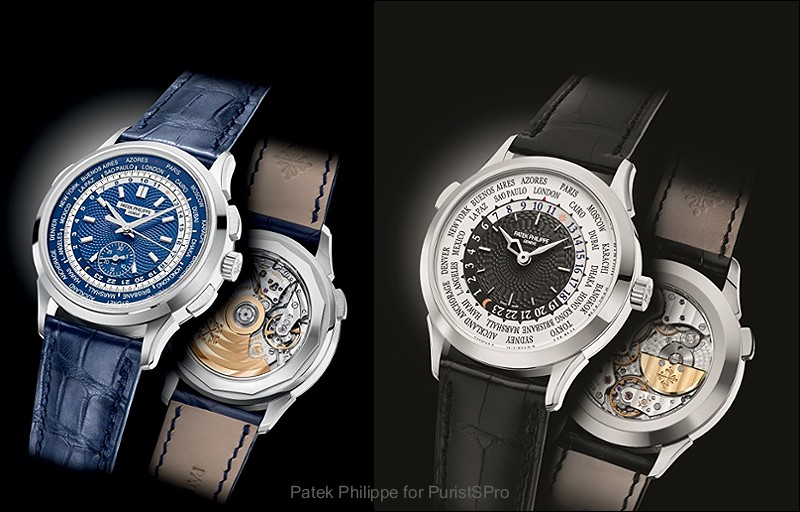

Two of the main novelties from this 2016 Basel fair have particularly attracted most of the attention as they are the new World Time references: the Patek Philippe 5230 as a World Time only and the Patek Philippe 5930G as a new model, inspired from the unique 1415-1 piece from 1940.




As
for the equipment needed to perform this guilloche work, Patek uses a
very old
manually controlled rose engine (it is the kind of tool Kari Voutilainen
uses as well to make his own decoration).

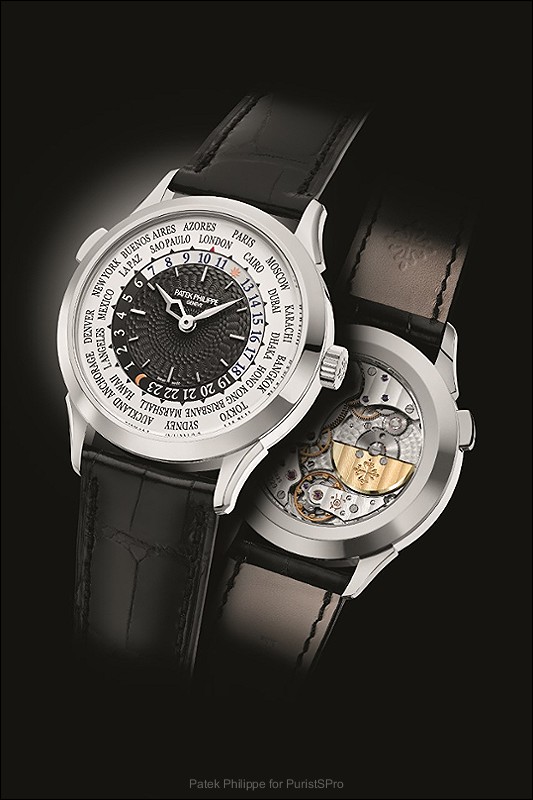

Ref. 5230 World Time watch
Movement: Caliber 240 HU Self-winding mechanical movement, display of 24 time zones, day/night indication
Diameter: 27.50 mm
Height: 3.88 mm
Number of parts: 239
Number of jewels: 33
Power reserve: Min. 48 hours
Centrifugal mass: 22K gold minirotor, unidirectionally winding
Balance: Gyromax®
Frequency: 21,600 semi-oscillations per hour (3 Hz)
Balance spring: Spiromax®
Balance spring stud: Adjustable
Functions: Two-position crown:
– Pulled out: To set the time
– Pushed in: To wind the watch
Local time selector: Pusher at 10 o'clock
Synchronized adjustment of displays in one-hour steps for the hour hand and 1/24th counterclockwise increments for the city disk and the 24-hour ring
Displays: Local time in hours and minutes
City disk with 24 place names
24-hour ring with day/night indication in colors and sun/moon symbols
Hallmark: Patek Philippe Seal
Features
Case: 18K white or rose gold 5N
Sapphire-crystal case back
Water resistant to 30 meters (3 bar)
Case dimensions: Diameter: 38.50 mm
Length (across lugs): 46.91 mm
Width (9 to 3 o'clock incl. crown): 41.45 mm
Thickness (crystal to display back): 10.23 mm
Width between lugs: 20 mm Continued 5
Dial: 3-zone dial:
• City disk printed black
• 24-hour ring with day/night indication in color and sun/moon symbols (day: black numerals on silvery background; night: white numerals on black background)

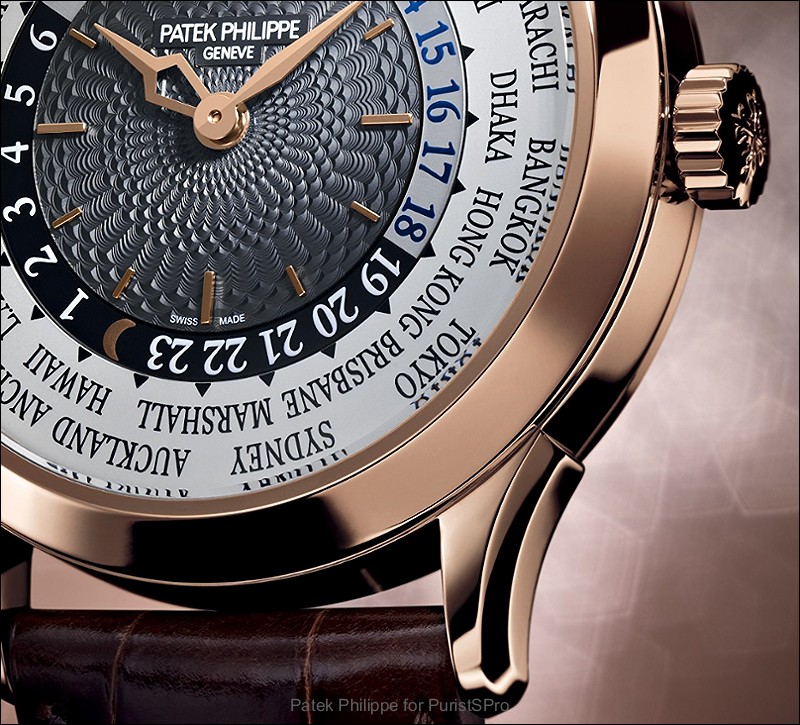

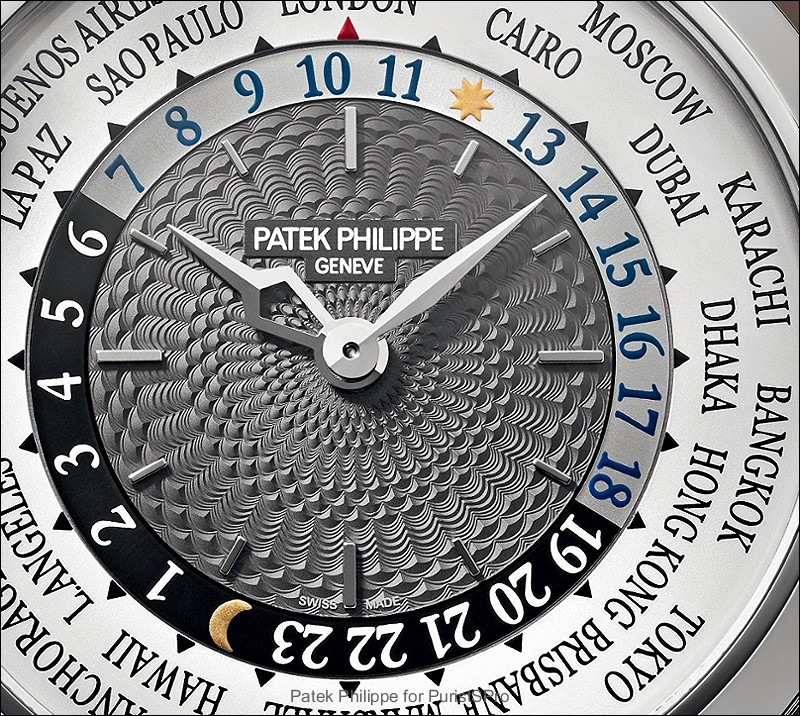

• Center hand-guilloched with basket weave pattern
Hour hand with "Southern Cross" constellation motif, pierced, lapped flanks, in 18K white or rose gold 5N
Lozenge-shaped minute hand with lapped flanks, in 18K white or rose gold 5N
Applied baton hour markers in 18K white or rose gold 5N
Strap: Hand-stitched alligator with large square scales. Shiny black with Calatrava fold-over clasp in 18K white gold for the white-gold model Shiny chocolate brown with Calatrava fold-over clasp in 18K rose gold 5N for the rose-gold model
_______________________________________________________________The Patek Philippe Calatrava reference 600 is a significant early example within the Calatrava lineage, representing the foundational design principles of the collection. This reference predates many of the more complex complications found in later Patek Philippe models, focusing instead on purity of form and legibility. It embodies the brand's commitment to traditional watchmaking and understated design, setting a precedent for subsequent Calatrava iterations.
This particular reference typically features a case crafted from precious metals, often yellow gold, with a modest diameter that aligns with historical preferences for dress watches. The movement powering the reference 600 would be a manual-winding caliber, reflecting the mechanical advancements of its era. The crystal would have been a material common for the period, protecting a dial designed for clarity and timeless appeal.
For collectors, the reference 600 holds importance as an early and unadorned representation of the Calatrava's core aesthetic. Its simplicity and historical context make it a desirable piece for those interested in the evolution of Patek Philippe's most enduring dress watch collection. Variants within this reference would primarily involve different dial finishes or case materials, maintaining the essential Calatrava character.
I'll handle the watch on Monday but if it really feels good, I will get it when it will appear in platinum. Best, Kari
I might do the same as Kari, regarding the platinum version, or alternatively fetch a new 5130P, as long as it will still be possible. That is assuming my secret project will not materialise with another WT. I find the 5130/5110 case shape more beautiful and timeless. The new case design is a bit technical/boxy, but combined with the romantic dial pattern it becomes a weird mix. It seems case and dial departments worked separately in the conceptual phase. All the best, Alex This message has been
I think Alex that most of our tastes have been shaped through what we are used to seing, starting when we were young and moving on. The thing is that the older we've been staying in the field of watches for instance (but it is true in every other sectors), the more difficult it is to follow the aesthetical evolutions. These steps are related to differnt moves in terms of aesthetcial creation and when one gets used to a certain style, it is more difficult to switch to new standards. The 5110 for
...thank you for what is probably the most beautifully written exchange of ideas I have had so far in the forum. Which also increases my love for this place I fully agree with all your points. They are exquisitely thought through and communicated. There is no right or wrong. And when I say I prefer the case of the 5110/30, I am fully aware that this is so to these 38-year old eyes, with all my experiences in life, cultural, educational, aesthetical, etc. Hence you are spot on with your remarks.
It is a real pleasure discussing with passion with people sharing the same love for watchmaking in general. The very respectful way you and purists in general do it is very valuable and rewarding to me. That's why I ended on this site several years ago. I often try to present opposite observations, challenging comments as this is what I find interesting and it allows balancing point of views. My will is never to impose my opinion but to show other "perspectives". We don't have to have the same t
Very much looking to many more discussions and discoveries together!! Have a great Saturday night! Alex
