Blomman Mr Blue provides an in-depth look at the Girard-Perregaux Reference 9034 C, affectionately known as the "Dot dial." Drawing on insights from the Manufacture, the author explores the watch's production history, its numerous sub-references, and the unique characteristics that make this vintage piece a compelling subject for collectors.

Friends,

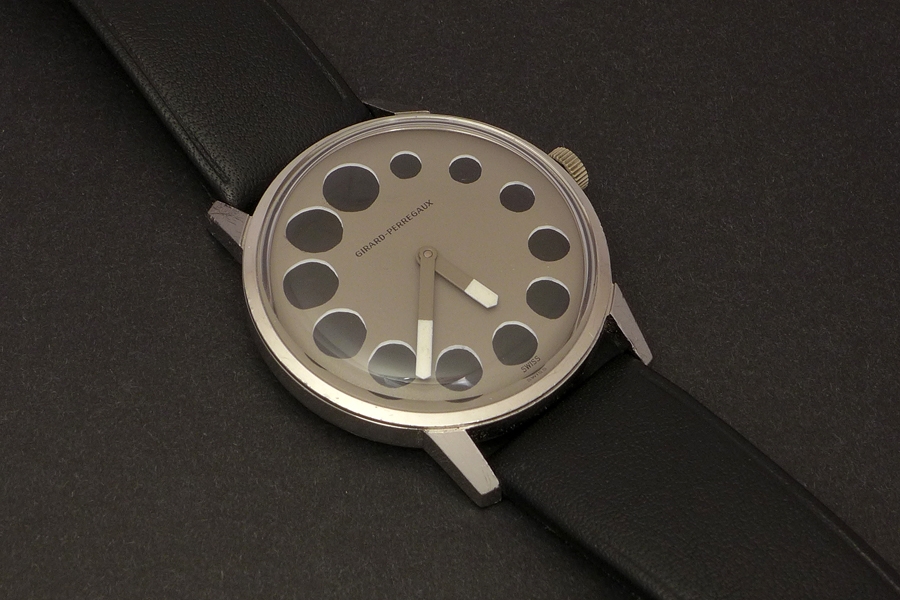

Last week I showed you a fun watch, which also holds the Masthead spot this week: the 9034 C!

With help from my friends at the Manufacture I am now able to give you some more information regarding this watch!

Before we go into details about the “Dot dial”, let me tell you a bit more about the reference 9034.

Reference 9034 was a big seller for Girard-Perregaux!

I have seen records indicating that the reference was in production all the way from 1967 up until 1976. At least 13 700 watches were made during this period. 13 700?! Why do we don’t more of these “Dot dials” around if so many?

The answer is easy; the “Dot dial” was probably only one of many batches of the reference 9034! I write probably, because there are no records of exactly how many of these were made.

From what I could find out at least the following sub-references existed within the 9034: AF, BB, B, C, D, FA, FG, FH, FK, FM, GA, GF, GH, GK, HA, HG, HK, KA and Q! 19 sub-references in total!

The case is 34.5 mm in diameter and existed both in steel and Gold plated…

blomman Mr Blue · 2015-02-25T00:02:46Z

Explore the Girard-Perregaux Reference 9034 C "Dot dial" vintage watch. Discover its production history, sub-references, and unique design.

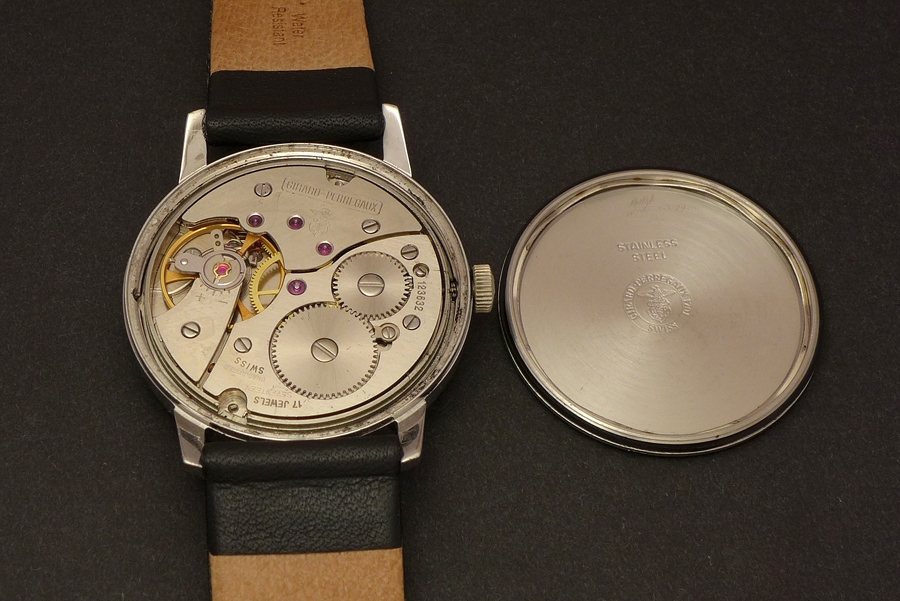

From what I understand, all of them had the same base caliber inside. Caliber 12 based on AS 1640.

Caliber 12 had several versions, among them was the 12.09, three armed ring balance, 12.4, non-Kif hollow plate and in the 9034 C: the caliber 12.3.

The caliber is a manual 17 Jewels with a frequency of 18 000 vph. Time only with sub-seconds at six o’clock.

Sub-seconds you might ask? Yes, sub-seconds. The most common 9034 was in fact a Sea Hawk!

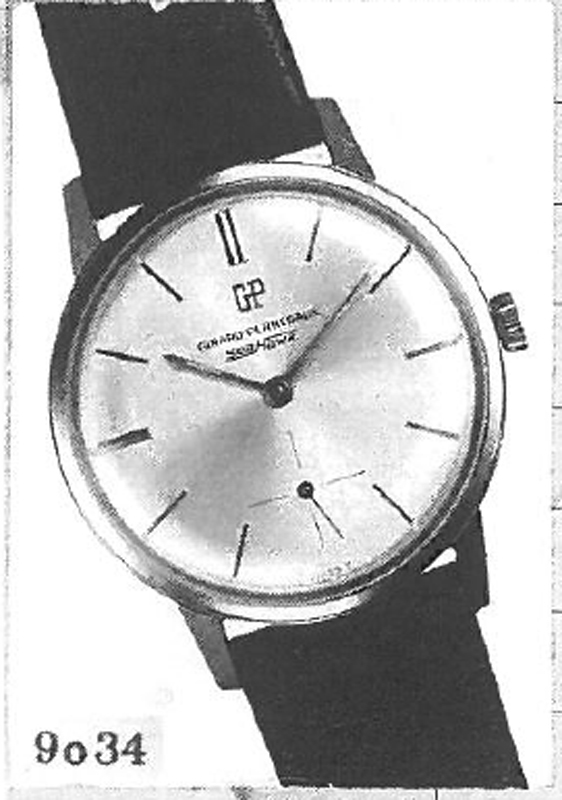

Here is an image from the production sheet:

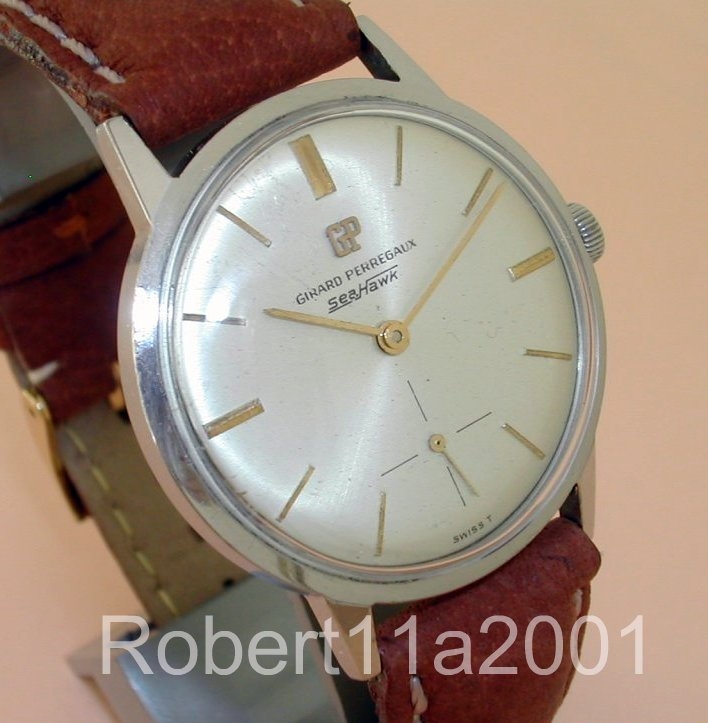

And here is a photo of the actual watch borrowed from Giuseppe.

[Pic credit: Giuseppe ”Robert11a2001”]

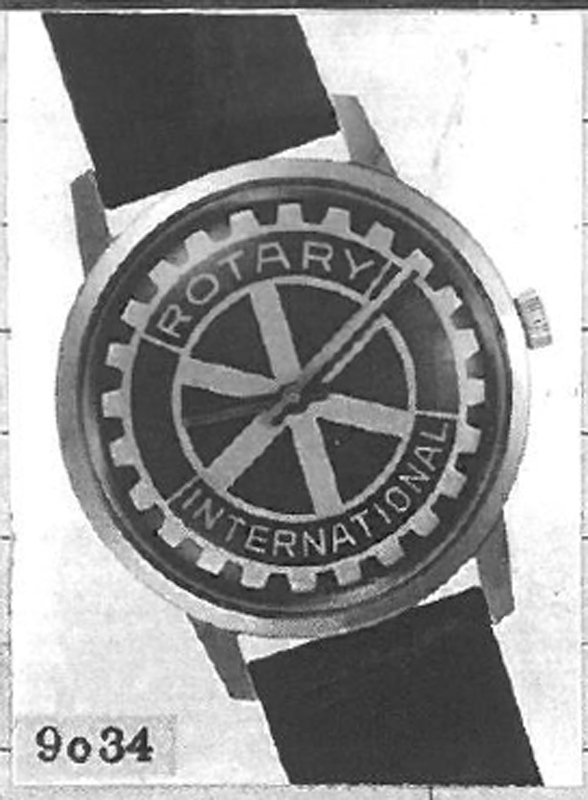

Among the different versions of the 9034 there is another very different one: the 9034 KA which was made for Rotary in 500 pieces.

As you might notice neither the Rotary nor the “Dot dial” versions have sub-seconds.

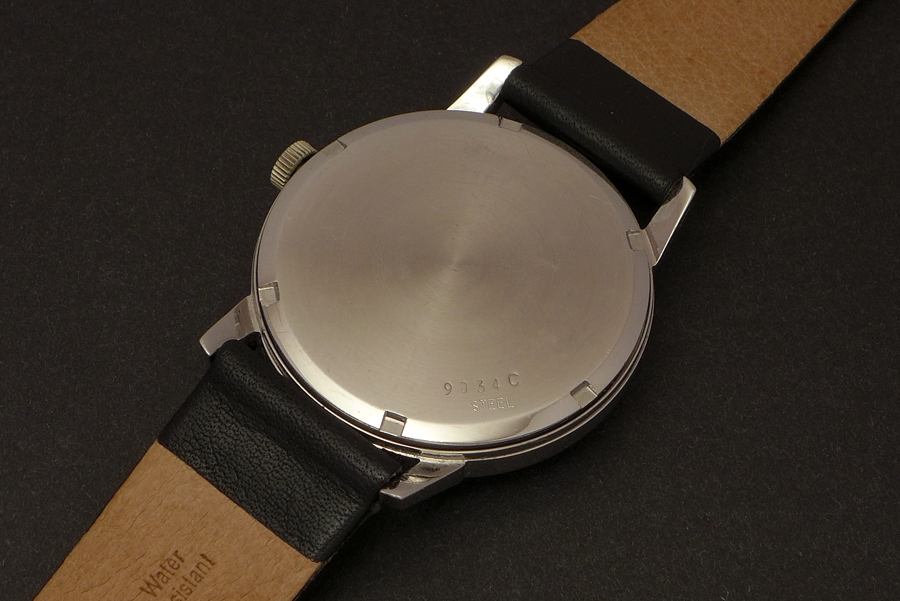

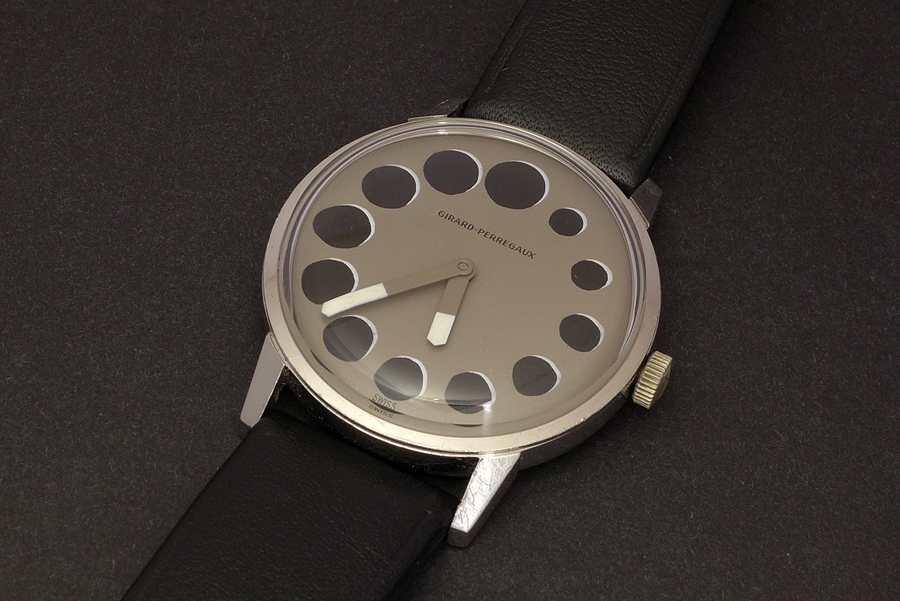

Back to the “Dot dial”, the only indication of this dial being used is on the 9034 C. The 9034 C batch was made in September 1967 and contained 1 000 pieces. If all of these watches had the “Dot dial” or not the records don’t tell…

But I doubt it, since it is a quite rare bird and only pops up once in a while… But there is no way to be sure! Maybe there is another 999 “Dot dials” out there hiding from us…

Retail price in 1967 was 145 CHF for the “Dot dial” in steel while the more common Sea Hawk was 135 CHF in steel.

34.5 mm of pleasure and fun!

Best

Blomman

This message has been edited by blomman on 2015-02-25 00:03:30

About the Girard-Perregaux GP Vintage Ref. 9034

The Girard-Perregaux Vintage reference 9034 is a notable model within the brand's mid-century offerings, recognized for its diverse dial configurations. Produced over nearly a decade, this reference showcases Girard-Perregaux's design versatility during a period of significant stylistic evolution in watchmaking. It represents a segment of the brand's production that catered to varied aesthetic preferences while maintaining a consistent underlying mechanical platform.

This reference features a 34.5 mm steel case, a common dimension for watches of its era, providing a balanced presence on the wrist. The watch is powered by the Caliber GP12.3, an automatic movement based on the AS 1640 ébauche, indicating a robust and widely utilized architecture. The use of a steel case and a reliable automatic movement positioned the 9034 as a durable and practical timepiece for daily wear.

For collectors, the 9034 is particularly interesting due to its wide array of dial variations, including the "moon dot" (also known as "Playboy"), gold-plated, "psychedelic," and "Roulette" or "Flag" designs. This variety makes individual examples distinct and offers collectors opportunities to pursue specific aesthetic preferences within a single reference number. Its production span from 1967 to 1976 further highlights its enduring appeal and adaptability during that period.

Specifications

Caliber: GP12.3 (based on AS 1640)

Case: Steel

Diameter: 34.5 mm

Dial: Multiple variations (e.g., moon dot, gold plated, psychedelic, roulette)

Key Points from the Discussion

Beyond the "Dot dial," the Girard-Perregaux 9034 series includes other interesting dial variations, such as a black dial (9034 Q), a "Flags" dial (9034 D), and a blue dial (9034 GF), showcasing the model's diverse aesthetic range.
The existence of numerous variants within the GP 9034, from clean and sober designs to more playful ones, suggests a strategy to broaden its appeal beyond a potentially 'boring' minimalist aesthetic.
A collector shares their acquisition of a 9034 GK, a gold-plated version with a steel case back and a rare chocolate dot dial, highlighting the appeal of these unique vintage pieces despite needing restoration.
The "Dot dial" with a central second hand, possibly a Gyromatic, raises questions about its specific reference within the 9034 series, indicating the complexity of cataloging these vintage variations.
The 9034 GK batch from December 1970, featuring a gold-plated case with a steel case back and a rare dial, is identified as a less commonly seen variant compared to the standard dot dial.
A collector recently acquired a "telephone dial" version of the 9034 for their birthday, noting its unique appeal and the scarcity of information or other examples available.

The Discussion

amanico

Feb 25, 2015

Thanks for these great informations, Blomman. I saw very few 9034 C, maybe 4 or 5 these last 10 years. At the beginning, I thought it was a customized dial! And when I understood it was the real Mac Coy, it was too late. Too bad! The hunt goes on... Best, my friend. Nicolas

crown comfort

Feb 25, 2015

there is also some additional information from an older post (2010) from Giuseppe: (I hope the link insert works) CC

hs111

Feb 25, 2015

../2 was there indeed nothing in the holes, no number(s) ? - To me, a bit as a missed opportunity (?).. But I guess, one probably has to see this one in the real, to catch something of this 60ies charm & spirit ?.. Best, hs

blomman Mr Blue

Feb 25, 2015

But one day I hope to find one! :) Best, my friend Blomman

blomman Mr Blue

Feb 25, 2015

This indicates that the "Dot dial" was not only limited to the C series but also FK. Best Blomman

blomman Mr Blue

Feb 25, 2015

But there were another version of the 9034 GK with numbers. As for the dots - one is the smallest and 12 is the largest. Best Blomman
