AnthonyTsai's 2010 post introduces Panerai's P.3000 movement, a significant in-house caliber designed to power future models. This article explores the technical specifications and community reactions to this movement, offering valuable context for understanding Panerai's strategic shift towards in-house manufacturing a decade ago. Readers gain insight into the brand's evolving identity and the P.3000's role in that transformation.
Entirely designed, developed and produced in the Officine Panerai Manufacture in Neuchâtel, the hand-wound P.3000 calibre presents the main characteristics of the Panerai movements both in terms of structure and in terms of performance, robustness, accuracy and its long power reserve.

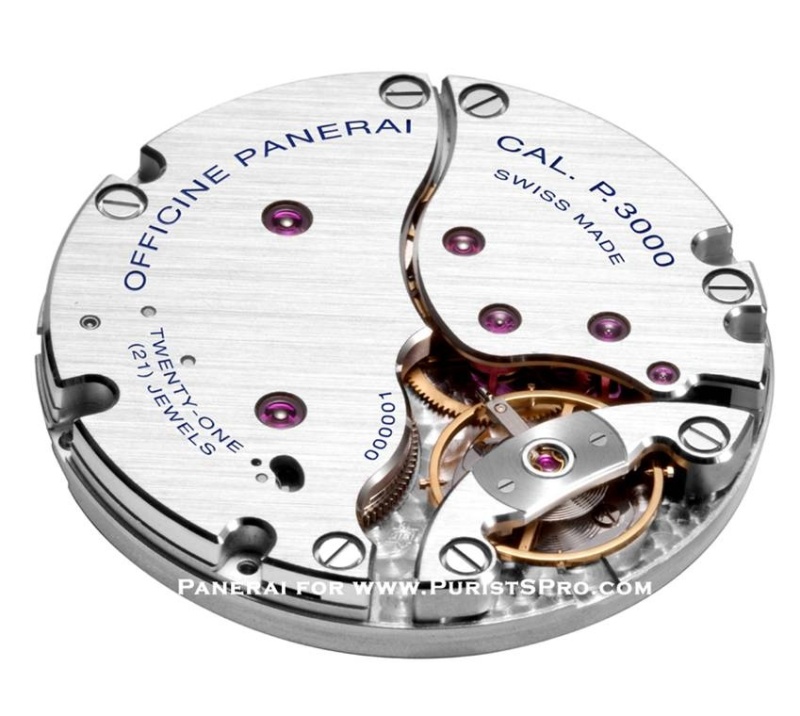

Panerai P.3000 calibre
The thickness of the calibre P.3000 is 5.3 mm and the diameter is 16½ lignes, a substantial size which traces its origins from that of the movements which were fitted to the historic Panerai models. The calibre is immediately recognisable by its construction, which is similar to that of a three-quarter plate movement: a large bridge, next to another smaller one, covers the majority of the mechanical parts and it is fixed to the bottom plate by a series of screws of substantial thickness, thus forming a particularly rigid structure.
The movement has 21 jewels and it uses two spring barrels connected in series. Such an arrangement enables long, thin springs to be used, which ensures the delivery of a more even force and also does so over a longer period of time, with a power reserve of 3 days. The balance wheel is unusually large (13.2 mm) and it is the variable inertia type, with four adjusting screws arranged externally round the ring, so that the rate can be regulated without it being necessary to remove the whole assembly. Supported by a bridge with twin supports – a fixing much safer and more stable compared to the cantilevered single bridge – the balance wheel oscillates at a frequency of 3 Hz, equivalent to 21,600 alternations per hour. It is fitted with an Incabloc® anti-shock device and is free-sprung, so there is no regulating lever.
With brush-finished bridges and chamfered angles – that is, with the angles smoothed and polished – the P.3000 calibre is also fitted with the device for the rapid adjustment of the time: a star wheel with 12 points and a small spring clutch enable the hour hand to be moved one hour at a time, without interfering with the movement of the minute hand or the operation of the watch.
Functions
· Hours, minutes, small seconds
Technical specifications
· Hand-wound
· Power reserve 3 days
· 160 components
· 21 jewels
· 16½ lignes in diameter
· 5.3 mm thick
· Two spring barrels
· Frequency of oscillation 3 Hz
· Incabloc® anti-shock device
Press Release
The Panerai PAM 80 'Independent' is a distinguished Radiomir model, part of a limited series that showcased Panerai's exploration into more complex movements during the early 2000s. It stands out within the brand's catalog for its unusual complication and precious metal construction, appealing to collectors seeking unique expressions beyond the standard Luminor and Radiomir designs.
This timepiece features a 42mm white gold case, housing a modified Chezard movement that enables a jumping center seconds hand, a complication rarely seen in Panerai watches. The blue dial provides a striking contrast against the white gold, enhancing its visual appeal. It was produced in a limited edition of 160 pieces, making it a notable and sought-after reference.
The PAM 80 holds significant collector relevance due to its limited production, the distinctive jumping seconds complication, and its use of a modified vintage movement. It represents a period when Panerai experimented with horological complexity, offering a unique blend of historical design cues with an unexpected mechanical feature.
Thanks for sharing with us! It keeps me in suspence as to what OP will incorporate this movement into which of their pieces! Well, here goes SIHH 2011! Stephen
Does this mean that this is the end of the ETA era in Panerai watches? It's gonna be interesting to see what Panerai will come out in their historical line next year... Best, Sam
Signore Bonati did say that he intends not to use ETA movements anymore in the future....... Cheers Stephen
so that means the regular Luminors (not the 1950 Luminors) and the Radiomirs Historics. I'm not 100% sure but it would make sense to do this IMO. Cheers, Anthony
Thanks Stephen
No message body
