I need a new watch...

So I have started making it.

I think I have found what it is, that fascination.

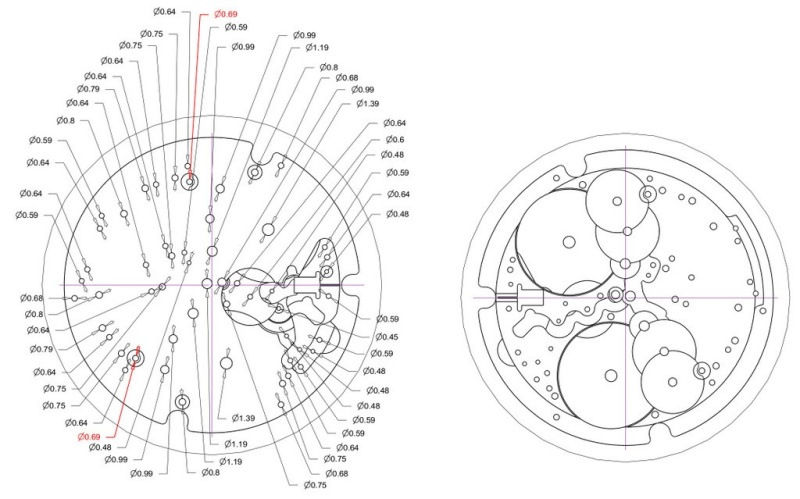

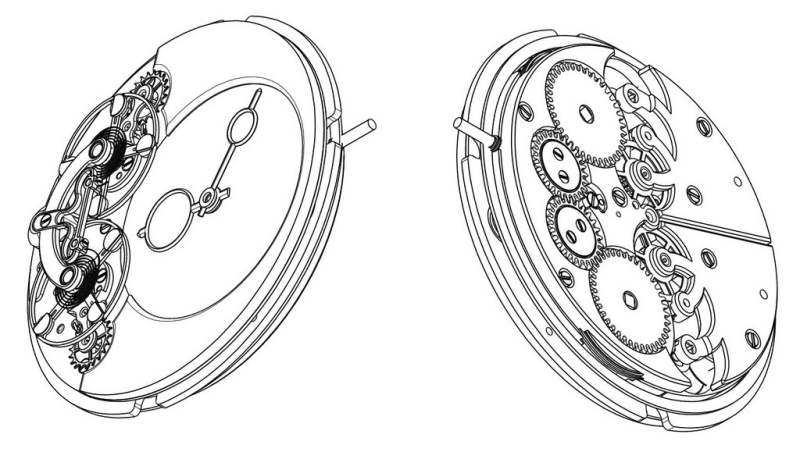

It is going from the mechanical design to "the real thing"

I have been working on this design on and off for the last 2 years or so.
Its time has come.
Throw on the milling machine and GO!

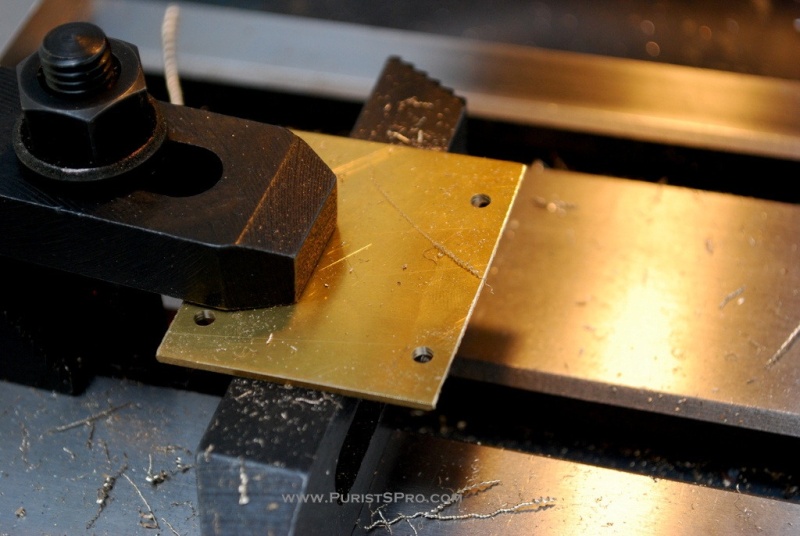

Raw material, brass

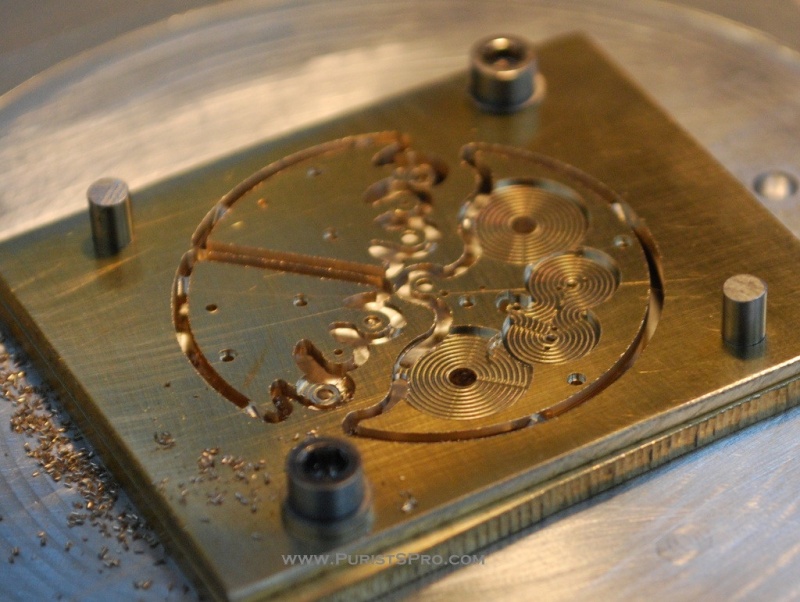

The bridges, dial side

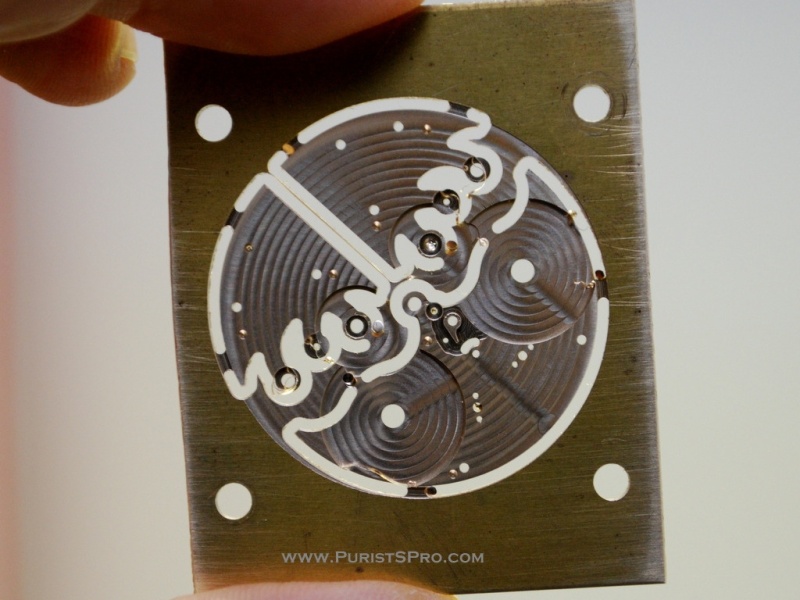

Bridge side

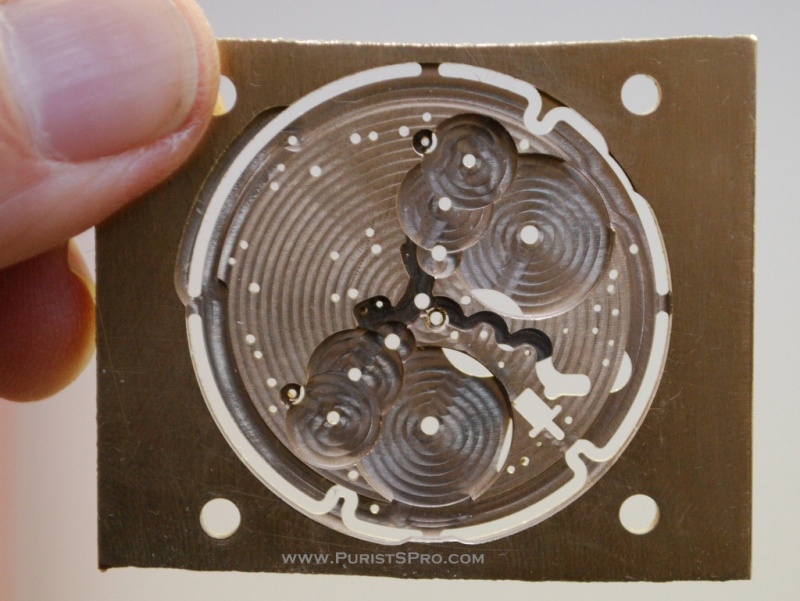

The plate, bridge side

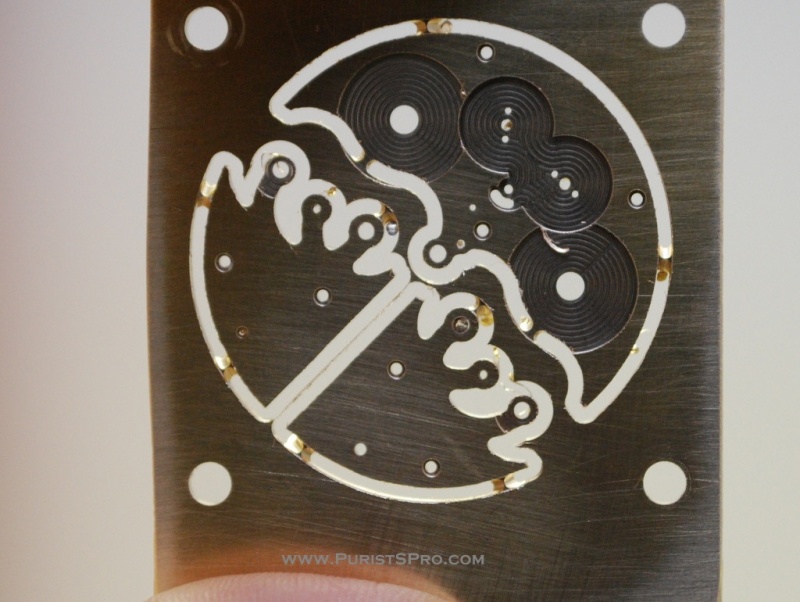

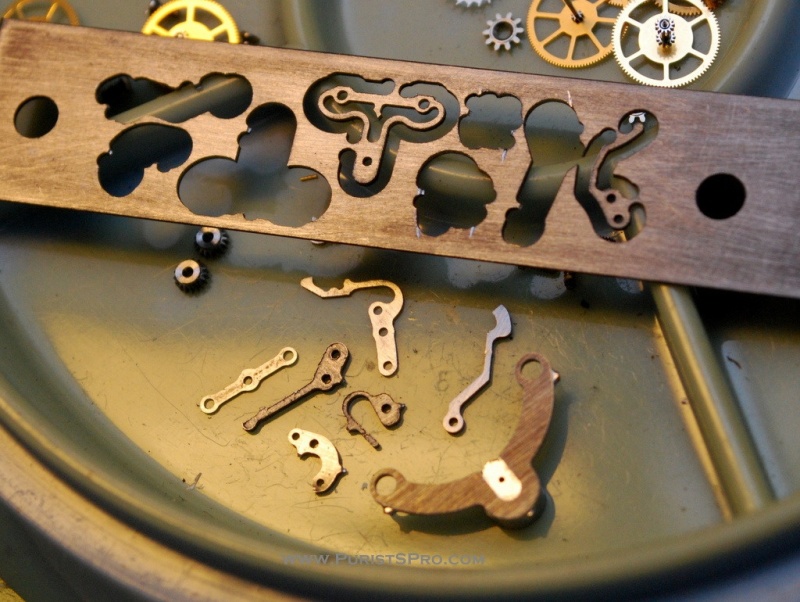

Steel parts milled out of 0.25mm and 0.5mm carbon steel

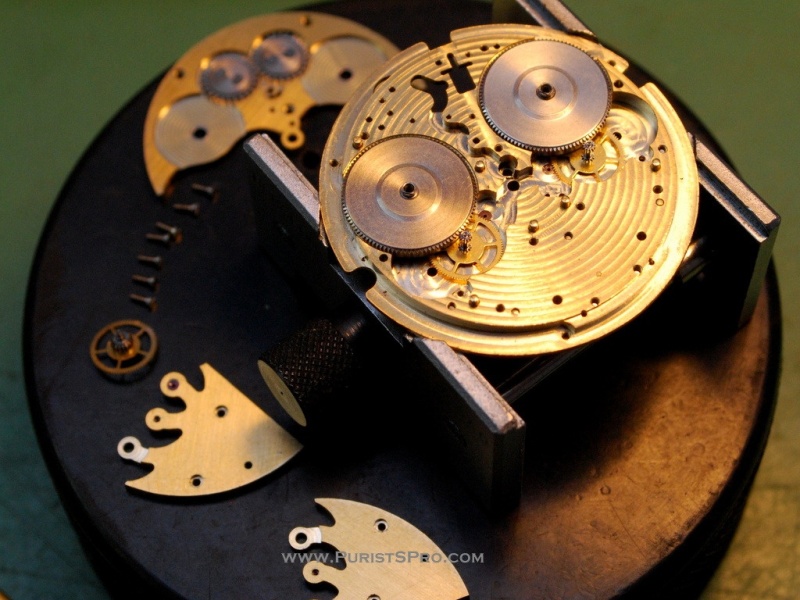

First attempts at placing parts

The fun will continue !
Don

Key Points from the Discussion

The author's watch design features two escapements, with one connected to the hands and the second intended for resonance or synchronization, an original approach in watchmaking.
DonCorson confirms the analysis of his resonance watch design and refers to his previous detailed reports on the WatchTech forum, where he has explored the theoretical aspects of resonance.
The use of CNC machinery helps reduce 'stupid mistakes' in the manufacturing process, although the author notes that errors are still possible even with advanced tools.
A watchmaker expresses excitement and appreciation for the detailed, behind-the-scenes look into the horological creation process, acknowledging the rarity of such an invitation.
A forum member, despite primarily using manual machines, feels inspired to try CNC after seeing the quality of the author's results.
Despite the theoretical exploration, skepticism remains about the practical effectiveness of resonance in a wristwatch, with anticipation for real-life results.

The Discussion

amanico

Dec 7, 2013

Can't wait to see the final result, Don.

DonCorson

Dec 7, 2013

Patience... and more patience :) [nt]

Darren

Dec 7, 2013

This is very cool.

Looking forward to following your progress on what appears to be a rather interesting timepiece. Thanks for posting. Darren

bulentvural93

Dec 7, 2013

Hi Don,You're actually making a dream for every horology enthusiast come true.

No words to say more but curious about the rest of the operation. With Admiration and respect to your work. Best, Bülent...

Ondrej Berkus

Dec 7, 2013

Extremely cool

I absolutely adore your in-progress pictures and can't wait to see more. One question - is your mill cnc controlled or do you mill by hand? Ondrej

DonCorson

Dec 7, 2013

Milling

I have moved up to CNC, I make less stupid mistakes that way. But even with CNC it is possible to make stupid mistakes. :) Don
