Automotive Aerodynamics: Boxy Design Benefits

KMII · 2026-03-07T07:09:46Z

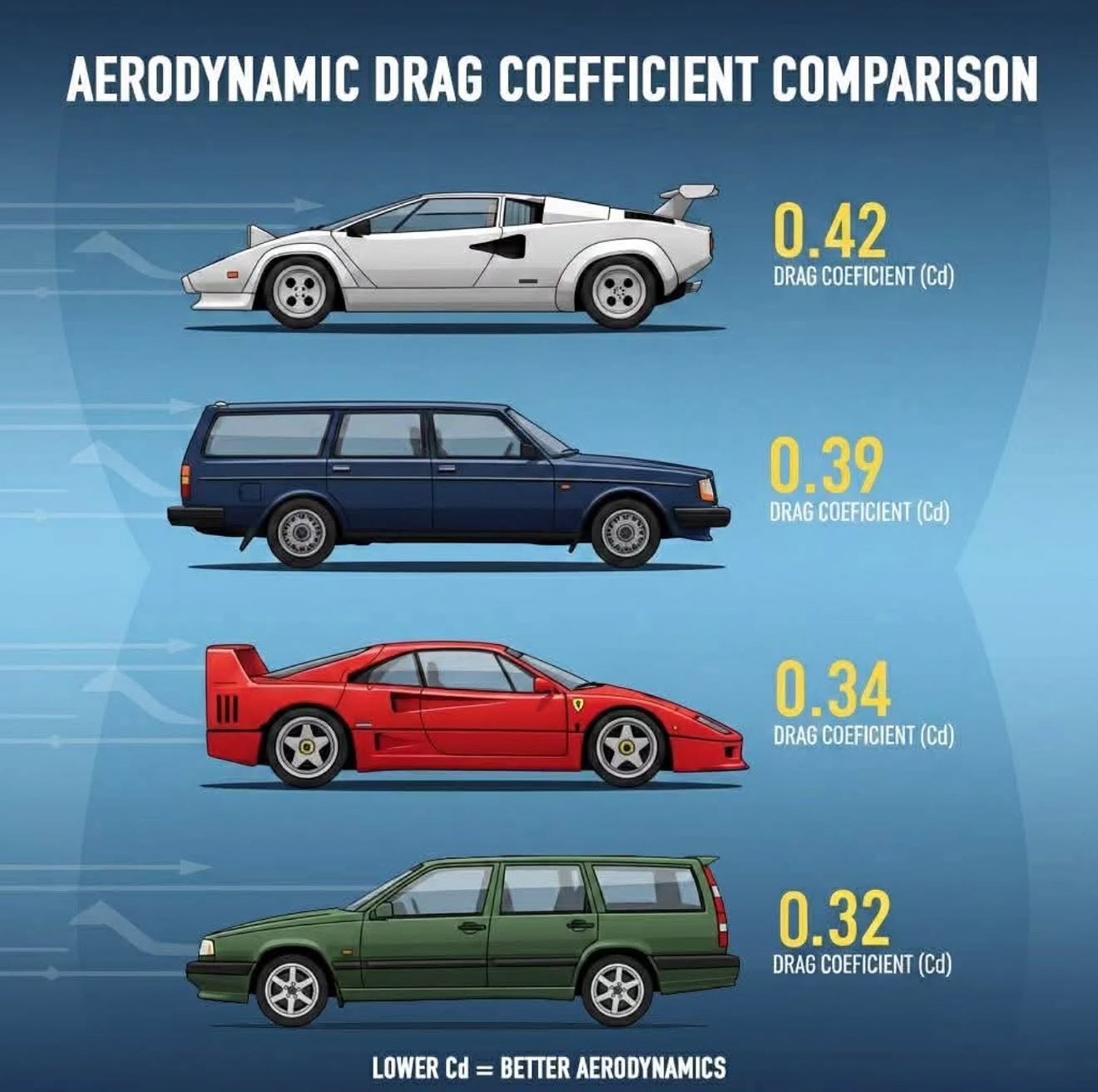

Unpack the aerodynamics of the Volvo 850 vs. sports cars. WatchProSite collectors debate drag coefficient, frontal area, and tire width's impact on efficiency.

KMII's original post challenges conventional wisdom about automotive aerodynamics, sparking a lively discussion among WatchProSite members. By juxtaposing the iconic 'boxy' Volvo 850 with sleek sports cars, KMII invites readers to reconsider how drag coefficient (Cd) is truly measured and interpreted. This article delves into the nuances of aerodynamic efficiency, moving beyond surface-level assumptions to explore the underlying physics that dictate a vehicle's performance and fuel economy.

Key Points from the Discussion

The drag coefficient (Cd) alone is insufficient for comparing aerodynamic efficiency; it must be multiplied by the cross-sectional area to determine the 'drag area.' A boxy car with a lower Cd but larger frontal area might have a similar or even higher drag area than a sports car with a higher Cd but smaller frontal area.
Tire width significantly contributes to the overall coefficient of drag and frontal area. Sports cars often have unusually wide tires compared to a Volvo, impacting their overall aerodynamic performance.
Many sports cars generate substantial drag not only due to their Cw (which is often high for cooling and downforce) but also because their considerable width results in a large frontal area.
Factors like 'wet' surface area (skin friction) and all surface joins and gaps, such as doors, window frames, and movable covers, contribute to an increase in the overall drag coefficient.
The Volvo 850, despite its boxy appearance, can have a drag area comparable to some sports cars like the Lamborghini Countach when considering both its Cd and cross-sectional area. For example, a Volvo with a Cd of 0.32 and a cross-sectional area of 2.5 sqm yields a drag area of 0.8 sqm, close to a Countach's 0.84 sqm (Cd 0.42).
The discussion highlights a personal connection to the featured vehicles, with one contributor noting that both the Italian sports cars and Swedish station wagons were childhood dream cars.

The Discussion

patrick_y

Mar 7, 2026

Very true! On the surface, it presents a fact that is probably very surprising to most people because 99% of people probably don't know how aerodynamics work and how Cd is measured. Take for instance: tire width is a significant contributor of coefficient of drag. The Lamborghini and Ferrari have unusually wide tires. Whereas the Volvo is probably a 225mm wide tire...

chmandaue

Mar 7, 2026

The drag coefficient (Cd) number has to be multiplied by the cross-sectional area. The Volvo's Cd has to be multiplied by its (larger) cross-sectional area, whereas the sports car would seem to have a smaller cross-sectional area. Therefore, the boxy car is not necessarily a more fuel-efficient car. It depends on your basis of comparison. If the basis is getting one person from A to B, the sports car might still win out. But for getting 4 adults and a dog, the Volvo wins, paws down. But we kind

S F

Mar 7, 2026

Shouldn’t have assumed…

chmandaue

Mar 7, 2026

The key stat is the the drag coefficient times the cross sectional area. Thats called the “drag area” That Volvo might have a Cd of 0.32 but its drag area is around 0.32 x 2.5 = 0.8 sqm The Countach has a Cd of 0.42 but due to a smaller cross section, it has a drag area of 0.84 sqm, not far from the Volvo. The other sports car (F40?) is almost certainly below 0.8 sqm drag area. Bottom line: compare drag areas, not bare Cd

KMII

Mar 7, 2026

The tire width will also impact the frontal area that you need to multiply with the Cw for the drag 😊👍🏻

KMII

Mar 7, 2026

The Volvos are a tad taller but also much narrower and have drastically narrower tires, which also impact the frontal area 👍🏻
